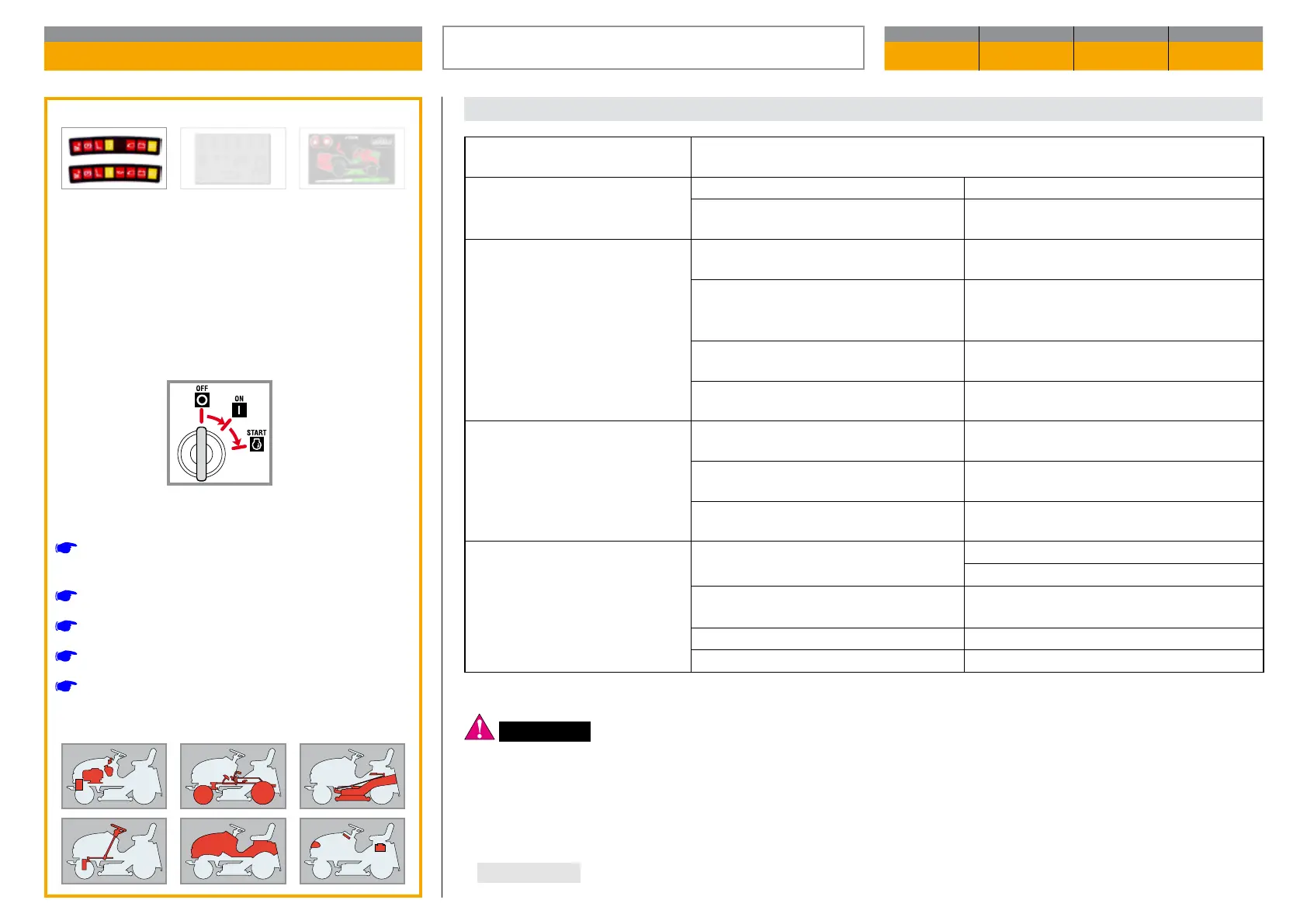

WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units
1. Activation of the self-re-
setting protection 1) ....
a) ... on inserting the key in
position «ON»
Battery terminal crossed Check the battery connections
Short circuit to earth
Check the connectors and wiring of the
microswitches
b) ... in position «START»
or after a few seconds use,
following an attempt
at starting with outside
means:
Sulphated battery (it no longer ac-
cepts recharging)
Replace the battery
Faulty or wet electronic card
Check and dry with low pressure tepid
air (hair-dryer)
Disconnected or missing battery
Reconnect the battery. It must always be
connected
Battery terminals corroded or with
poor contact
Check and clean the connections
c) ... after several minutes’
use:
Poor or missing earth contact on the
charge regulator
Check the earth connections and the
screws fastening the regulator
Overvoltage from a malfunction in
the regulator
Check the recharge circuit
Battery disconnected or faulty dur-
ing use
Check the battery or wiring
2. The dashboard remains
o with the key in posi-
tion «ON»
The battery is not supplying the card
Check the connection cables
Check the battery’s condition
Battery or card not earthed to frame Check and put right
10 A fuse blown Replace fuse (10 A)
Battery terminal crossed Check connections
CHAPTER REVISION FROM ... PAGE
7.1 0 2018 1 of 3
TROUBLESHOOTING OF THE ELECTRICAL
SYSTEM
Validity
General informations
In the following some of the problems connected
to the malfunctioning of the electrical system are
shown, with their probable cause and the reme
dial action to be taken.
Should the problem continue after the appro
priate checks, seek assistance from your lo cal
Service Centre.
Related topics
[
7.2] Ttable for the cutting in of the safety de-
vices
[
7.3] Safety microswitches operation check
[
7.6] Starter relay operation check
[
7.21] Recharge circuit check
[
7.22] Maintenance of the sealed battery
PROBLEM CAUSE REMEDY
1)
The cutting in of the self-resetting protection of the electronic card is signalled by a beep, except in cases where the
battery is missing, at or with the terminal crossed. The signal stops when the key is returned to position «OFF»; then
wait a few seconds before returning to position «ON».
IMPORTANT Faulty electronic cards must always be replaced without trying to repair them or re place single
components.
WARNING! The selfsetting guard reaches very high temperatures (around 180 °C) which are to be consid
ered normal. Similarly, there might be some smoke inside the box which is due to the overheating of the powder
inside. Do not touch this component of the circuit board until it has cooled down.
