WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units

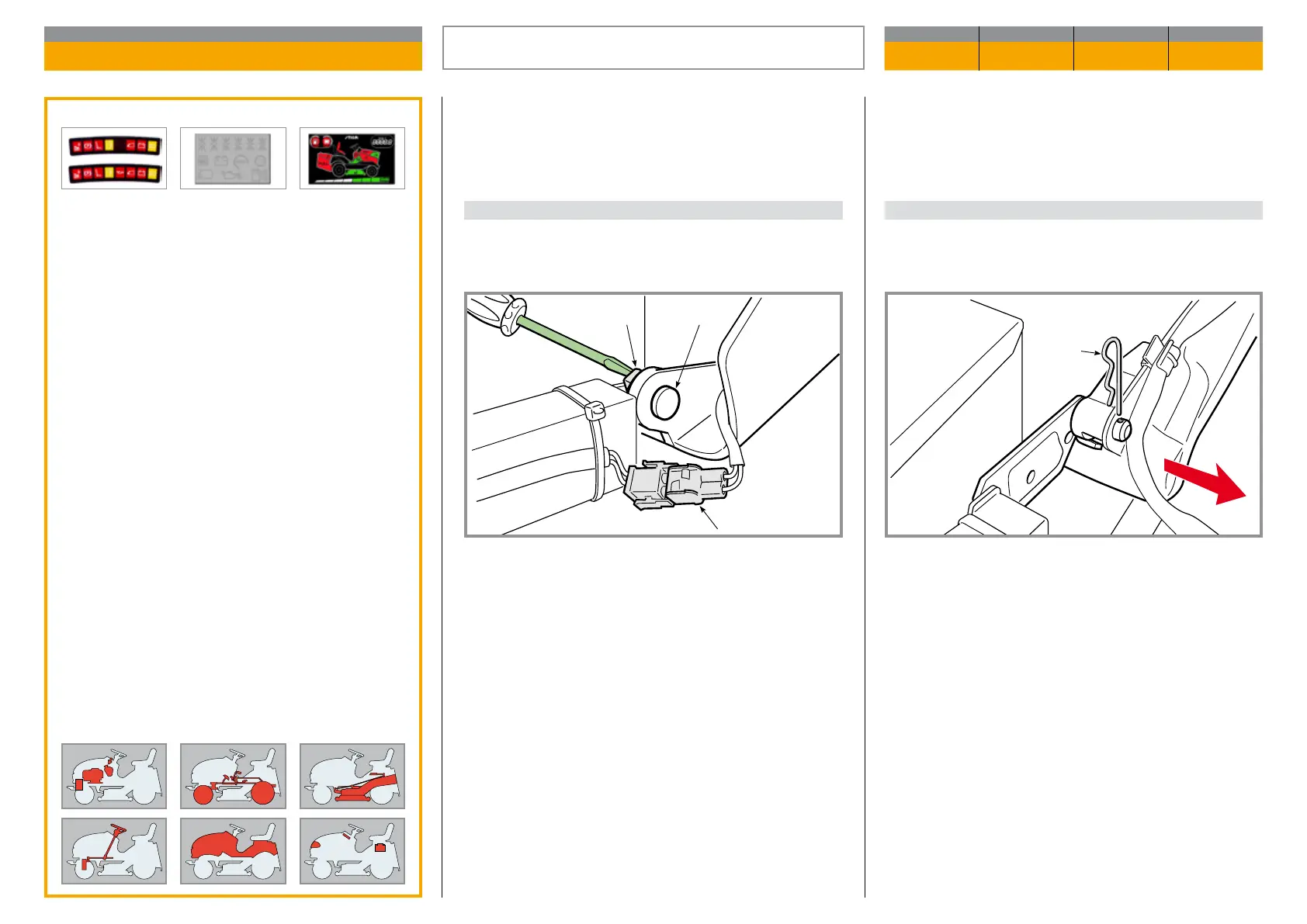

B) Fixing with a split pin
Take out the split pin (4) from the right-hand side and
remove the hood by moving it to the right.
To remove the hood, disconnect the connector to the
lights (1).
The hood can be secured in two ways.
A) Fixing with springs
Unhook the two fastener springs (2) and pull out the
pins (3).
REMOVAL OF FRONT HOOD
CHAPTER REVISION FROM ... PAGE
5.1 0 2018 1 of 1
Validity
General informations
The removal of the front hood gives greater ac
ces sibility to:
– the engine and its accessories
– the silencer and protection devices
