16 034, 036, 036 QS
The brake lever must not move. If
it does, adjust play - see 4.5.4
Reassemble in the reverse
sequence.

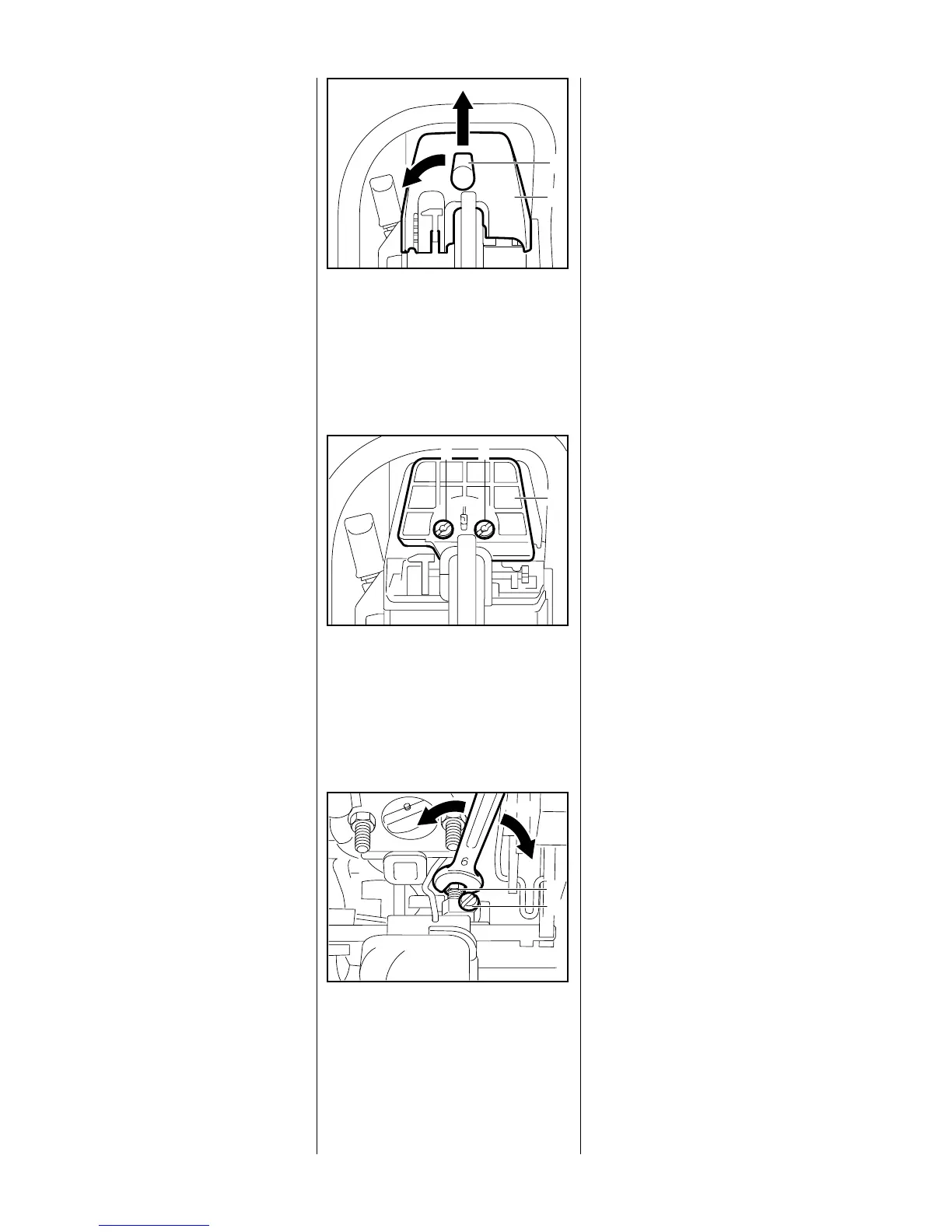

 Open twist lock (1) and lift away
the carburetor box cover (2)
vertically.
VA
148RA064
1
2
 Release and unscrew slotted
nuts (1).
 Remove the air filter (2).
VA
148RA084
2
11
 Loosen the self-tapping
screw (1).
 Use a 6mm open-end wrench to
adjust play with nut (2).
VA
148RA085
1
2
Turn wrench to right to reduce
play.
Turn wrench to left to increase
play.
 Lock the setting with self-tapping
screw (1).
Reassemble in the reverse
sequence.
4.5.4 Adjusting Play
