44 034, 036, 036 QS
I

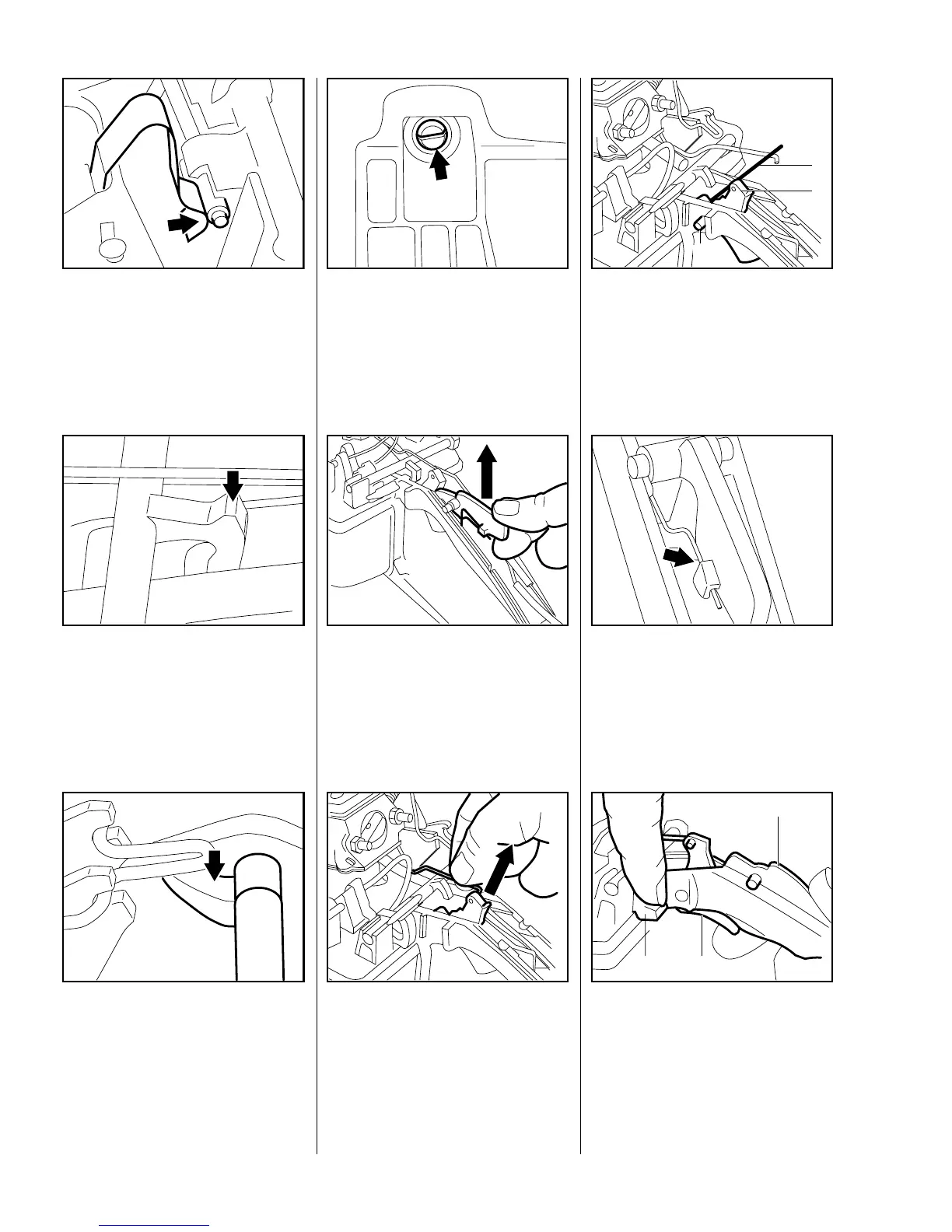

In the "STOP" position the
connector sleeve moves against the
contact spring (arrow).
VA
138RA096
The molded lever on the center of
the switch shaft operates the throttle
trigger when the "START" and
"CHOKE" positions are selected:
VA
138RA117
The choke shutter actuating lever is
molded to the right-hand end of the
switch shaft. It closes the choke
shutter when the Master Control
lever is set to "CHOKE".
VA
138RA118
– Remove the air filter - see 12.1
 Take out the handle molding
fastening screw. Lift away the
handle molding.
VA
138RA120
– Move Master Control lever to
"RUN" position.
 Pull the throttle interlock lever out
of its seat.
VA
138RA121
 Detach throttle rod from the
trigger.
VA
138RA122
 Use a 5 mm drift to drive out the
cylindrical pin (3). Take the
throttle trigger (2) and torsion
spring (1) out of the handle.
Install in the reverse sequence.
VA
138RA123
3
2
1
Note:
The torsion spring must be under
the interlock lever and locate in the
notch (arrow).
VA
138RA128
 Press the interlock lever (1)
down, pull the throttle trigger (2)
up and move the Master Control
lever (3) to "CHOKE".
VA
138RA124
3 2
1
9.2 Throttle Trigger/Interlock Lever (034, 036)
