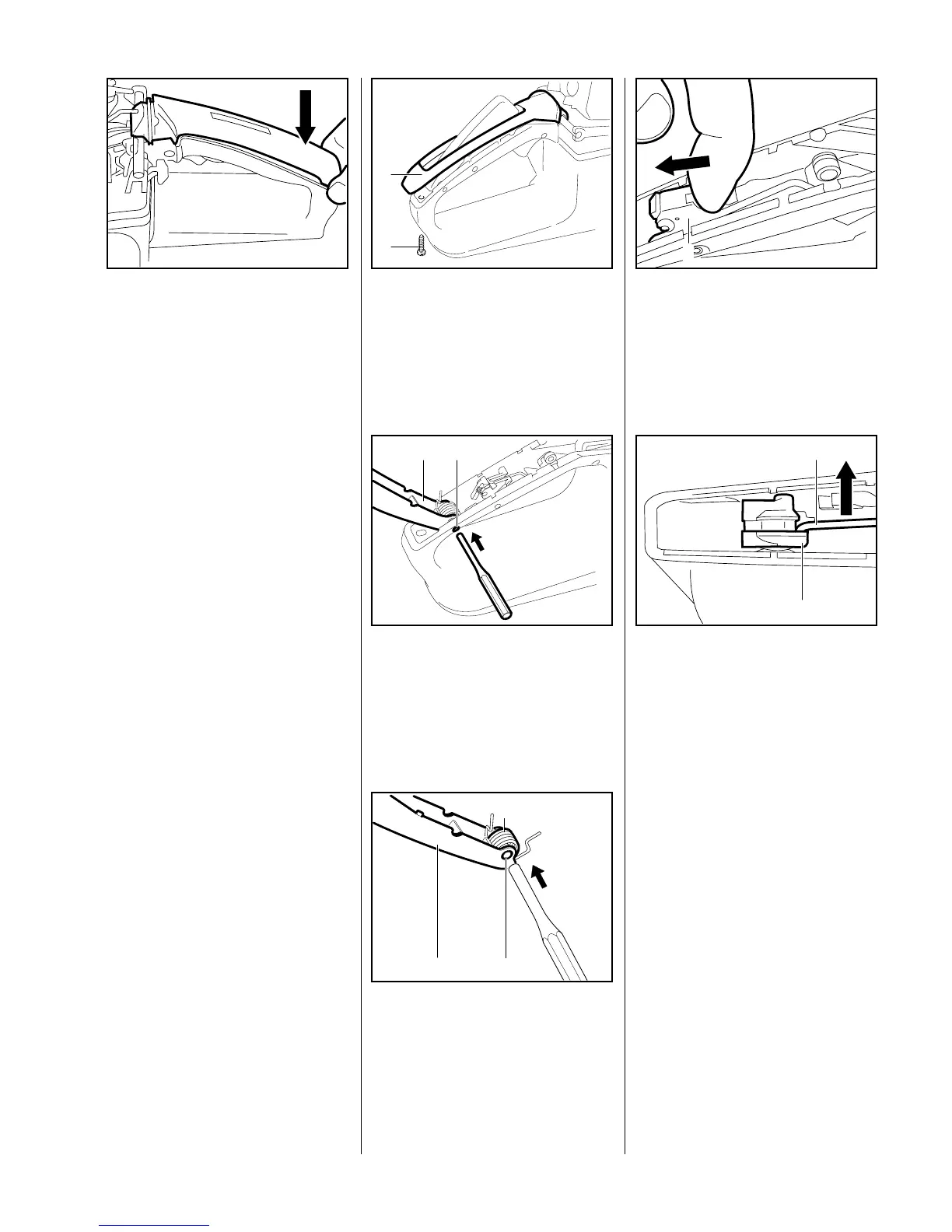

 Fit the handle molding so that the
lug at its front end engages
properly under the seat on the
tank housing.
– Fit handle molding fastening
screw (see "Tightening
Torques").
VA
138RA125
– Remove the air filter - see 12.1.
 Unscrew fastening screw (1)
from handle molding (2). Lift
away the handle molding.
148RA001
KV
1
2
 Use a 3 mm drift to drive the
needle roller (2) out of the
interlock lever (1). Remove the
lever.
VA
148RA099
21
 Use a 4.5 mm drift to drive the
bushing (1) out of the interlock
lever (2) and then remove the
torsion spring (3).
Install in the reverse sequence.
3
2
1
148RA100
VA
 To remove the switch lever (1),
swing it back (arrow).
VA
148RA054
1
 Disconnect brake cable (1) from
switch lever (2).
– Use a 3 mm drift to drive the
needle roller out of the switch.
– Take out the switch lever.
VA
148RA055
1
2
Install in the reverse sequence.
9.3 Throttle Trigger/Interlock Lever/Switch Lever (036 QS)
