29MS 270, MS 280

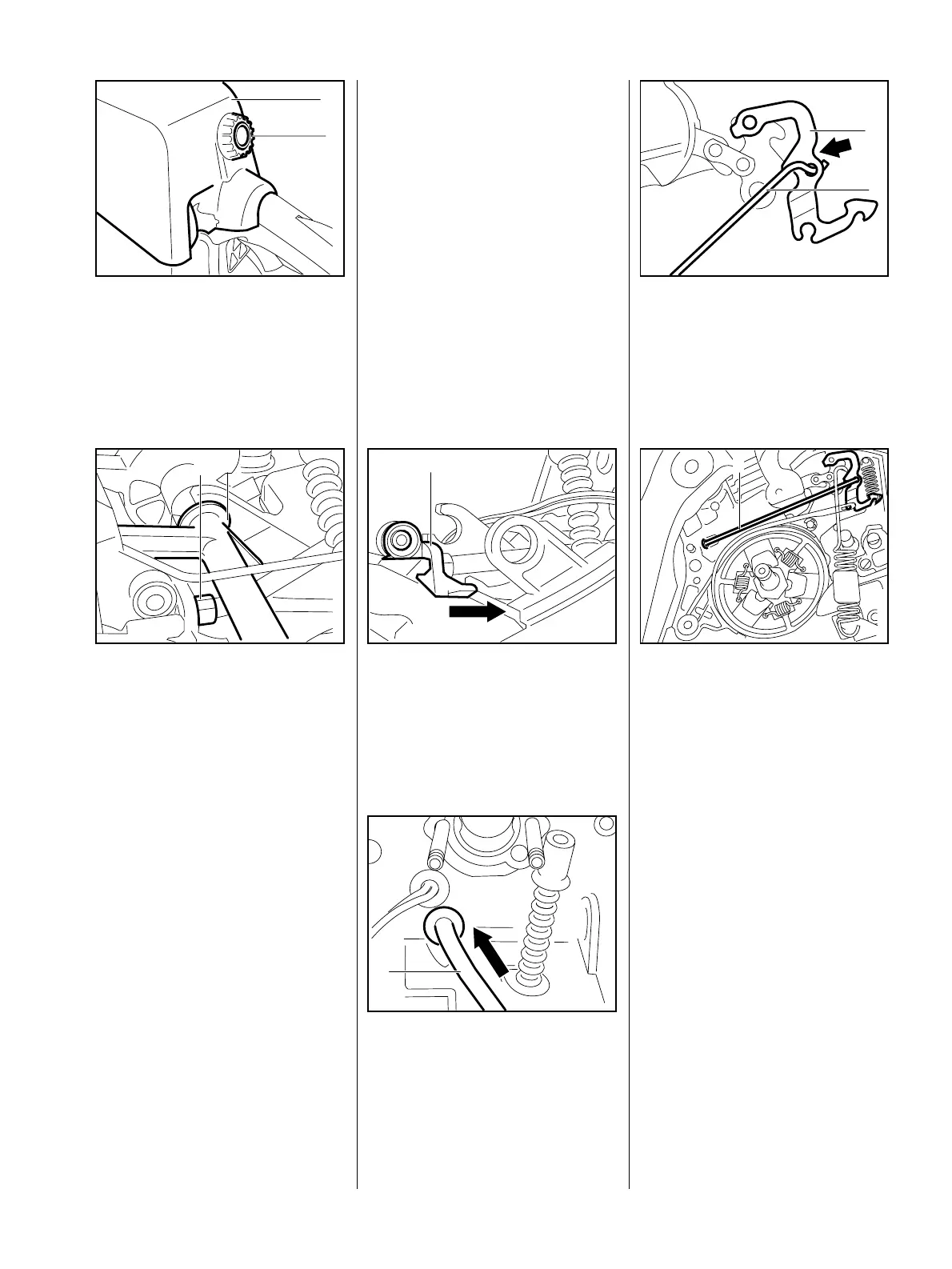

 Release twist lock (1) and
lift away the carburetor box
cover (2).
VA
146RA002
2
1
 Use a 6mm open-end wrench to
adjust play on nut (1).
Turn wrench to right to reduce
play.
Turn wrench to left to increase
play.
VA
146RA038
2
1
Remove the switch shaft (2),
see 10.1, if it gets in the way of
adjustments.
Reassemble in the reverse
sequence.
Machines with QuickStop Super
have an additional brake cable.
– Remove the switch shaft
– see 10.1.
– Remove brake cable from switch
lever – see 10.2.2.
– Separate crankcase and tank
housing – see 9.2.2.
 Ease the support (1) upwards
and push it in the direction of the
cylinder.
VA
146RA177
1
 Pull the cable (1) out of the tank
housing in the direction of the
cylinder.
– Remove the brake spring
– see 5.5.1.
VA
146RA175
1
 Disconnect coasting brake
cable (1) from the brake lever (2).
VA
148RA075
2
1
 Pull the brake cable (1) out of the
crankcase in the direction of the
rear handle.
Reassemble in the reverse
sequence.
VA
146RA178
1
5.5.4 Adjusting Play 5.5.5 Brake Cable
