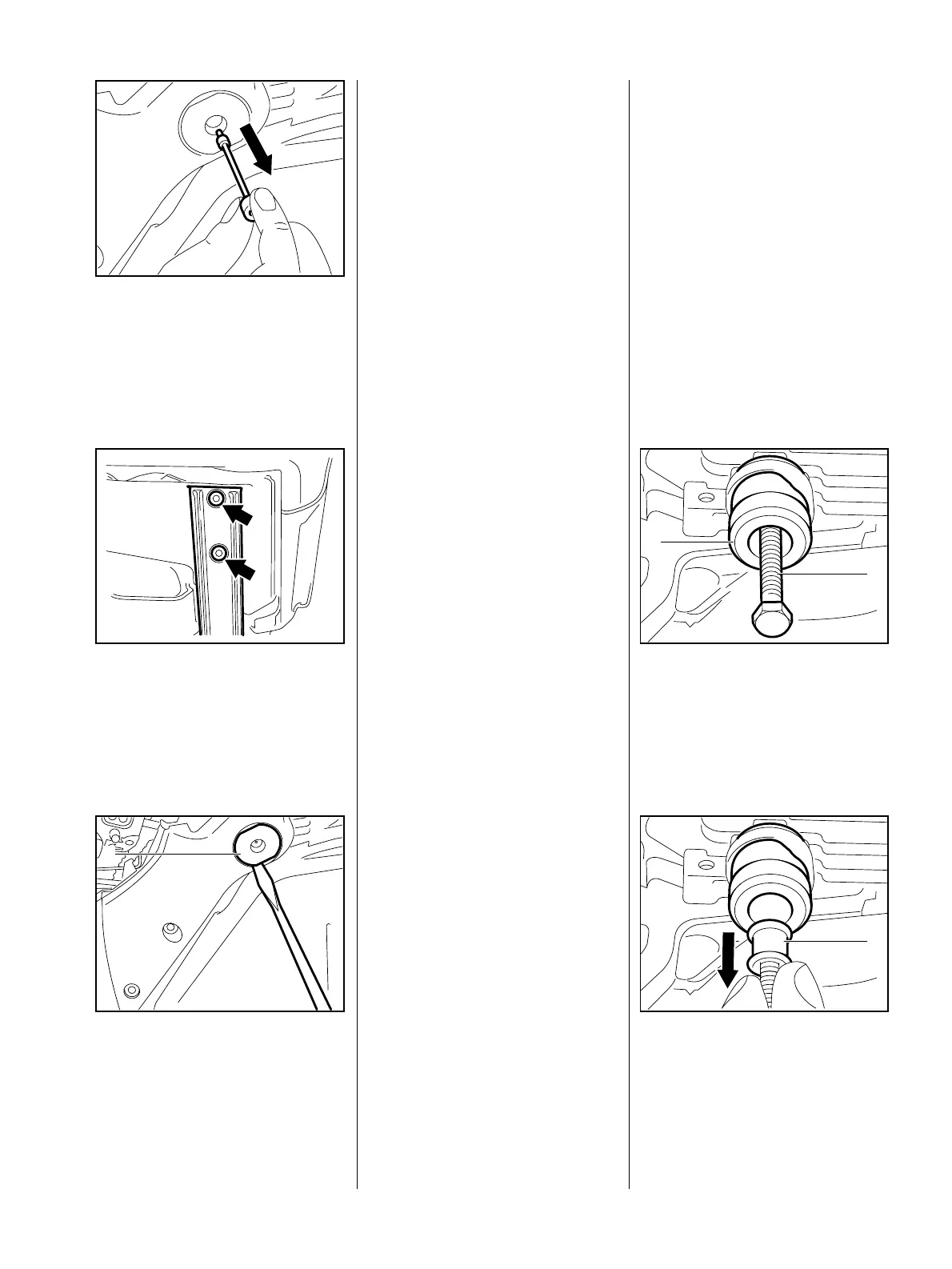

61MS 270, MS 280

 Push the retainer through the

handlebar to the outside and

remove.

146RA106

 Take out the screws (arrows).

138RA207

 Pry plug (1) out of the handlebar

to expose the annular buffer.

– Pry the annular buffer out of the

handlebar.

Reassemble in the reverse

sequence.

146RA107

Annular rubber buffers and a spring

are installed between the tank

housing and crankcase to minimize

vibrations. Damaged annular

buffers must always be replaced.

Removing

– Remove the handlebar – see 9.1.

 Fit an M6 screw (1) in the

bushing in the annular buffer (2).

146RA217

 Use the screw to pull out the

bushing (1).

– Take the screw out of the

bushing.

146RA218

9.2 Replacing Annular

Buffers

9.2.1 Crankcase
