66 MS 270, MS 280

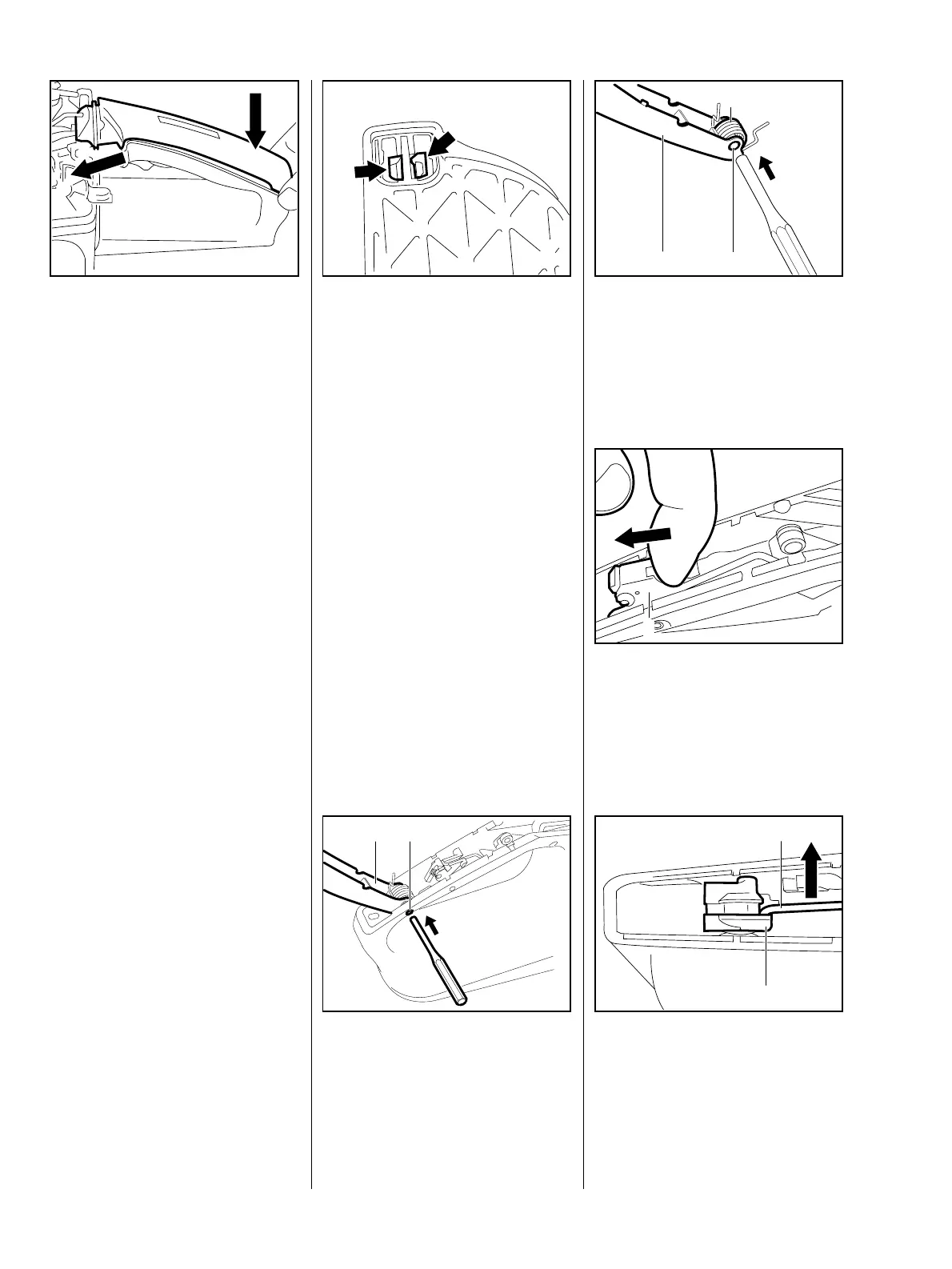

Fit the handle molding so that the
lugs engage the recesses.
Press down the end of the handle
molding until the retainers snap
into position in the handle
housing.
VA
146RA122
– Remove the carburetor box cover
– see 6.4.
Push the two retainers (arrows)
on the underside of the hand
guard apart and remove the
handle molding upwards.
VA
146RA117
Ø
Use a 3 mm drift to drive the
needle roller (2) out of the
interlock lever (1). Remove the
interlock lever.
VA
148RA099
21
Use a 4.5 mm drift to drive the
bushing (1) out of the interlock
lever (2) and then remove the
torsion spring (3).
3
2
1
148RA100
VA
To remove the switch lever (1), tilt
it back.
VA
148RA054
1
Disconnect brake cable (1) from
switch lever (2).
– Use a 3 mm drift to drive the
needle roller out of the switch
lever.
VA
148RA055
1
2
10.2.2 Machines with
QuickStop Super
