59MS 270, MS 280

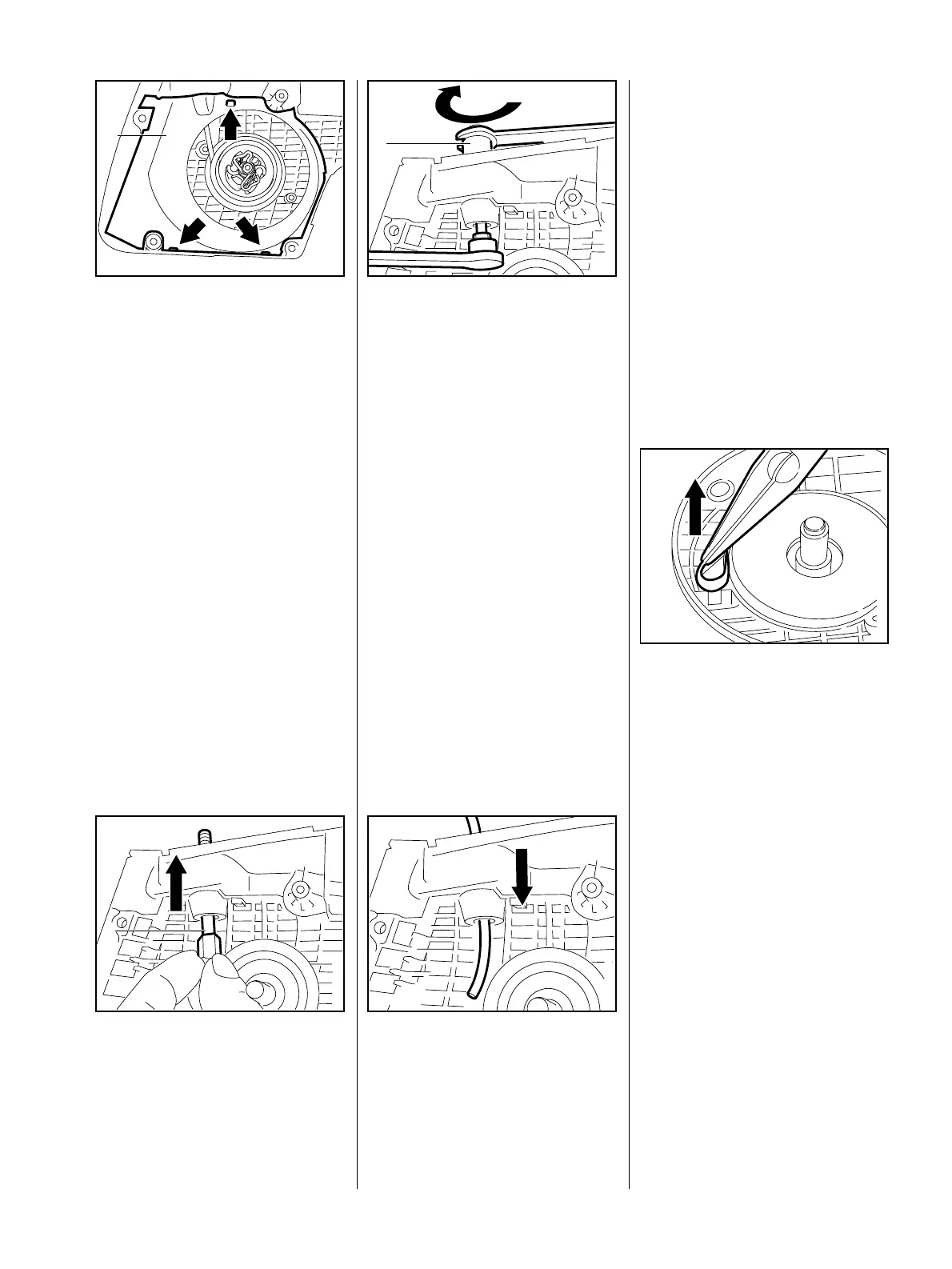

 If necessary, unclip segment (1)
from upper retainer in the fan
cover and take it out of the lower
retainers.
– Use a suitable tool to pry the
damaged bush out of the fan
cover.
VA
146RA090
1
Installing the rope bush
– Place the new bush in its seat in
the fan cover.
 Insert the screw spindle (1) of the
installing tool 0000 890 2201
through the bush from inside the
fan cover.
1
VA
146RA101
– Fit the thrust sleeve (1), tapered
end first, and the hex nut.
 Tighten down the hex nut until the
bush is firmly seated.
The installing tool flares the lower
end of the rope bush.
1
VA
146RA102
– Remove the installing tool.
 Thread the starter rope through
the guide bush from outside and
fit it on the rope rotor – see 8.5.
– Install the rope rotor – see 8.4.
VA
146RA097
Troubleshooting chart – see 4.2.
The replacement spring comes
ready for installation and is secured
in a frame.
Removing
Important:
Wear a face shield and work gloves.
– Remove the rope rotor – see 8.4.
 Use suitable pliers to grip the
outer spring loop and lift it up.
– Take the rewind spring out of the
fan cover.
– Remove any remaining pieces of
spring from the fan housing and
VA
138RA108
fan cover.
8.7 Replacing the Rewind
Spring
