POWER UNIT 6-3

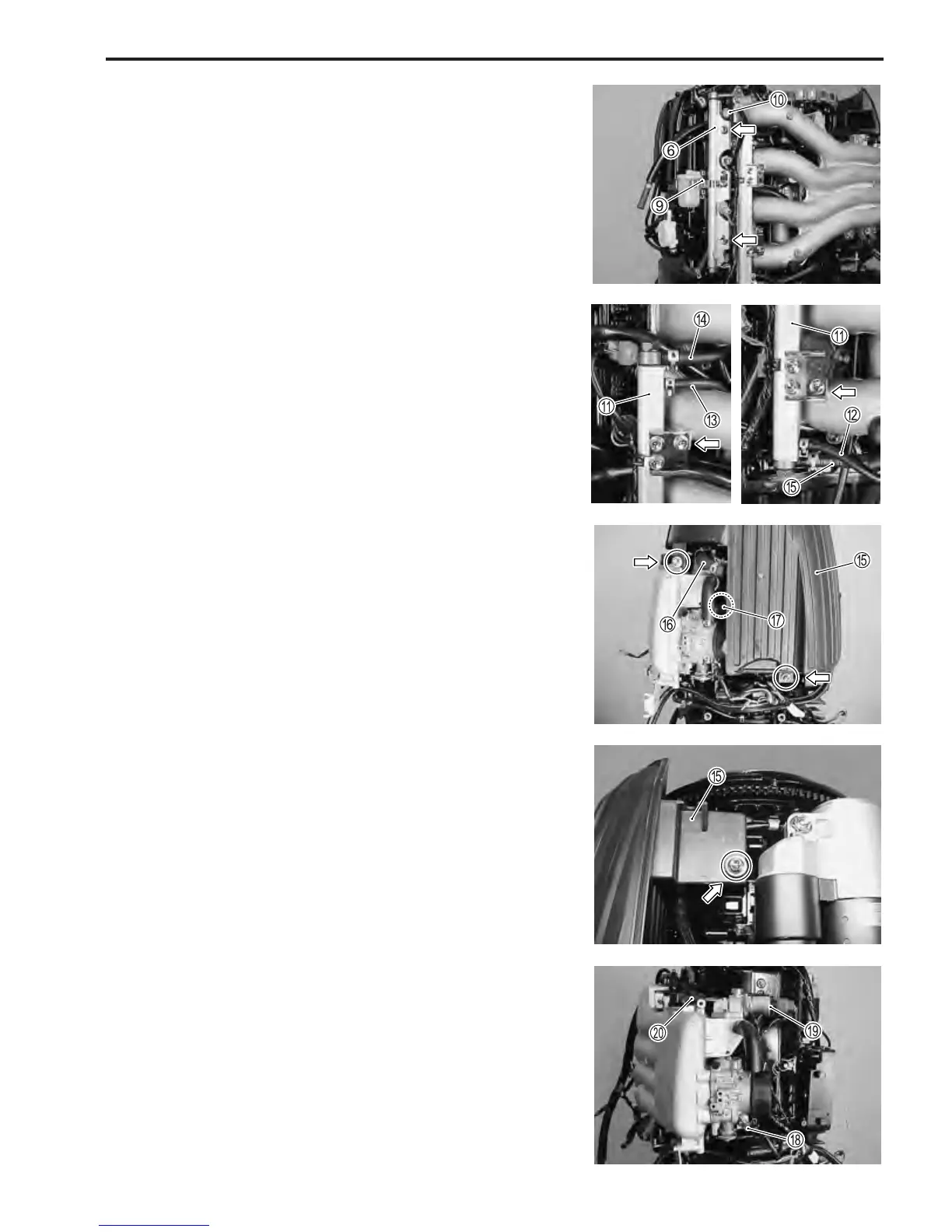

8. Remove bolts and low pressure fuel filter bracket 9.
9. Remove two (2) bolts securing fuel delivery pipe 6, then
remove fuel delivery pipe and all fuel injectors 0.
10. Remove two (2) bolts and fuel return pipe A.
11. Disconnect water inlet hose
B and water outlet hose C
from fuel return pipe
.
12. Place a suitable container under fuel return pipe, then dis-
connect fuel inlet hose
D and fuel outlet hose E from fuel
return pipe.
13. Remove three (3) bolts and silencer case E.
14. Disconnect breather hose
F from silencer case.
15. Disconnect IAT sensor connector
G.
16. Disconnect CTP switch connector H.
17. Disconnect IAC valve connector
I.
18. Disconnect MAP sensor connector
J.
