18-26 DF90/115/140 “K8” (’08) MODEL

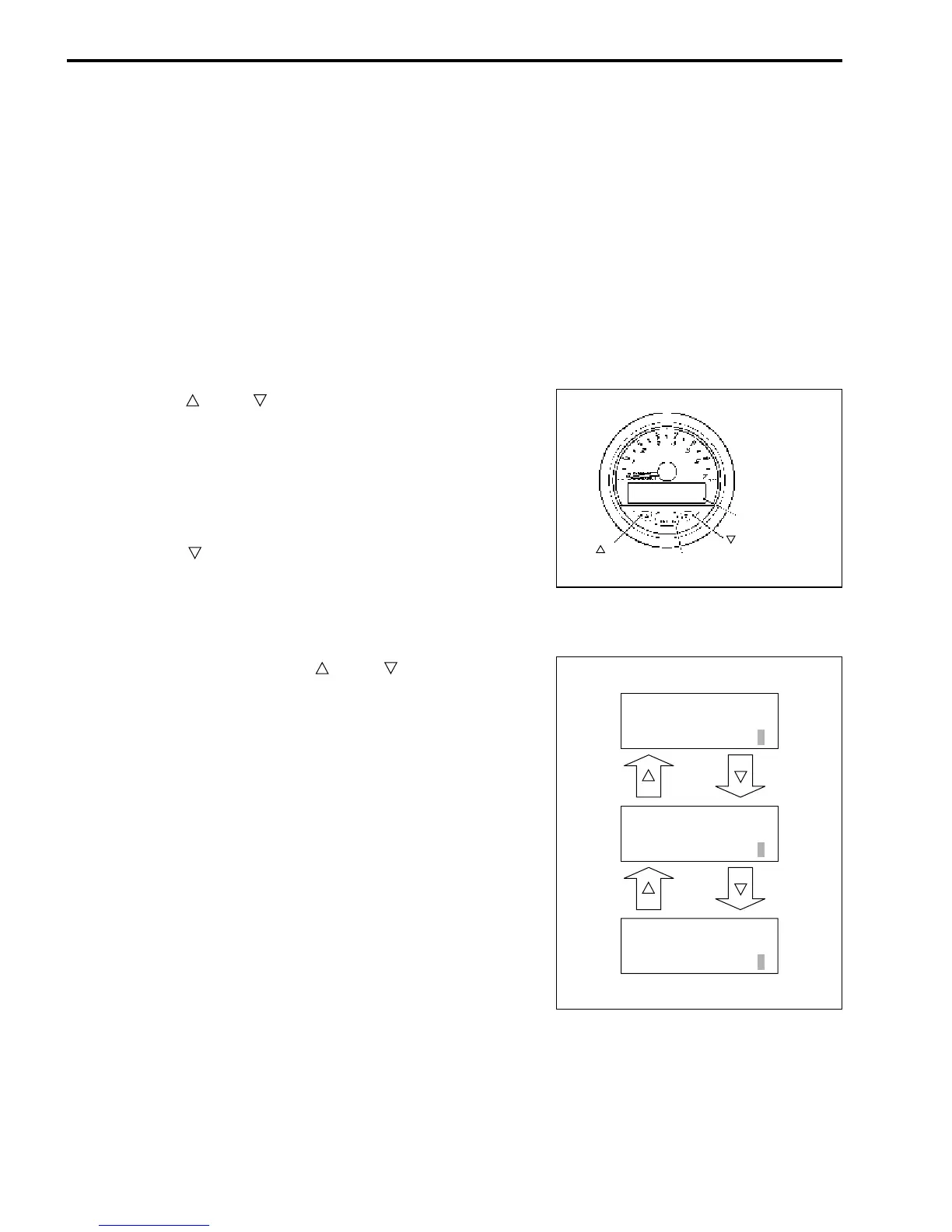

SET-UP OF TACHOMETER
NOTE:
Each tachometer should be set up according to the applicable
engine.
If the setting is incorrect, the tachometer does not function as
required. Default value of the tachometer is “SETUP Eng Posi-
tion 0”.
Set up the tachometer in the following procedure.
(1) Turn ON the ignition switch.
(2) Press the “ ” and “ ” buttons to display “System Setup”
on the LCD.
(3) Press the “ENTER” button.
(4) “SETUP Contrast” is displayed on the LCD.
(5) Press the “ ” button once to display “SETUP Eng Posi-
tion” on the LCD.
(6) By pressing the “ENTER” button, “SETUP Eng Position 0”
is displayed on the LCD.
At this condition, press the “ ” and “ ” buttons. Display
on the LCD is changed as shown in the right figure.
Display the required engine on the LCD and press the
“ENTER” button to define.
Single engine
Set to “Eng Position 0”.
Dual engine
PORT outboard motor: Set to “Eng Position 0”.
STBD outboard motor: Set to “Eng Position 1”.
Triple engine
PORT outboard motor: Set to “Eng Position 0”.
CENTER outboard motor: Set to “Eng Position 1”.
STBD outboard motor: Set to “Eng Position 2”.
NOTE:
By pressing the “ENTER” button for more than 3 seconds, “Sys-
tem Setup” menu returns.
(7) Start the engines in succession from the one on the PORT
side and check that the tachometers work according to the
engines.
ENTER button
Display on
LCD
button
button
SETUP
Eng Position 0
SETUP
Eng Position 2
SETUP
Eng Position 1
