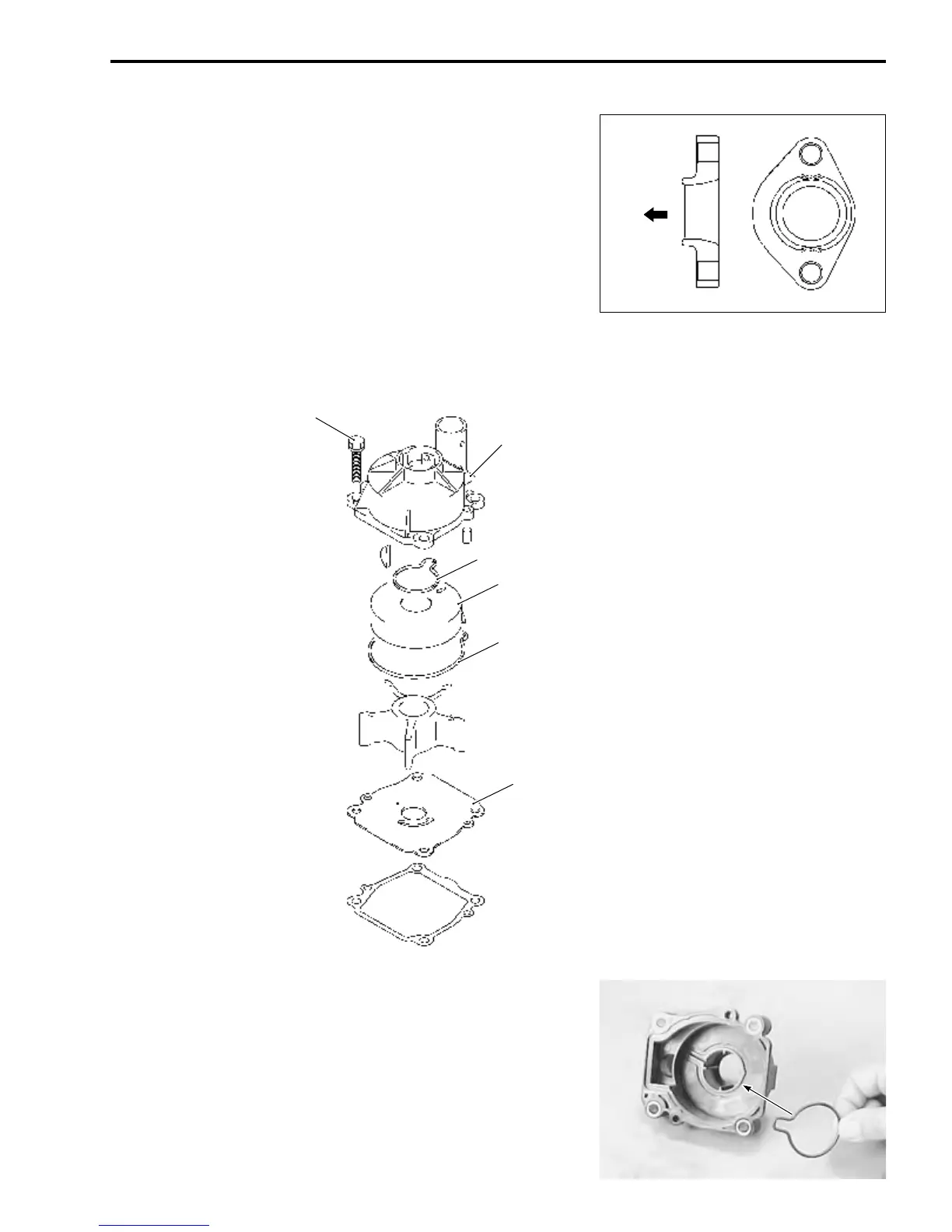

DF90/115/140 “K6” (’06) MODEL
16-31
Install the upper mount cover with rib side to be facing to for-
ward.
WATER PUMP
The water pump and related parts have been changed.
Water Pump Installation
1.
Install the pump case No.2 seal into the water pump case.
F
orward
Bolt
W
ater pump case (Mater
ial:
Resin)
Pump case No
.2 seal
W
ater pump sleev
e
Pump case No
.1 seal
Pump case under panel
522
524
