7-14 MID UNIT

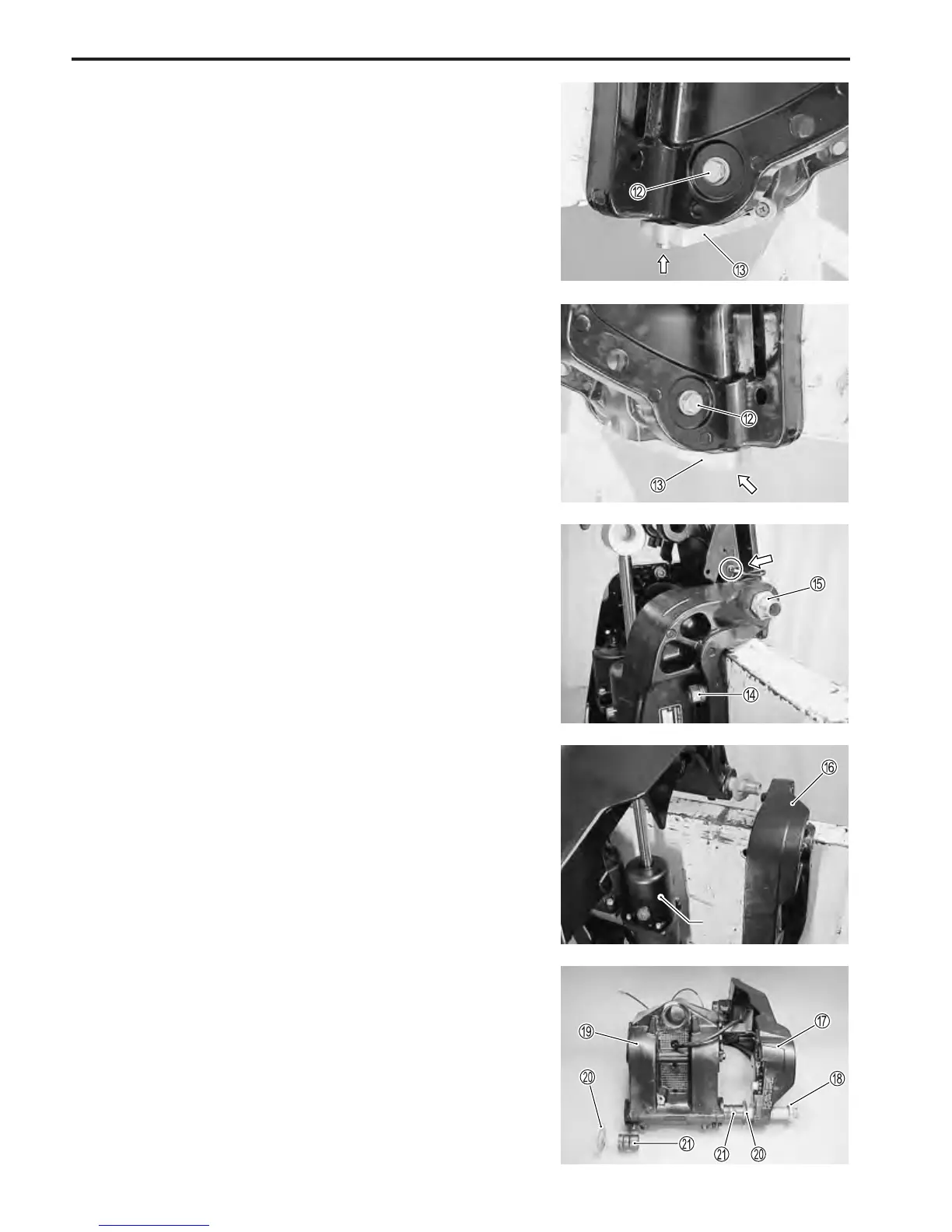

11. Remove STBD motor mounting bolts D.
12. Remove clamp bracket shaft nut E.
9. Remove tilt cylinder lower shaft bolts B.
10. Remove bolts and anode C.
PTT unit
PTT unit
13. Slide STBD clamp bracket F off clamp bracket shaft, then
remove screw and bonding wire from swivel bracket.
14. Remove PTT unit with lower rod.
15. Pull PORT clamp bracket G outward to remove clamp
bracket and bracket shaft H from swivel bracket I.
16. Remove washer J and bushing K from each side of swivel
bracket.
To Next Page
