DF140 “K2” (’02) MODEL 11-19

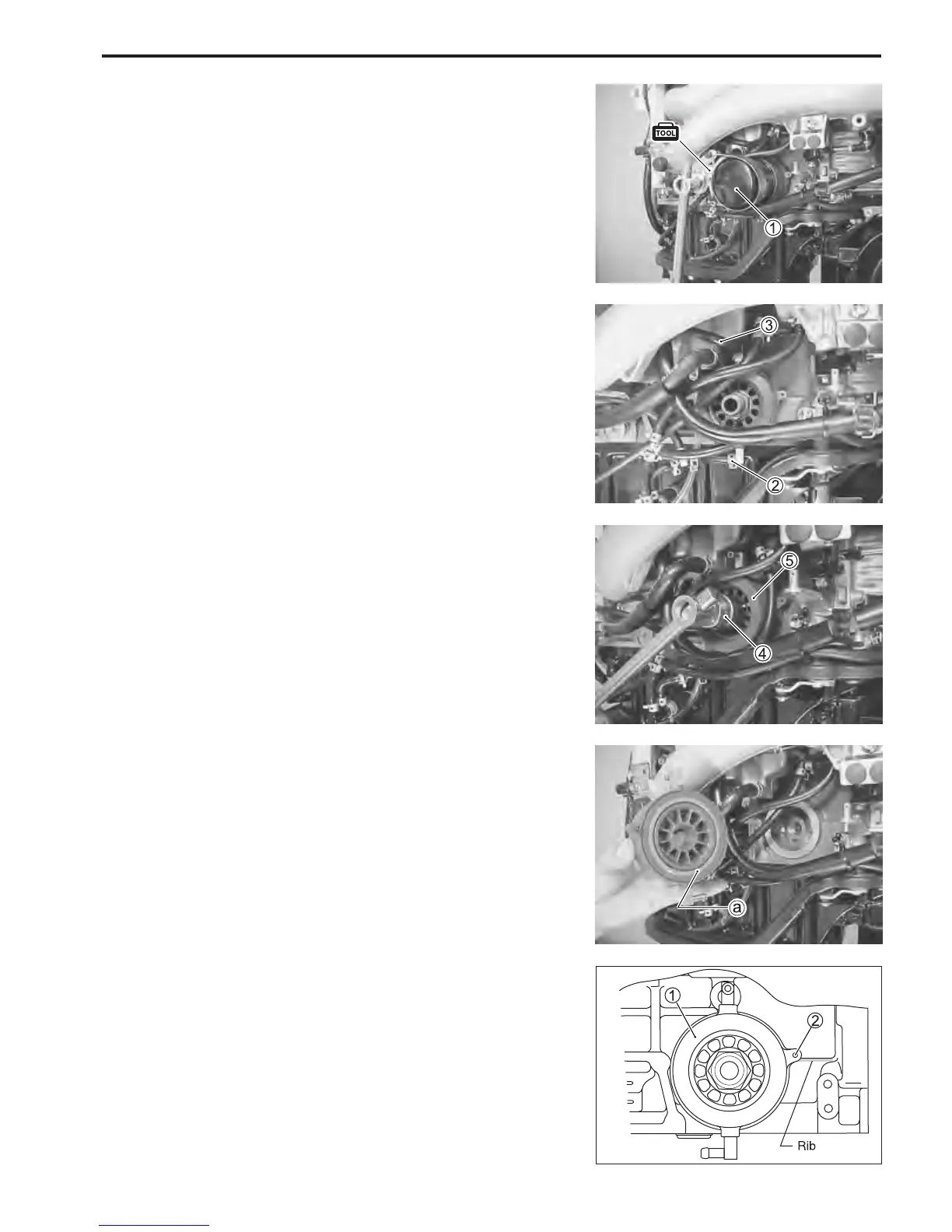

Removal
1. Remove the STBD side lower cover.
2. Using oil filter wrench to loosen the oil filter 1, then remove
engine oil filter and O-ring.
\
09915-47332: Oil filter wrench
3. Disconnect both inlet 2 and outlet 3 water hoses from
engine oil cooler.
4. Loosen oil filter stand 4, then remove the oil filter stand
and engine oil cooler assembly 5.
NOTE:
Use socket wrench to loose the oil filter stand.
Installation
1. Install seal ring a to oil cooler assembly.
2. Place the engine oil cooler assembly 1 to cylinder block.
NOTE:
When installing the oil cooler, put a locating pin
2
at the sur-
face of rib in the cylinder block as shown in the figure.
To Next Page
