16-38

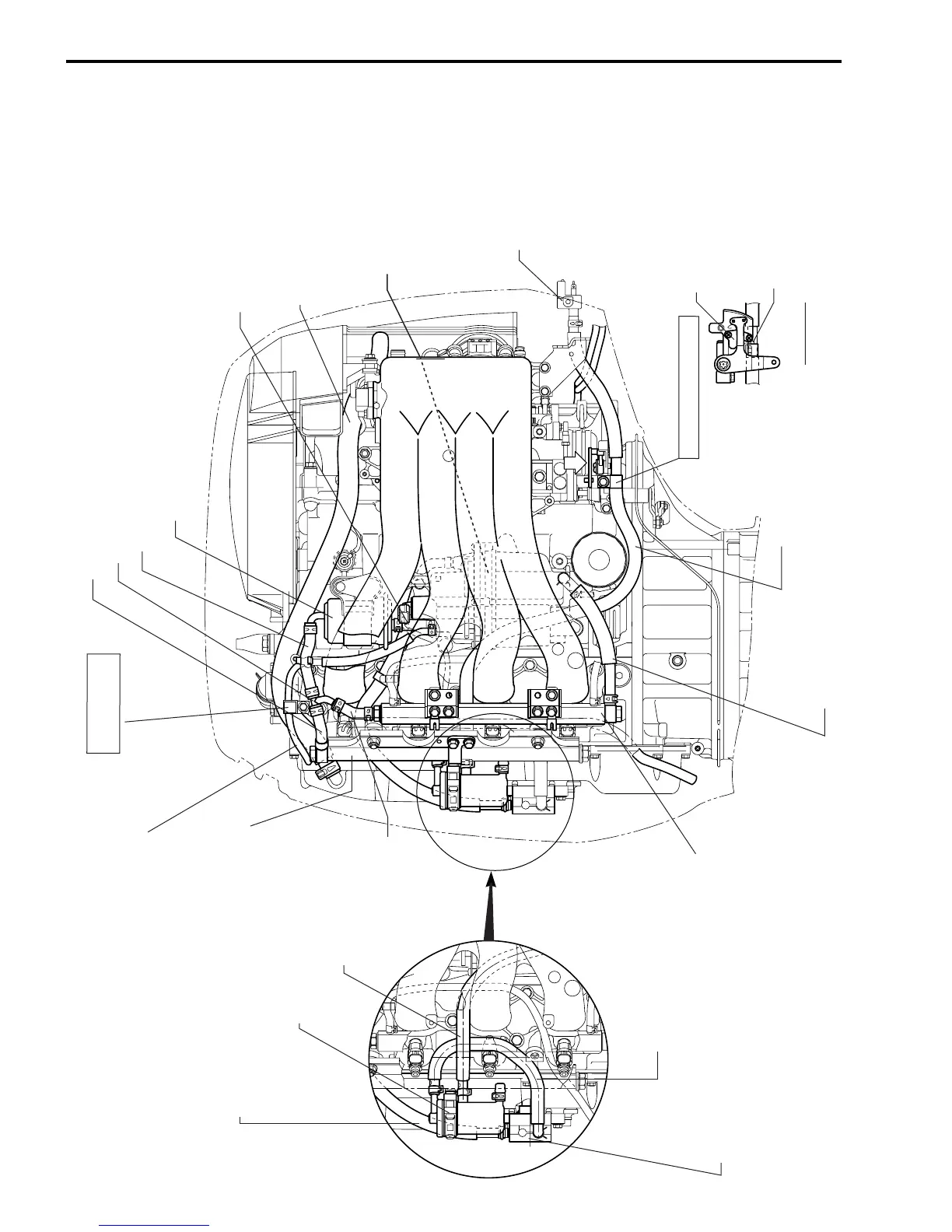

DF90/115/140 “K6” (’06) MODEL
Neutral switch
White paint mark
Clamp:
Fix fuel hose with clamp.
Fuel connector
Fuel vapor separator
(including High pressure
fuel pump)
Breather hose / Protector
(Cylinder head cover to Silencer)
High pressure fuel filter
Fuel hose / Protector (High pressure fuel filter to 3-way joint)
3-way joint
Fuel hose / Protector (3-way joint to Fuel delivery pipe)
Fuel hose / Protector
(Fuel connector to
Low pressure fuel filter)
Fuel return hose / Protector
(Fuel return pipe to Fuel vapor separator)
Fuel cooler
Fuel delivery pipe
Evaporation hose / Protector
(Fuel vapor separator to Cylinder head cover)
Clamp:
Fix evaporation
hose with clamp.
Fuel hose / Protector
(Fuel connector to
Low pressure fuel filter)
Low pressure fuel filter
Fuel hose / Protector
(Low pressure fuel filter to
Fuel vapor separator)
Fuel hose / Protector
(Low pressure fuel filter to
Low pressure fuel pump)
Low pressure fuel pump
Fuel hose / Protector
(3-way joint to Fuel
cooler)
Fuel hose
(Fuel vapor separator to
High pressure fuel filter)
VIEW A
A
To Next Page
