17-12
DF90/115/140K7” (’07) MODEL
PTT MOTOR

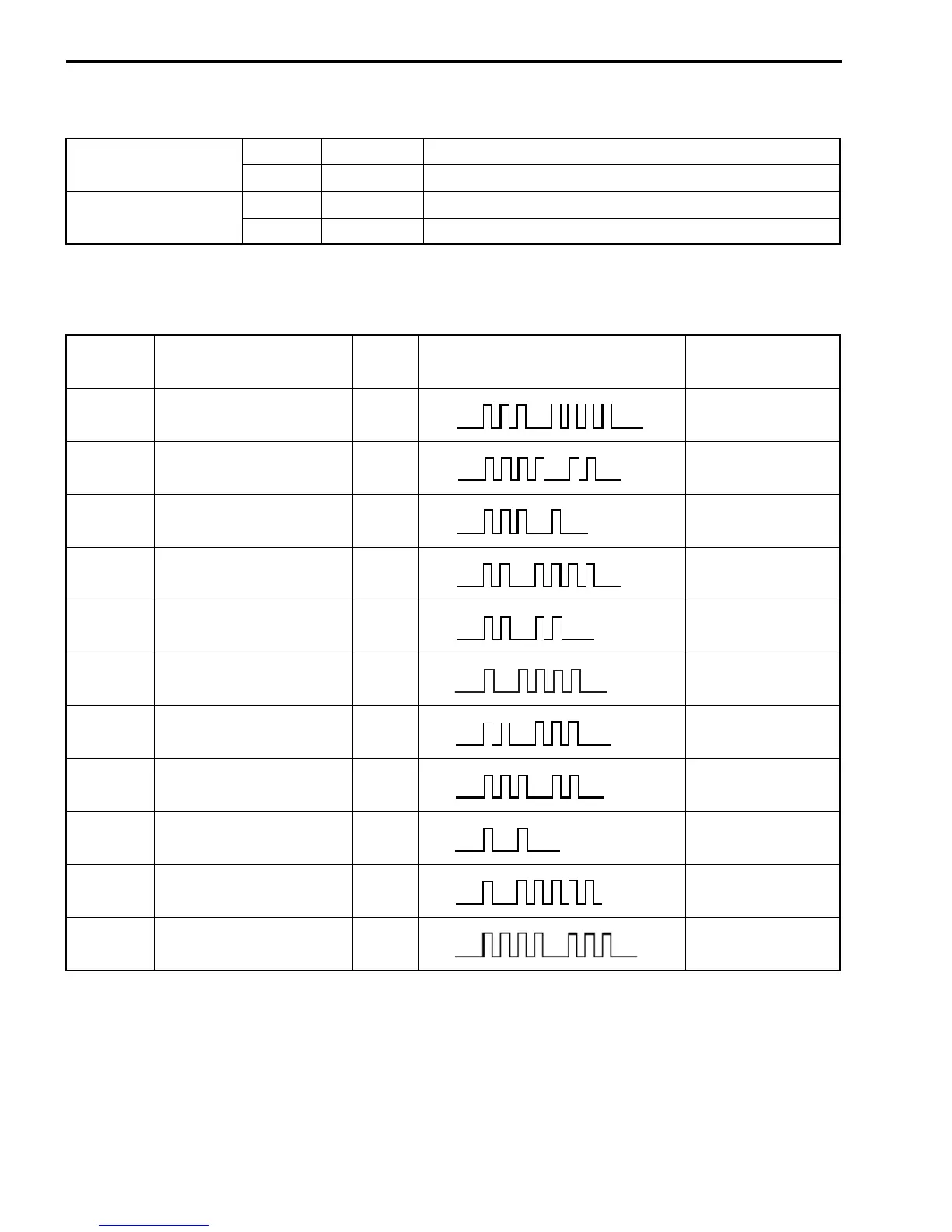

SELF-DIAGNOSTIC SYSTEM INDICATION
When the abnormality occurs in a signal from sensor, switch, etc., the “CHECK ENGINE” lamp on the moni-
tor-tachometer flashes (lights intermittently) according to the each code pattern with buzzer sounding.
* If more than two items fail at once, the self-diagnostic indicaion appears according to priority order. The
indication repeats three times.
Brush length
STD mm (in) 9.8 (0.39)
Limit mm (in) 5.5 (0.22)
Commutator outside
diameter
STD mm (in) 22.0 (0.87)
Limit mm (in) 21.0 (0.83)
PRIORITY FAILED ITEM CODE LAMP FLASHING PATTERN
FAIL-SAFE SYSTEM
ACTIVATING
1 MAP sensor 1 3 – 4
on
off
YES
2 CKP sensor 4 – 2
on
off
YES
3
IAC valve / By-pass air
screw adjustment
3 – 1
on
off
NO
4 CMP sensor 2 – 4
on
off
YES
5 CTP switch 2 – 2
on
off
NO
6 Cylinder temp. sensor 1 – 4
on
off
YES
7 IAT sensor 2 – 3
on
off
YES
8
MAP sensor 2
(Pressure detect passage)
3 – 2
on
off
NO
9
Rectifier & regulator
(Over-charging)
1 – 1
on
off
NO
10
Exhaust manifold temp.
sensor
1 – 5
on
off
YES
11 Fuel injector 4 – 3
on
off
NO
