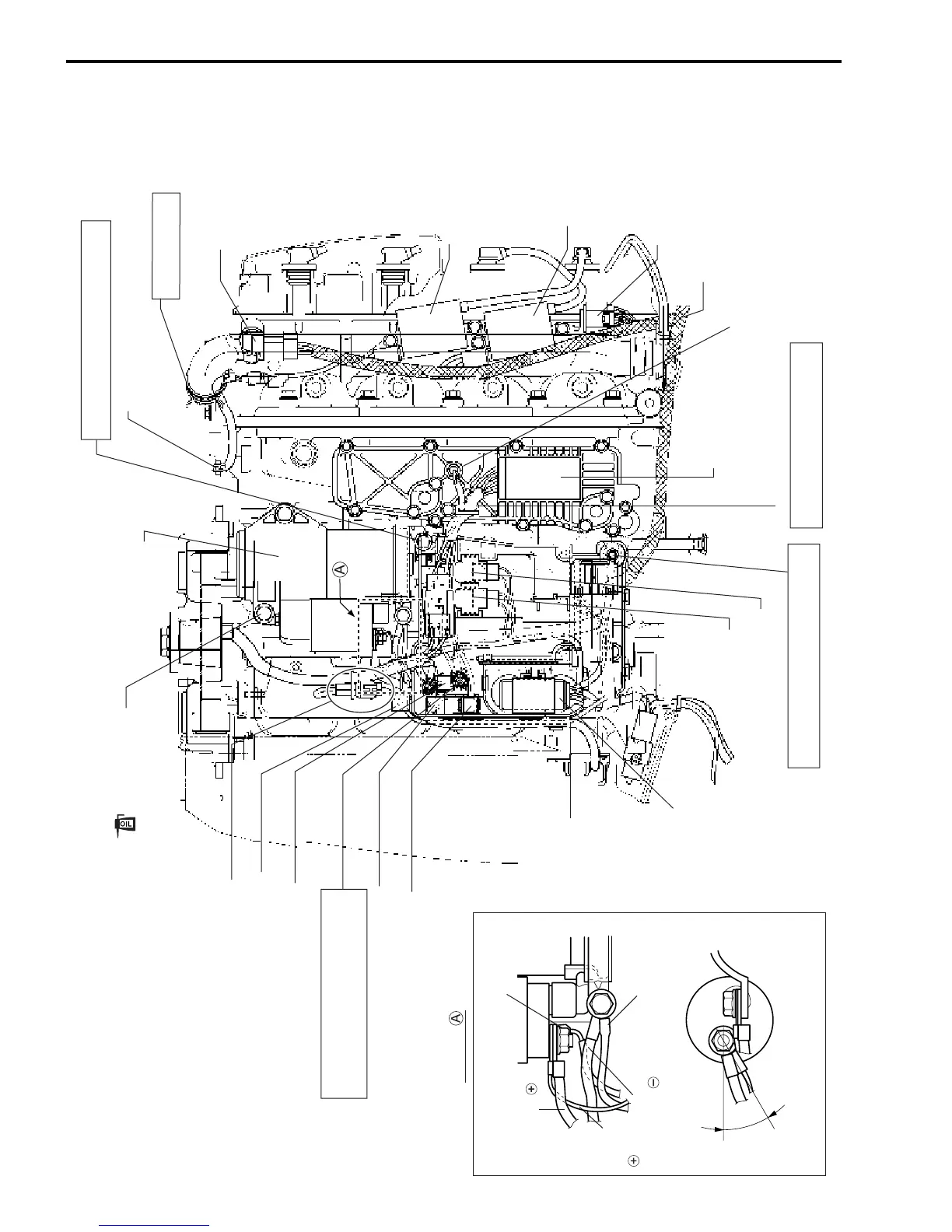

19-22 DF100 “K9” (’09) MODEL
Harness lead
wire GND
30˚
Starter magnetic
switch “S” terminal
ENGINE SIDE
Battery
cable
Harness
lead wire
Battery
cable
DETAIL
CMP sensor
Ignition coil No.1
Ignition coil No.2
Joint connector (10P)
Main harness
Exhaust manifold temp. sensor
Rectifier & regulator
Clamp
Fix rectifier & regulator lead wire
and temp. sensor lead wire.
Tighten bolt with PTT ground lead wire
and main harness ground lead wire.
ECM main relay
Starter relay
PTT relay
Battery cable
Sub fuse (30 A)
(with spare)
Tighten nut with rectifier & regulator
out put white lead and 30 A fuse
white lead wire.
Main fuse (60 A)
SDS communication connector/cap
Gauge connector
Starter motor bolt
Starter motor
Tighten bolt with starter motor band
and rect & regulator ground lead wire.
Cylinder temp. sensor
Clamp:
Fix cylinder temp.
sensor lead wire.
Spare main fuse
To Next Page
