Suzuki DR 125 User Manual

HOW TO USE THIS MANUAL
TO LOCATE WHAT YOU ARE LOOKING FOR:
1. The text of this manual is divided into sections.
2. The section titles are listed in the GROUP INDEX.
3. Holding the manual as shown at the right will allow you to find
the first page of the section easily.
4. The contents are listed on the first page of each section to
help you find the item and page you need.
COMPONENT PARTS AND WORK TO BE DONE

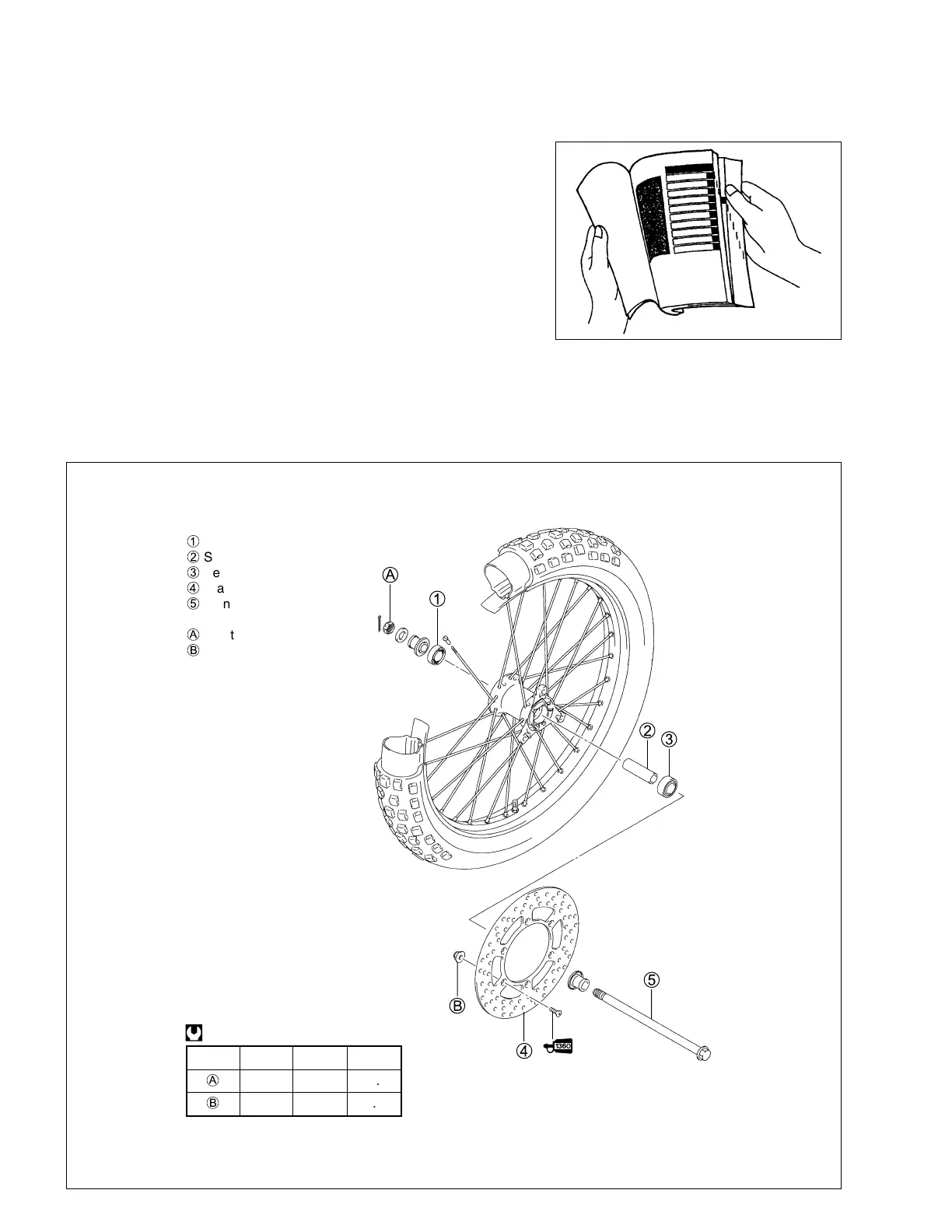

Under the name of each system or unit there is an exploded view which provides work instructions and other
service information (e.g., tightening torque, lubricating points, and locking agent points).
Example: Front wheel (DR-Z125L)
1 Bearing
2 Spacer
3 Bearing
4 Brake disc
5 Front axle
A Front axle nut
B Brake disc mounting nut
ITEM N·m kgf
.
m lb-ft
A 44 4.4 32.0
B 8.5 0.85 6.0
@

Suzuki DR 125 Specifications

General

Displacement	124cc
Compression Ratio	9.5:1
Transmission	5-speed constant mesh
Bore x Stroke	57.0 mm x 48.8 mm
Ignition	CDI
Front Suspension	Telescopic, oil damped
Rear Suspension	coil spring, oil damped
Front Brake	Disc brake
Rear Brake	Drum
Ground Clearance	265 mm
