ENGINE 3-9

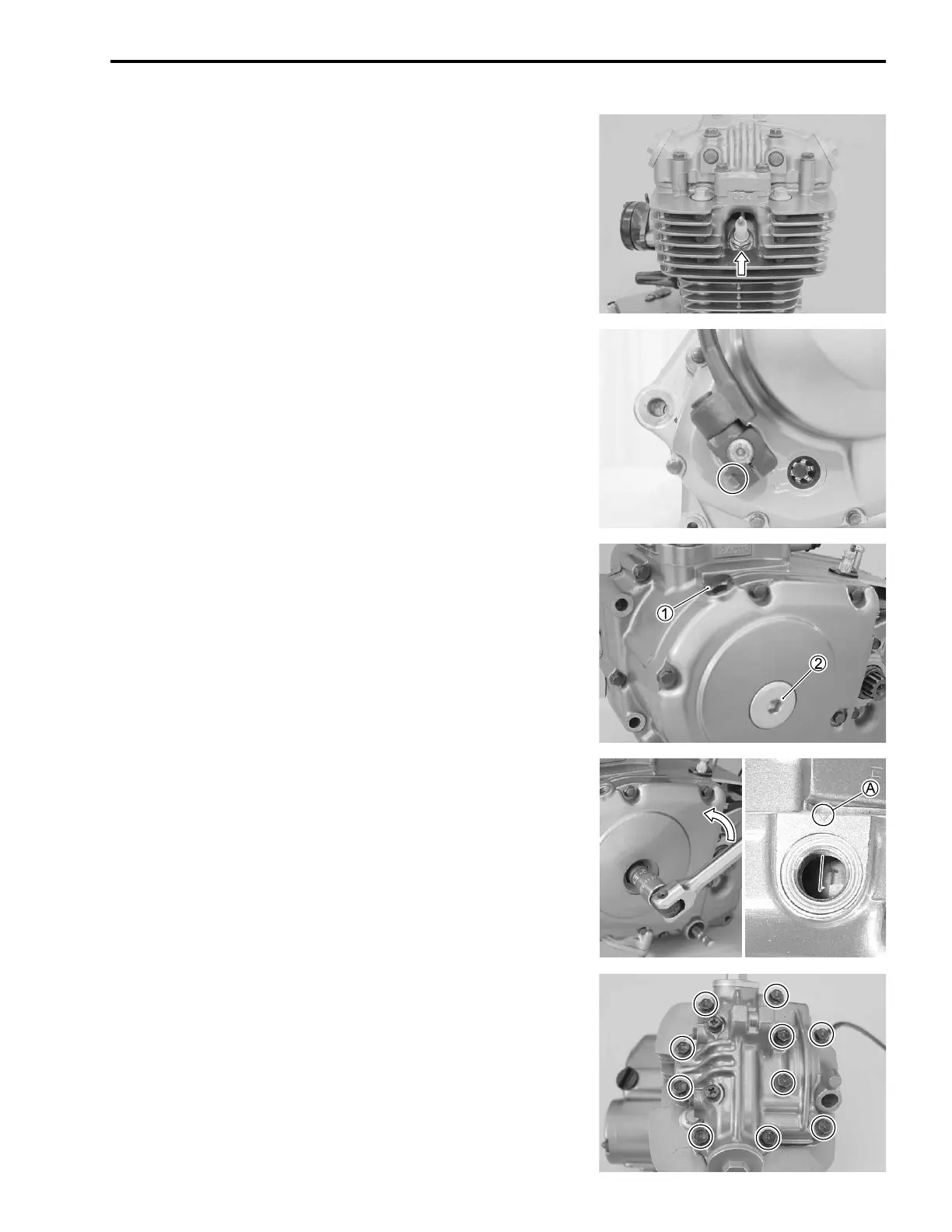

ENGINE DISASSEMBLY
The procedure for engine disassembly is sequentially explained
in the following steps.
• Remove the spark plug.
& 09930-10121: Spark plug wrench set
KICK STARTER LEVER
• Remove the kick starter lever.
• Remove the timing inspection plug
1 and generator cover
plug
2.
• Rotate the crankshaft and align the “T” line on the generator
rotor with the mark
A on the generator cover.
CYLINDER HEAD COVER
• Remove the cylinder head cover.

Suzuki DR 125 Specifications

General

Displacement	124cc
Compression Ratio	9.5:1
Transmission	5-speed constant mesh
Bore x Stroke	57.0 mm x 48.8 mm
Ignition	CDI
Front Suspension	Telescopic, oil damped
Rear Suspension	coil spring, oil damped
Front Brake	Disc brake
Rear Brake	Drum
Ground Clearance	265 mm
