ENGINE 3-47
NOTE:

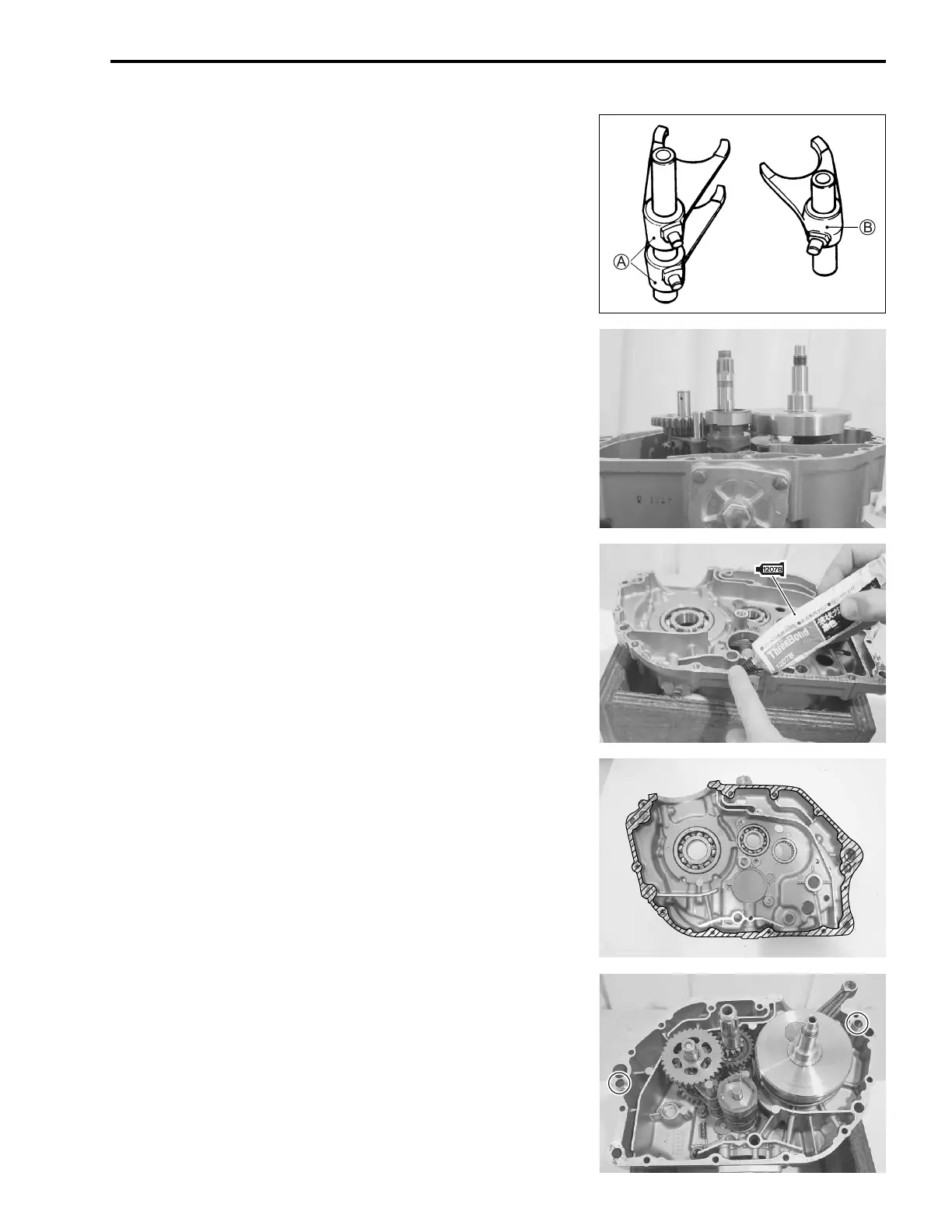

Two kinds of gearshift forks (
A, B) are used. They resemble
each other very closely in external appearance and configura-
tion. Carefully examine the illustration for correct installing posi-
tions and directions.
NOTE:
Position the gearshift cam as shown so that the gearshift fork
shafts can be installed easily.
• Wipe both crankcase mating surfaces with a cleaning solvent.
• Apply SUZUKI BOND “1207B” uniformly to the mating surface
of the right crankcase and assemble the cases within a few
minutes.
! 99104-31140: SUZUKI BOND “1207B” (USA)
99104-31140: SUZUKI BOND “1207B” (Others)
• Install the dowel pins into the left half of the crankcase.
• Apply engine oil to the conrod big end and transmission
gears.

Suzuki DR 125 Specifications

General

Displacement	124cc
Compression Ratio	9.5:1
Transmission	5-speed constant mesh
Bore x Stroke	57.0 mm x 48.8 mm
Ignition	CDI
Front Suspension	Telescopic, oil damped
Rear Suspension	coil spring, oil damped
Front Brake	Disc brake
Rear Brake	Drum
Ground Clearance	265 mm
