Suzuki F6A User Manual

180
SUMMARY

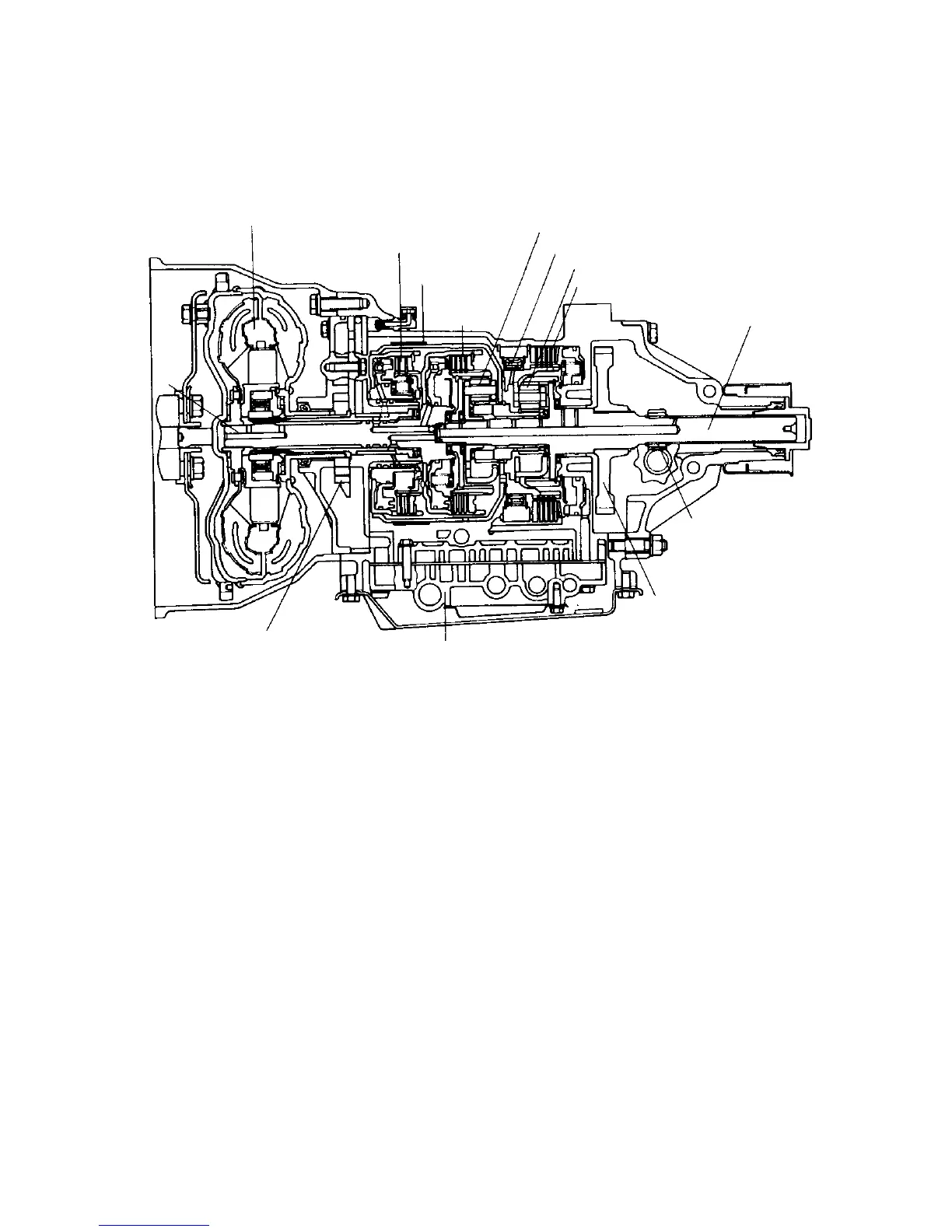

The three–speed automatic transmission uses an A–type manufactured by Aishin.
The AT controller is integrated with the EPI controller.
2
5
4
6
8
7
9
10
11
14
13
12
3
1
1. INPUT SHAFT
2. TORQUE CONVERTER
3. OIL PUMP
4. SECOND BRAKE
5. DIRECT CLUTCH
6. FORWARD CLUTCH
7. ONE–WAY CLUTCH
8. FRONT PLANETARY GEAR
9. REAR PLANETARY GEAR
10. FIRST REVERSE BRAKE
11. OUTPUT SHAFT
12. VALVE BODY
13. PARKING LOCK GEAR
14. SPEEDOMETER DRIVE GEAR

Suzuki F6A Specifications

General

Displacement	657 cc
Cooling System	Water-cooled
Bore x Stroke	65.0 mm x 66.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor or Fuel Injection
Maximum Torque	57 Nm (42 lb-ft) at 4, 000 rpm
Valvetrain	SOHC
Engine Type	Inline 3-cylinder
