62

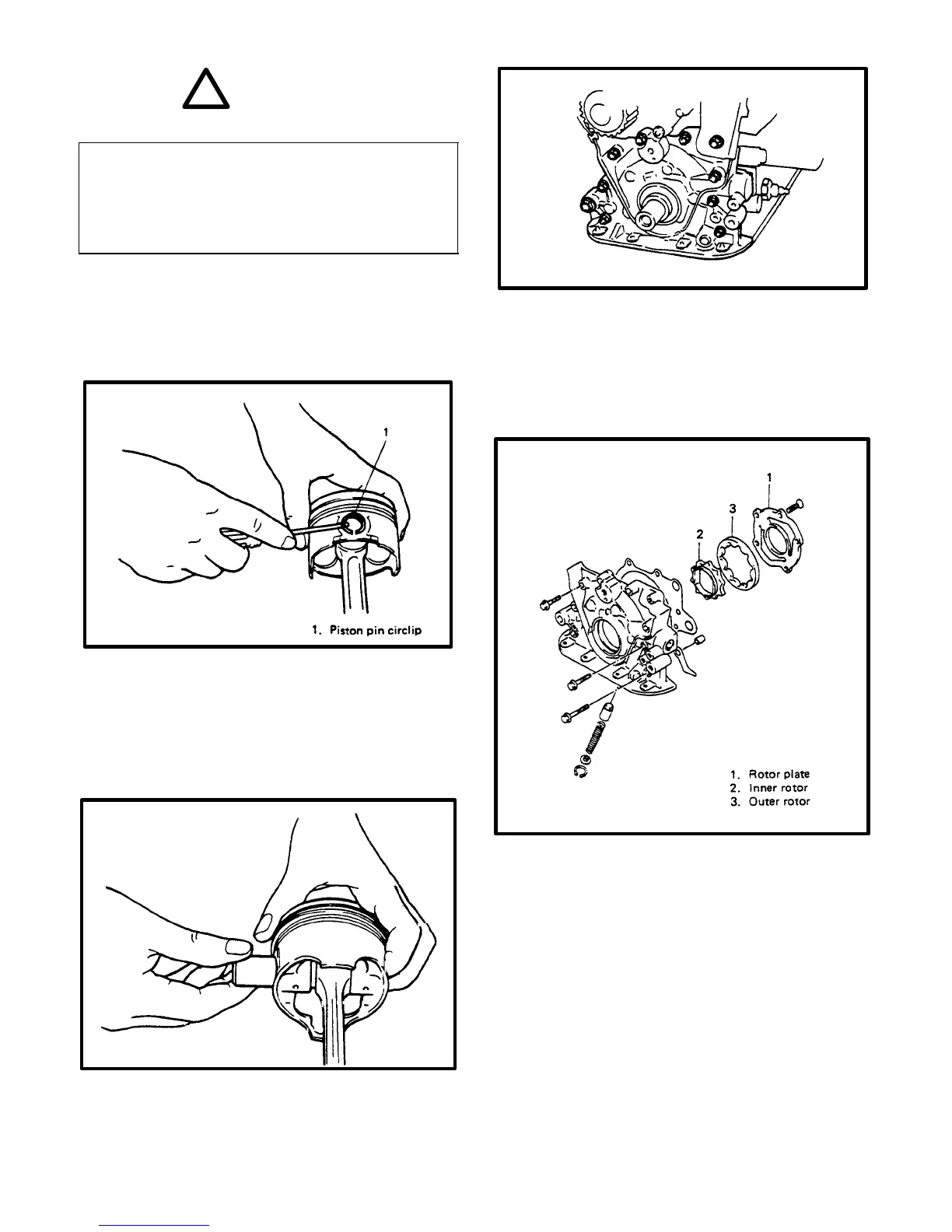

CAUTION
!
Before pushing the piston out, scribe the
cylinder number on its crown.
Be sure to identify each piston, piston pin,
connecting rod and bearing cap by using
the cylinder number.
a) From each piston, ease out piston pin circlips, as
shown.
b) Force piston pin out.
33) Remove oil pump case.
a) Remove oil pump rotor plate.
b) Take out inner and outer rotor.
34) Remove oil seal housing.
35) Remove crankshaft bearing caps, and take out
crankshaft.
INSPECTION OF ENGINE COMPONENTS
NOTE:
During and immediately after disassembly,
inspect cylinder block and head for evidence of
water leakage or damage and, after washing
them clean, inspect more closely.
