INSPECTION AND MAINTENANCE

78KS0-37E

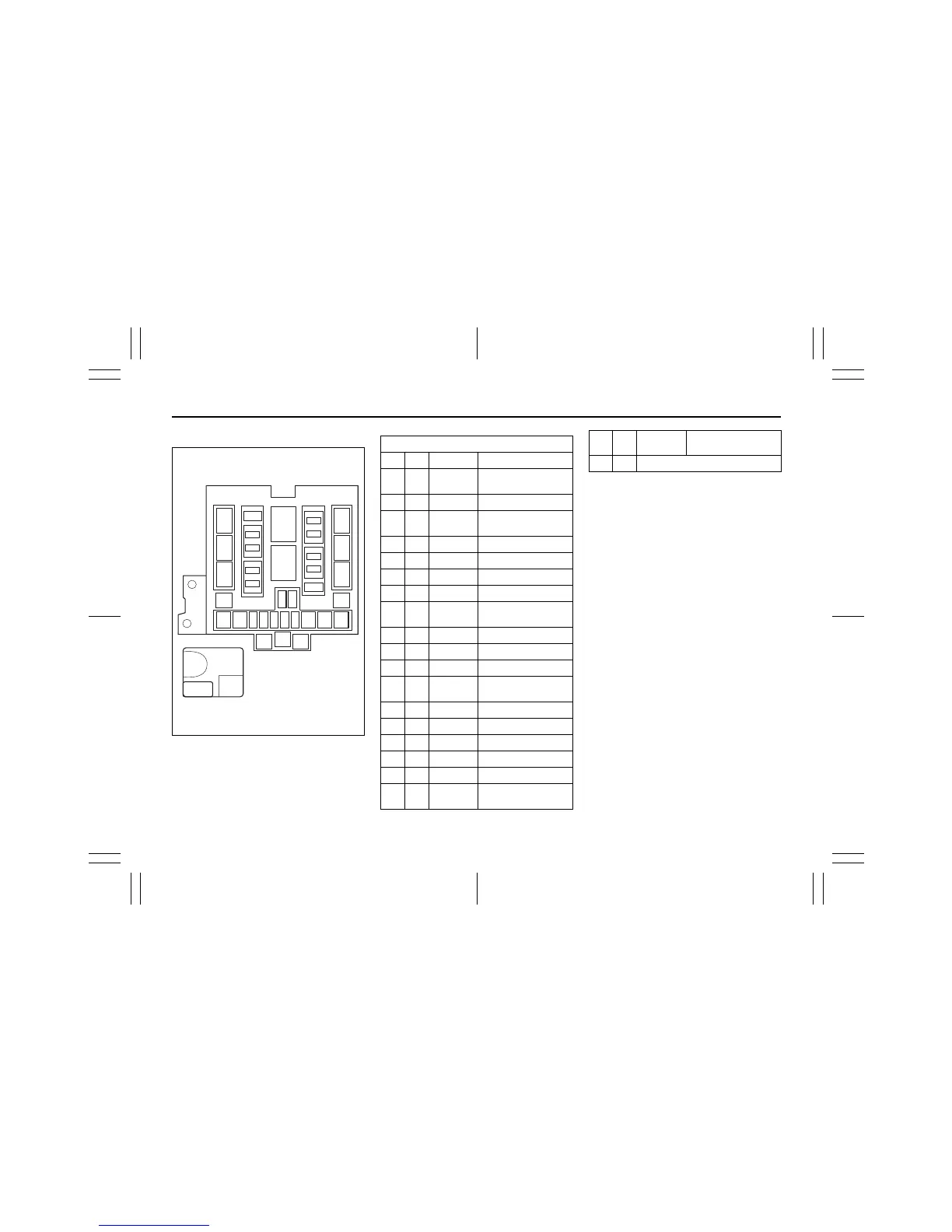

Fuses in the Engine Compartment

64J232

(21)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)(10)(11)(12)(13)

(19)(20)

(14)(15)(16)(17)(18)

Main Fuse / Primary Fuse

(1) 15A CPRSR A/C compressor fuse

(2) 20A O2 HTR

sensor heater

fuse

(3) 15A THR MOT Throttle motor fuse

(4) 20A AT

Automatic transmis-

sion fuse

(5) 25A RR DEF Rear defogger fuse

(6) 15A HORN Horn fuse

(7) 20A FR FOG Front fog light fuse

(8) 20A MRR HTR Mirror heater fuse

(9) 40A FR BLW

Front blower motor

fuse

(10) 30A ABS 2 ABS actuator fuse

(11) 50A ABS 1 ABS actuator fuse

(12) 20A FI Main fuse

(13) 30A H/L CLNR

Head light cleaner

fuse

(14) 10A H/L L Head light fuse, left

(15) 10A H/L R Head light fuse, right

(16) 10A H/L Head light fuse

(17) 40A ST Starter motor fuse

(18) 40A IGN Ignition fuse

(19) 15A H/L LO L

Head light low beam

fuse, left

(20) 15A H/L LO R

Head light low beam

fuse, right

(21) 80A All electric load

Fuses: 7
