INSPECTION AND MAINTENANCE

78KS0-37E

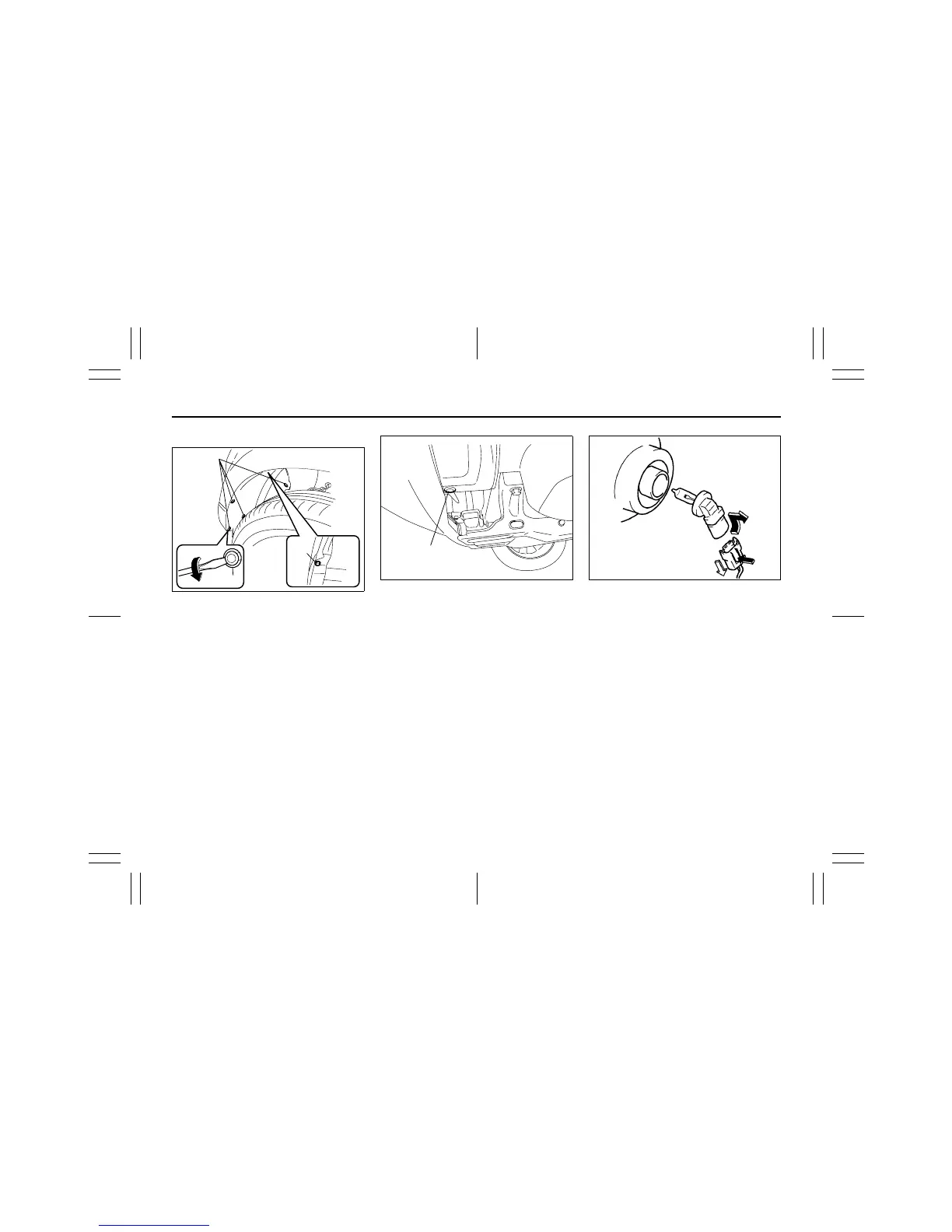

Front Fog Light

79K090

1) Insert a flat blade screw driver into the

hole (2) and remove the clips (1) by

twist the driver as shown in the illustra-

tion.

2) Remove the bolt (3) by a Phillips-head

screw driver.

79K091

3) Remove the clip (4) with the same way

as No.1).

78F072

4) Open the fender cover. Disconnect the

coupler with pushing the lock release.

Turn the bulb holder counterclockwise

and remove it.

(2)

(1)

(3)

(4)

Bulb Replacement: 7
