INSPECTION AND MAINTENANCE
78KS0-37E

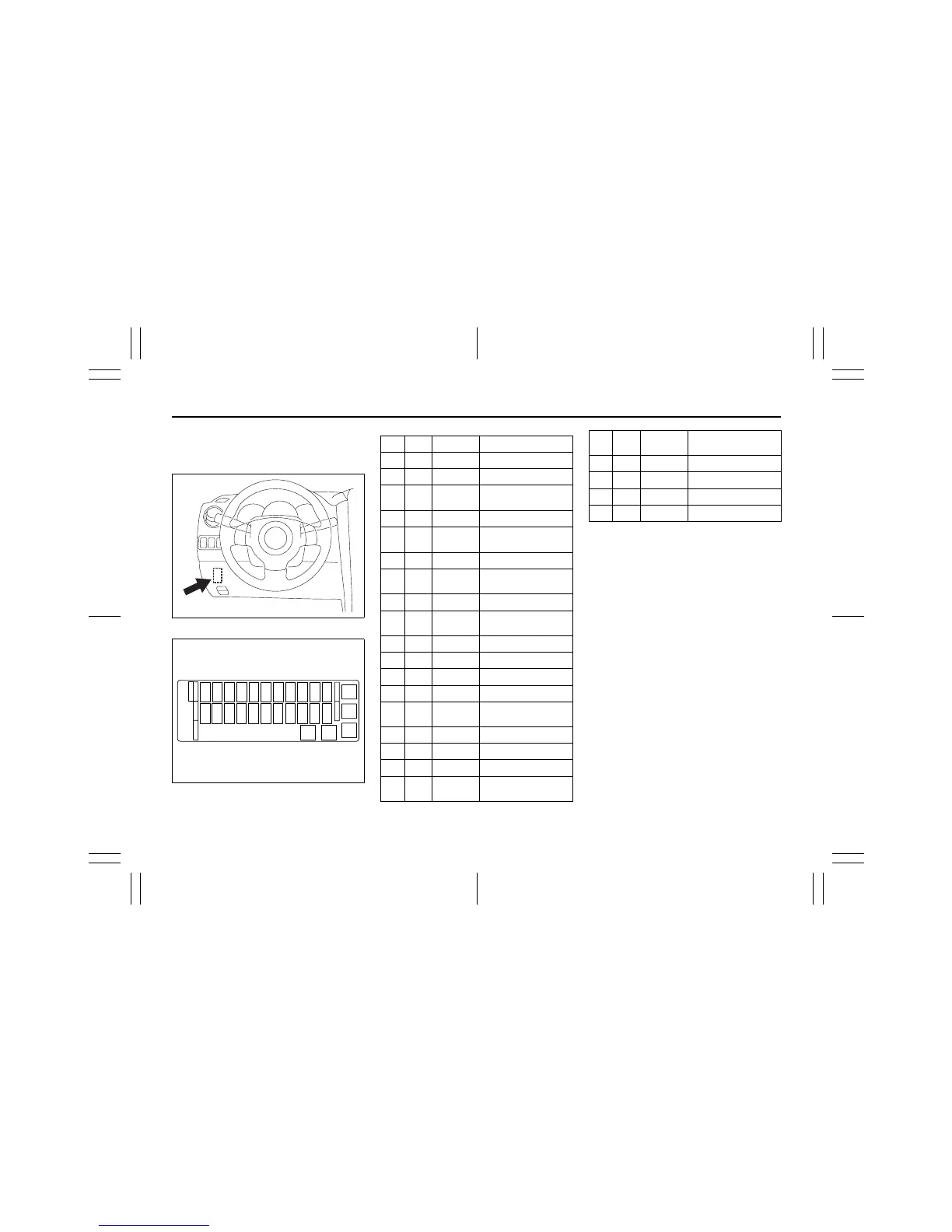

Fuse under the Dash Board
Fuse box
(For Gasoline and Diesel Engine Model)
64J192
79K057
SPARE SPARE
SPARE
SPARE
USE THE DESIGNATED
FUSES AND RELAYS ONLY
SPARE SPARE
(A)(B)(C)(D)(E)(F)(G)(H)(I)(J)
(L)(M)(N)(O)(P)(Q)(R)(S)(T)(U)(V)
(K)
(W)(X)
(A) 10A DOME Dome lamp fuse
(B) 10A STOP Stop lamp fuse
(C) 7.5A RR FOG Rear fog light fuse
(D) 15A ACC 3
Accessory socket
fuse
(E) 10A CRUISE Cruise control fuse
(F) 15A ACC 2
Cigar or Accessory
socket fuse
(G) 20A WIP Wiper fuse
(H) 15A IG2 SIG
Ignition signal & Seat
heater fuse
(I) 10A BACK Back lamp fuse
(J) 10A ABS/ESP
ABS or ESP control-
ler fuse
(K) 10A A/B Air bag fuse
(L) 15A RADIO Radio fuse
(M) 15A HAZ Hazard light fuse
(N) 7.5A ST SIG Starter signal fuse
(O) 10A ECM
Engine control
module fuse
(P) 25A S/R Sun roof motor fuse
(Q) 25A B/U Buck up fuse
(R) 10A TAIL Tail light fuse
(S) 20A D/L
Door lock actuator
fuse
(T) 15A ACC
Radio, Remote door
mirror fuse
(U) 10A METER Meter fuse
(V) 10A IG COIL Ignition coil fuse
(W) 20A P/W T Power window fuse
(X) 30A P/W Power window fuse
Fuses: 7
Headlight Aiming: 7
