Suzuki GSR600 User Manual

FI SYSTEM DIAGNOSIS 4-19

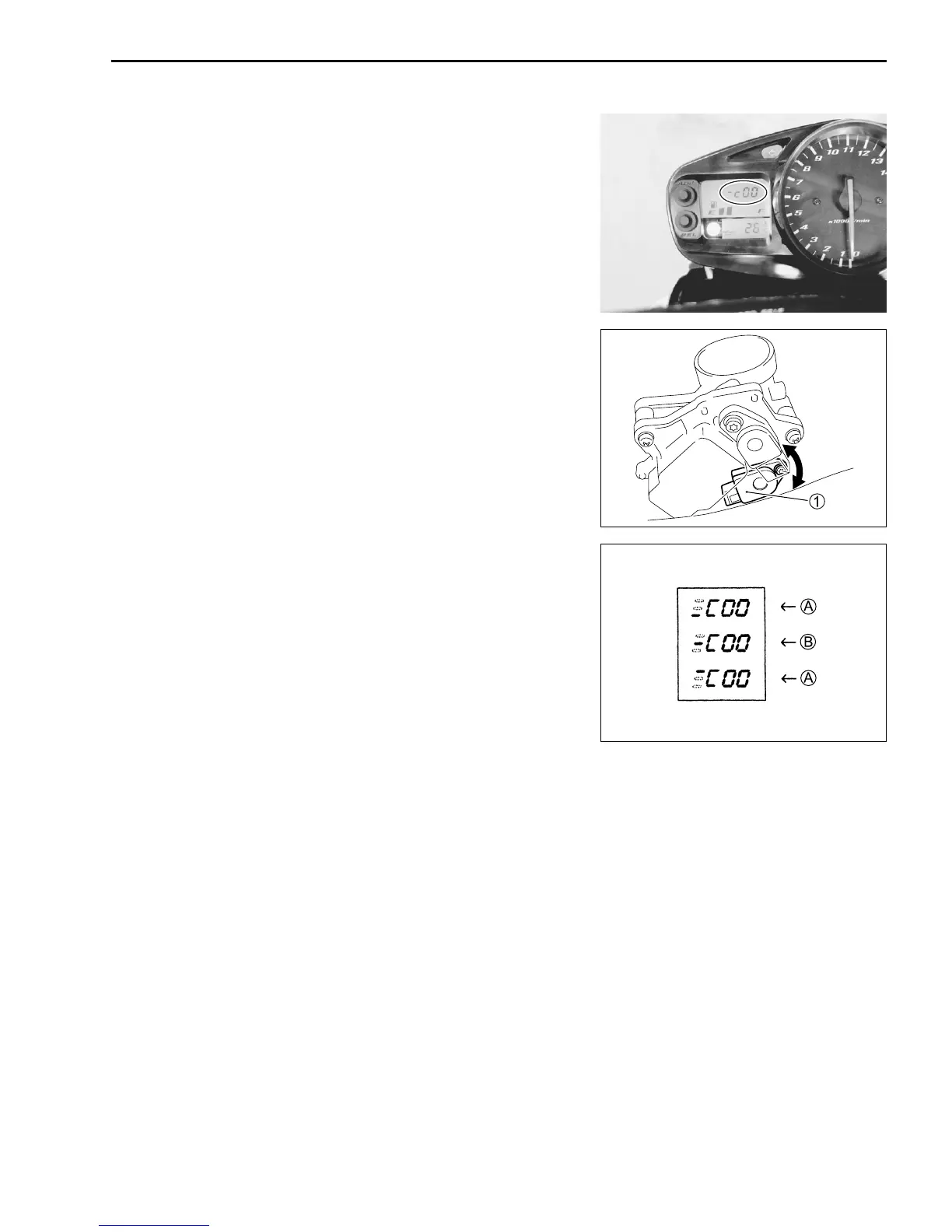

TPS ADJUSTMENT
1. Adjust the engine rpm to 1 300 r/min. (2-15)
2. Connect the special tool (Mode select switch) to the dealer
mode coupler at the wiring harness.
3. If the throttle position sensor adjustment is necessary, remove
the air cleaner box (5-13) and follow the procedure
below.
4. Loosen the screw and turn the throttle position sensor 1 and
bring the line to the middle.
5. Then, tighten the screw to fix the throttle position sensor.
 09930-11950: Torx wrench
09930-82720: Mode select switch
The LCD displays the line for 0.4 sec. at a time, and when such
a display repeats two times, it indicates the current position
where the sensor is fixed.
A Incorrect
B Correct position

Suzuki GSR600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	599 cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Bore x Stroke	67.0 mm x 42.5 mm
Overall Length	2, 090 mm
Overall Width	795 mm
Wheelbase	1440 mm
Ground Clearance	130 mm
Seat Height	785 mm
Fuel Tank Capacity	16.5 L
