FI SYSTEM DIAGNOSIS 4-51

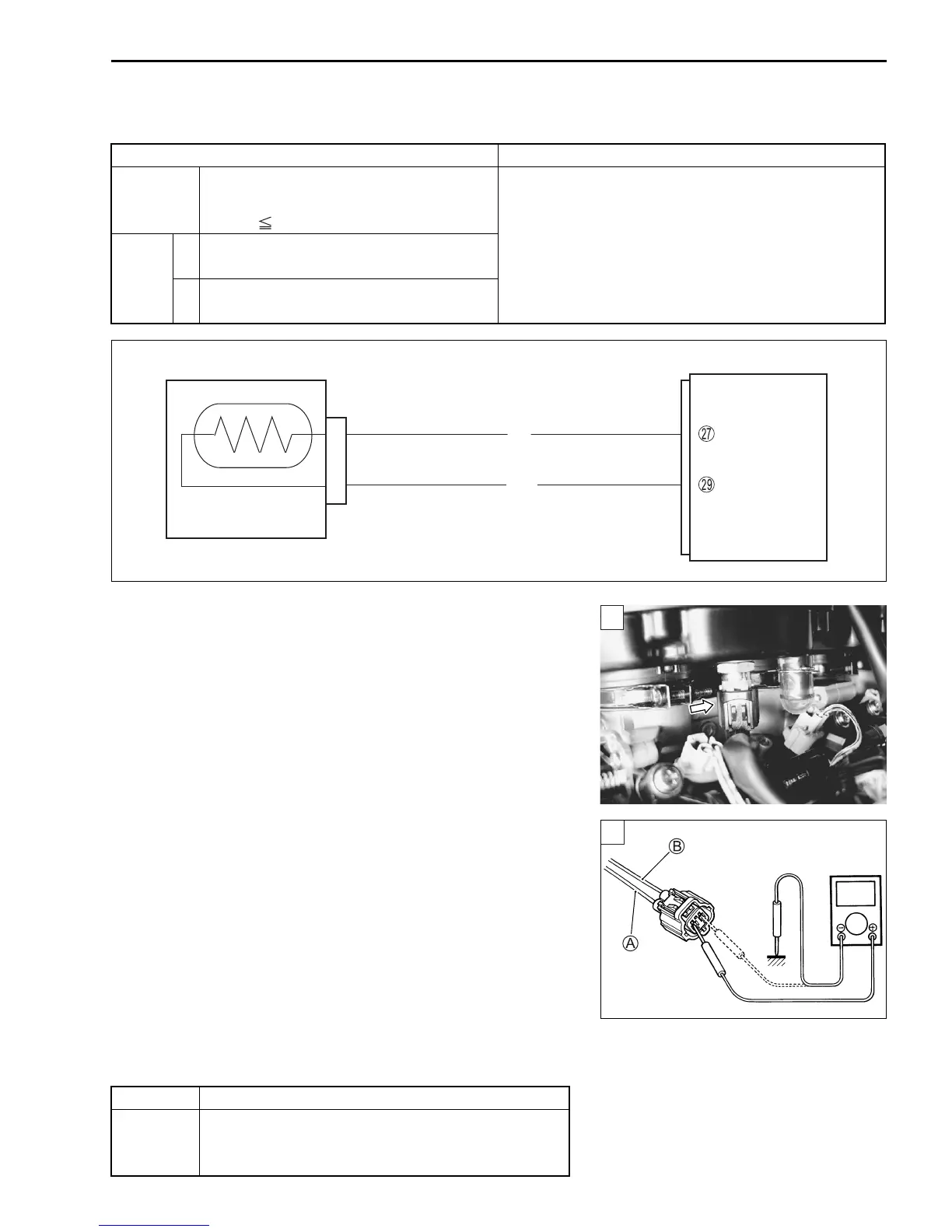

“C21” (P0110-H/L) IAT SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating C21:)
1) Turn the ignition switch to OFF.
2) Lift and support the fuel tank. (5-3)
3) Check the IAT sensor coupler for loose or poor contacts.
If OK, then measure the IAT sensor voltage at the wire side
coupler.
4) Disconnect the coupler and turn the ignition switch ON.
5) Measure the voltage between Dg wire terminal A and
ground.
6) If OK, then measure the voltage between Dg wire terminal A
and B/Br wire terminal B.
 IAT sensor input voltage: 4.5 – 5.5 V
(+ Dg – - Ground)
(+ Dg – - B/Br)
 09900-25008: Multi-circuit tester set
 Tester knob indication: Voltage ()
Is the voltage OK?
DETECTED CONDITION POSSIBLE CAUSE
C21 Output voltage is not within the following
range.
0.15 V Sensor voltage < 4.85 V
• IAT sensor circuit open or short
• IAT sensor malfunction
• ECM malfunction
P0110
H
Sensor voltage is higher than specified
value.
• IAT sensor circuit open or ground circuit open
• IAT sensor circuit shorted to ground
L
Sensor voltage is lower than specified
value.
ECM
B/Br
E2
IAT
Dg
IAT sensor
1
V
1
YES Go to Step 2.
NO
• Loose or poor contacts on the ECM coupler
(terminal Q or S)
• Open or short circuit in the Dg wire or B/Br wire

Suzuki GSR600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	599 cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Bore x Stroke	67.0 mm x 42.5 mm
Overall Length	2, 090 mm
Overall Width	795 mm
Wheelbase	1440 mm
Ground Clearance	130 mm
Seat Height	785 mm
Fuel Tank Capacity	16.5 L
