1. SYSTEM INTRODUCTION
1-7

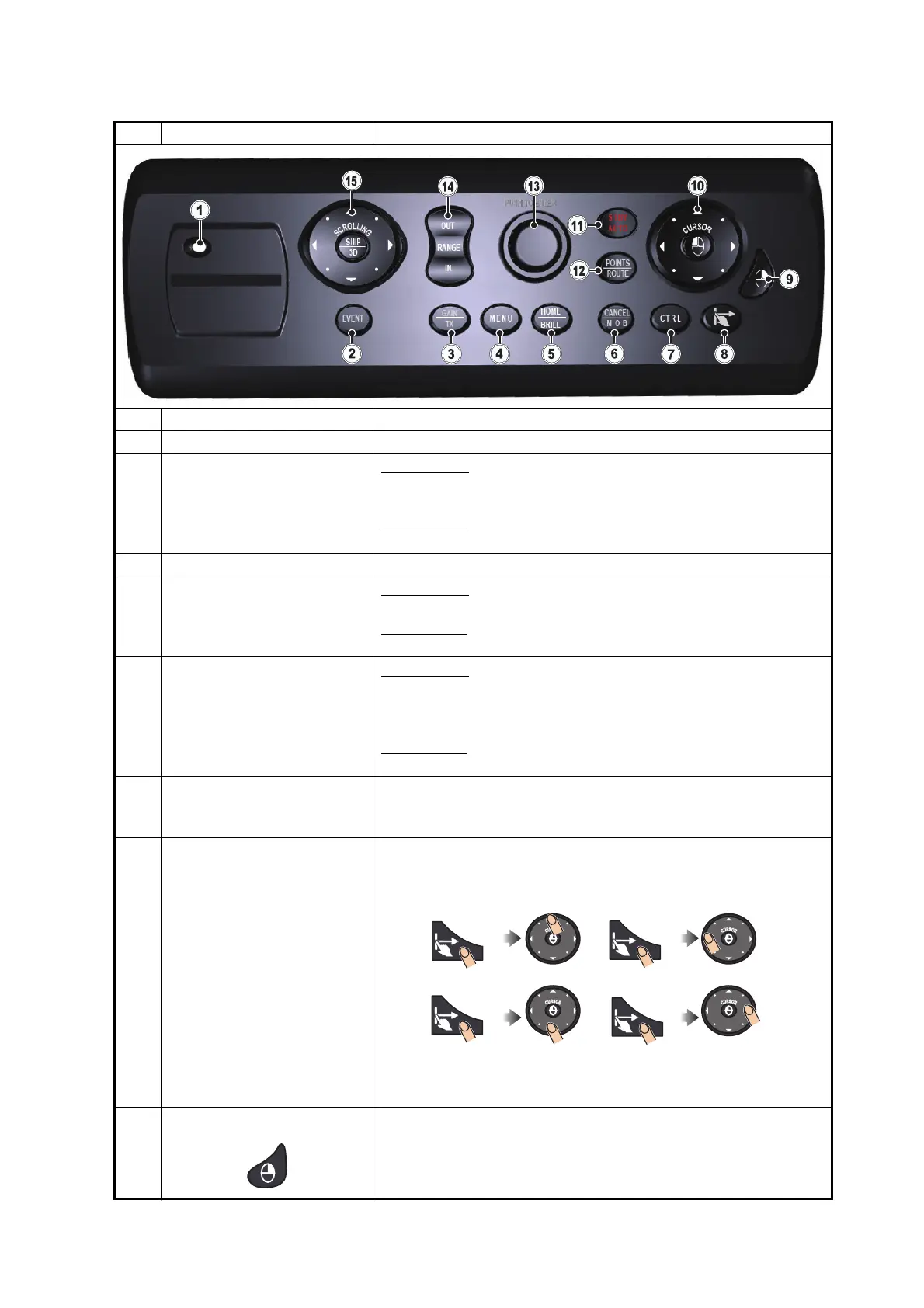

1.2.3 Control Unit MCU-005
No. Key Name Description
1 Power lamp When the power is on, the lamp is lit.
2 EVENT key Inscribes an event mark at your current position.
3 GAIN/TX key
Short press:
• Adjusts the radar gain/AC SEA/AC RAIN or adjust the Fish
Finder/Multi-beam Sounder gain.
Long press:
• Toggles between Standby and Transmit for the radar.
4 MENU key Open/close the menu.
5 HOME/BRILL key
Short press:
• Opens the home screen.
Long press:
• Opens the Brilliance/Power window.
6 CANCEL/MOB key
Short press:
• Closes menus/windows.
• Stops the aural alarm.
• Ends the tool mode (End Route, End Move, etc.).
Long press:
• Enters the MOB mark (at the own ship’s position).
7 CTRL key Switches between displays that can be controlled with the
MCU-005 (when multiple displays are installed in the same
network).
8 EDGE key Press the EDGE key, then tap the cursor pad in the desired di-
rection.
Note: You can also use the scrolling pad to open the above
menus.
9 FUNCTION GESTURE key Activates the function set at [Function Gesture] in the [Gener-
al] menu.
- Layers menu
- Quick page
- Slide-out menu
- Data area
Press
Tap Tap
Tap Tap
Press
Press Press
