5-17
OTHER CONTROLS AND EQUIPMENT
80SS5-01E

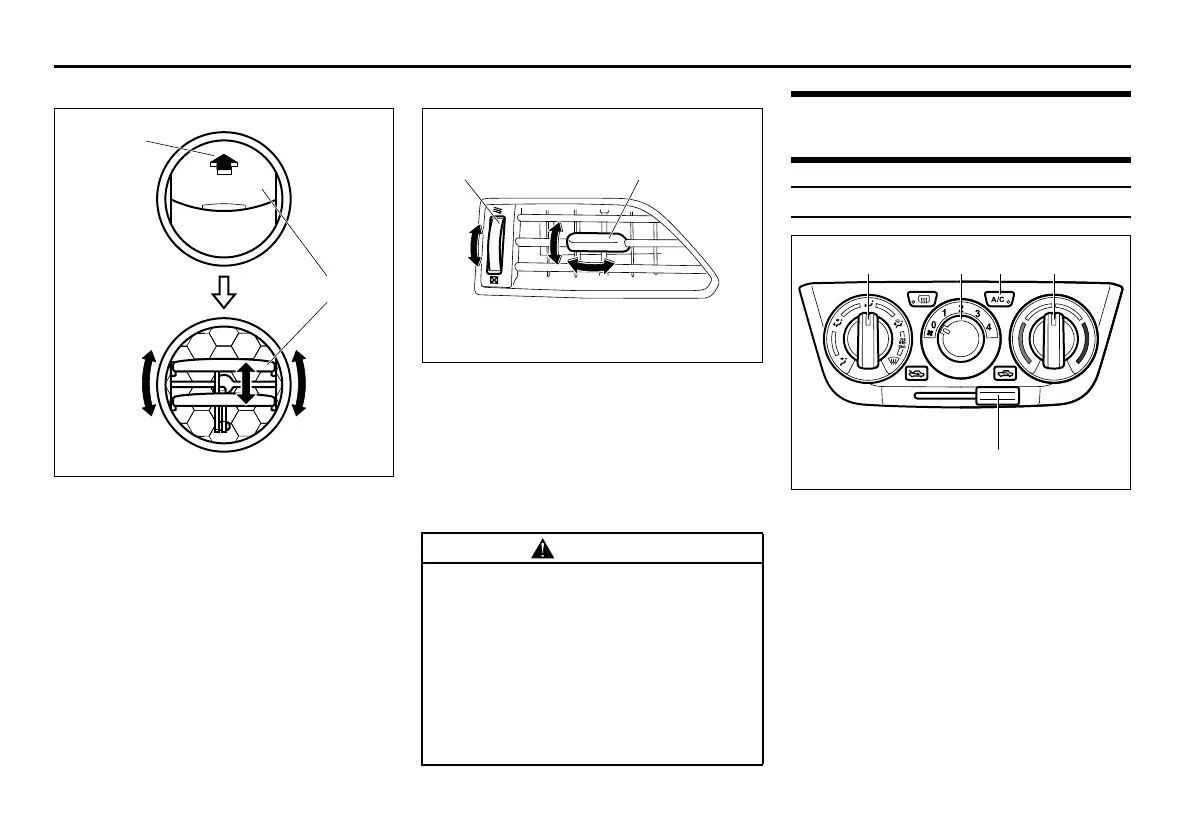

Center outlet
52RS006
To open the louver (1), push the arrow part
(2) as shown in the illustration. To adjust
the direction of the air flow, move up or
down or turn the opened louver (1).
Side outlet
52RS007
When open, air comes out regardless of
the air flow selector position. Move the
knob (3) vertically or horizontally, to adjust
the direction of airflow as desired. The side
outlet opens when you turn the dial (4)
upward and closes when you turn it down-
ward.
Manual heating and air
conditioning system
Description of controls
52RM50330
Temperature selector (1)
This is used to adjust the temperature.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed.
(2)
(1)
CAUTION
Prolonged exposure to hot air from
the heater or air conditioner could
result in low temperature burns. All
vehicle occupants, particularly chil-
dren, the elderly, those with special
needs, individuals with delicate skin,
and sleeping individuals, should
maintain sufficient distance from the
air outlets to prevent prolonged
exposure to hot airflow.
(4) (2) (5) (1)
(3)
