7-37
INSPECTION AND MAINTENANCE
80SS5-01E
(For K14C engine model)
52RM205

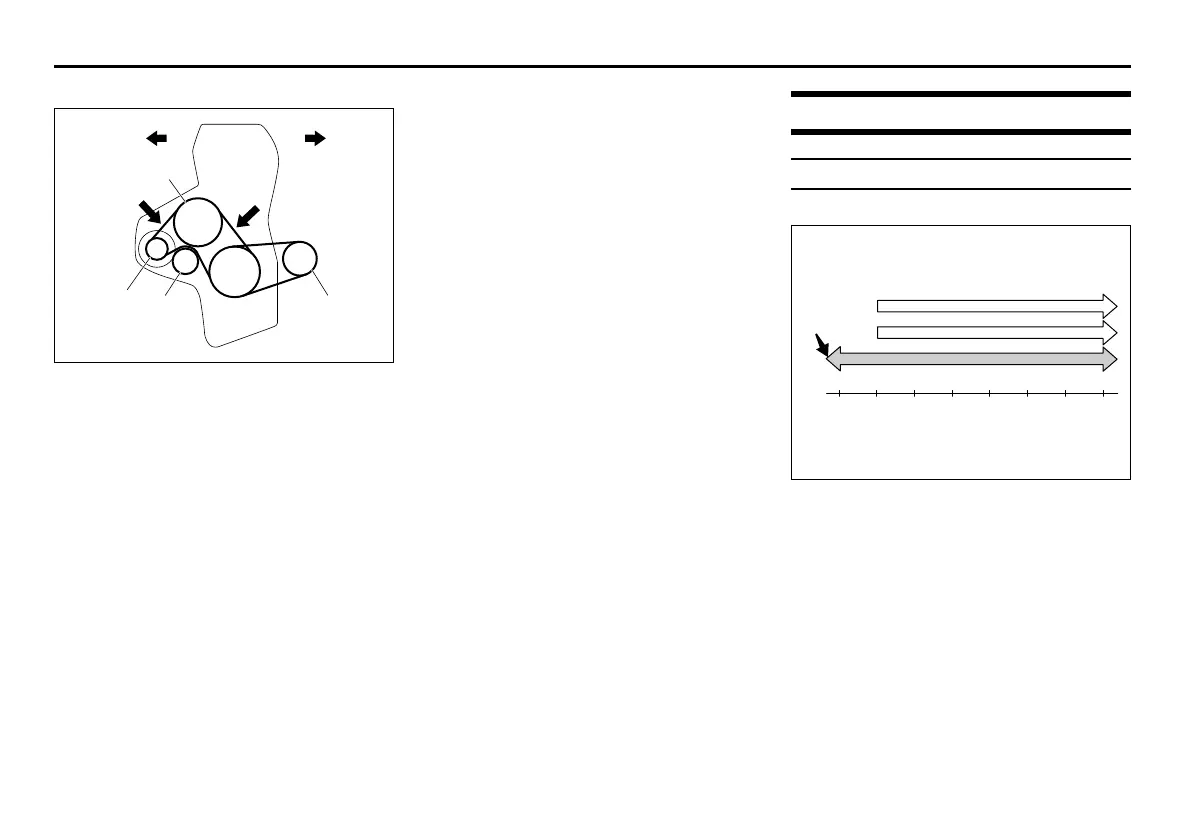

Drive belt deflection
(100 N (10 kg, 22 lbs) press)
(a) New:
5.4 - 6.8 mm (0.21 - 0.27 in.)
Readjustment:
7.1 - 8.0 mm (0.28 - 0.31 in.)
(b) New:
3.7 - 4.7 mm (0.15 - 0.19 in.)
Readjustment:
4.9 - 5.6 mm (0.19 - 0.22 in.)
(For K12C, K12D and K14D engine mod-
els)
The drive belts tension is adjusted auto-
matically.
Engine oil and filter
Specified oil
(For K10C and K14C engine models)
54P120705
(1) Preferred
Check that the engine oil you use comes
under the quality classification as listed
below:
• API SL, SM, SN, SP
• ILSAC GF-3, GF-4, GF-5, GF-6
Select the appropriate oil viscosity accord-
ing to the above chart.
SAE 5W-30 (1) is the best choice for good
fuel economy and good startability in cold
weather.
(1) Vehicle front (2) Vehicle rear
(3) Water pump (4) Generator
(5) Idler pulley
(6) Air conditioner compressor
C
F
o
o
-30
-22
-20
10W-40
-4
-10
14 32 50 68 86 104
010203040
10W-30
(1)
5W-30
