7-59
INSPECTION AND MAINTENANCE
80SS5-01E
Brake discs and brake drums
Brake disc
Brake drum
If the measured thickness or inner diame-
ter of the most worn part falls below or
exceeds the value indicated above, the
parts should be replaced with a new one.
The measurement involves disassembling
each brake and requires the use of a
micrometer or caliper, which must be done
according to the instructions described in
the relevant service manual or available
from the relevant repair information site.

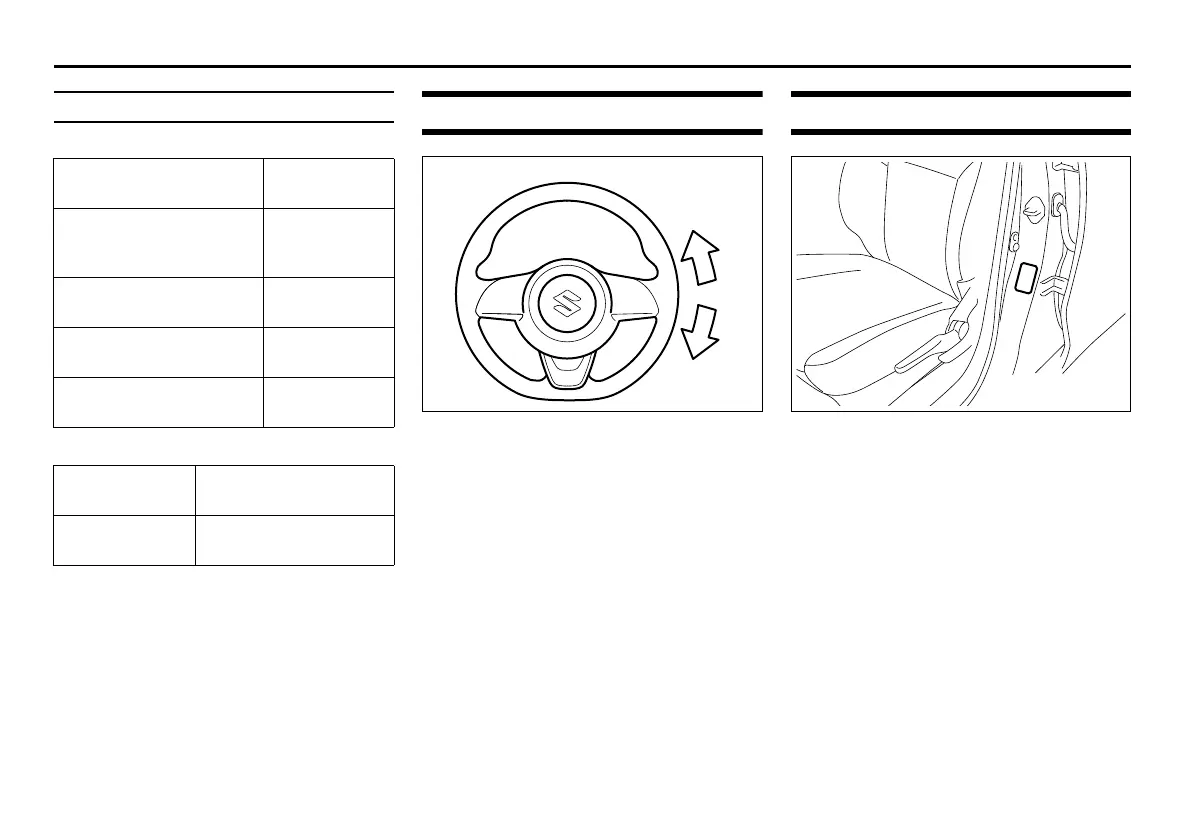

Steering wheel
52RM70030
Steering wheel play “c”:
0 – 30 mm (0.0 – 1.2 in.)
Check the free play of the steering wheel
by gently turning it from left to right and
measuring the distance that it moves
before you feel slight resistance. The play
should be between the specified values.
Check that the steering wheel turns easily
and smoothly without rattling by turning it
all the way to the right and to the left while
driving very slowly in an open area. If the
amount of free play is not as specified or
you find anything else to be wrong, an
inspection must be performed by an autho-
rized SUZUKI dealer.
Tyres
52RM70040
The front and rear tyre pressure specifica-
tions are listed in the tyre information label.
Both front and rear tyres should have the
specified tyre pressure.
Note that the value does not apply to the
compact spare tyre, if equipped.
Brake location
Minimum
thickness
Front wheels (
if equipped
with rear brake disc except
for sport model
)
18.0 mm
(0.7 in.)
Front wheels (
if equipped
with rear brake drum
)
15.0 mm
(0.6 in.)
Front wheels
(for sport model)
22.0 mm
(0.9 in.)
Rear wheels
(if equipped)
8.0 mm
(0.3 in.)
Brake location
Maximum inner
diameter
Rear wheels
(if equipped)
181 mm (7.13 in.)
“c”
