7-52
INSPECTION AND MAINTENANCE
80SS5-01E
Gear oil
Manual transmission oil
When adding gear oil, use gear oil with the
appropriate viscosity and grade as shown
in the chart below.
We highly recommend you use “SUZUKI
GEAR OIL 75W” for manual transmission
oil.
Manual transmission oil
54P120706

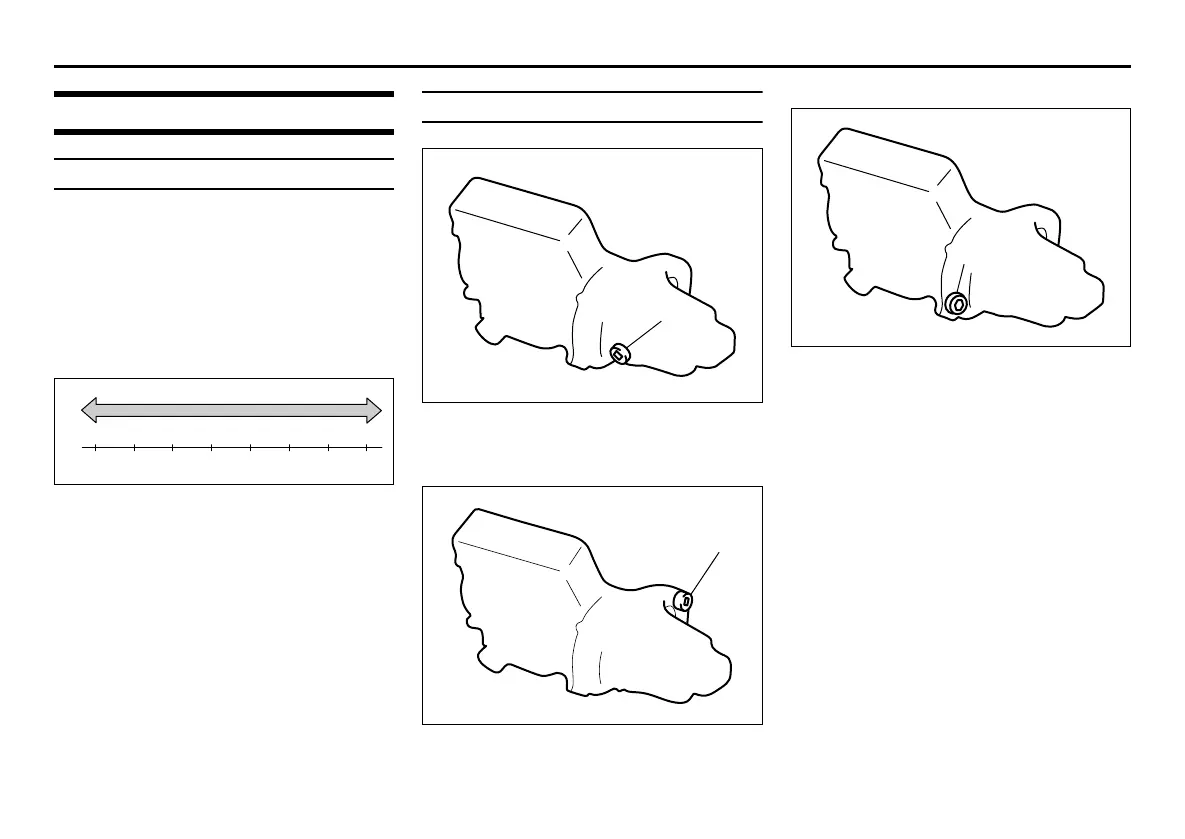

Gear oil level check
K10C engine models
52LM021
(1) Oil filler and level plug
K12C, K12D and K12M engine models
52RM206
(2) Oil filler and level plug
K14C and K14D engine models
52RM207
(3) Oil filler and level plug
To check the gear oil level, use the fol-
lowing procedure:
1) Park the vehicle on a level surface with
the parking brake applied. Then, stop
the engine.
2) Remove the oil filler and level plug.
3) If gear oil flows from the plug hole, the
oil level is correct. Reinstall the plug. If
gear oil does not flow from the plug
hole, add oil through the filler plug hole
until oil flows a little from the plug hole.
C
F
o
o
-30
-22
-20
-4
-10
14 32 50 68 86 104
010203040
75W
(1)
(2)
(3)
