Suzuki SWIFT 2022 Series User Manual

7-36
INSPECTION AND MAINTENANCE
80SS5-01E
Drive belt
Check that the drive belt tension is correct
while the engine is stopped. If the belt is
too loose, insufficient battery charging,
engine overheating, poor air conditioning,
or excessive belt wear can result. When
you push the belt with your thumb midpoint
between the pulleys, there should be a
deflection according to the following chart.
The belts should also be examined to
ensure that they are not damaged.
If you need to replace or adjust the belt
have it done by an authorized SUZUKI
dealer.
To increase the engine life, check the drive
belt condition. Since special procedures,
materials and tools are required, it is rec-
ommended that you trust this job to an
authorized SUZUKI dealer.

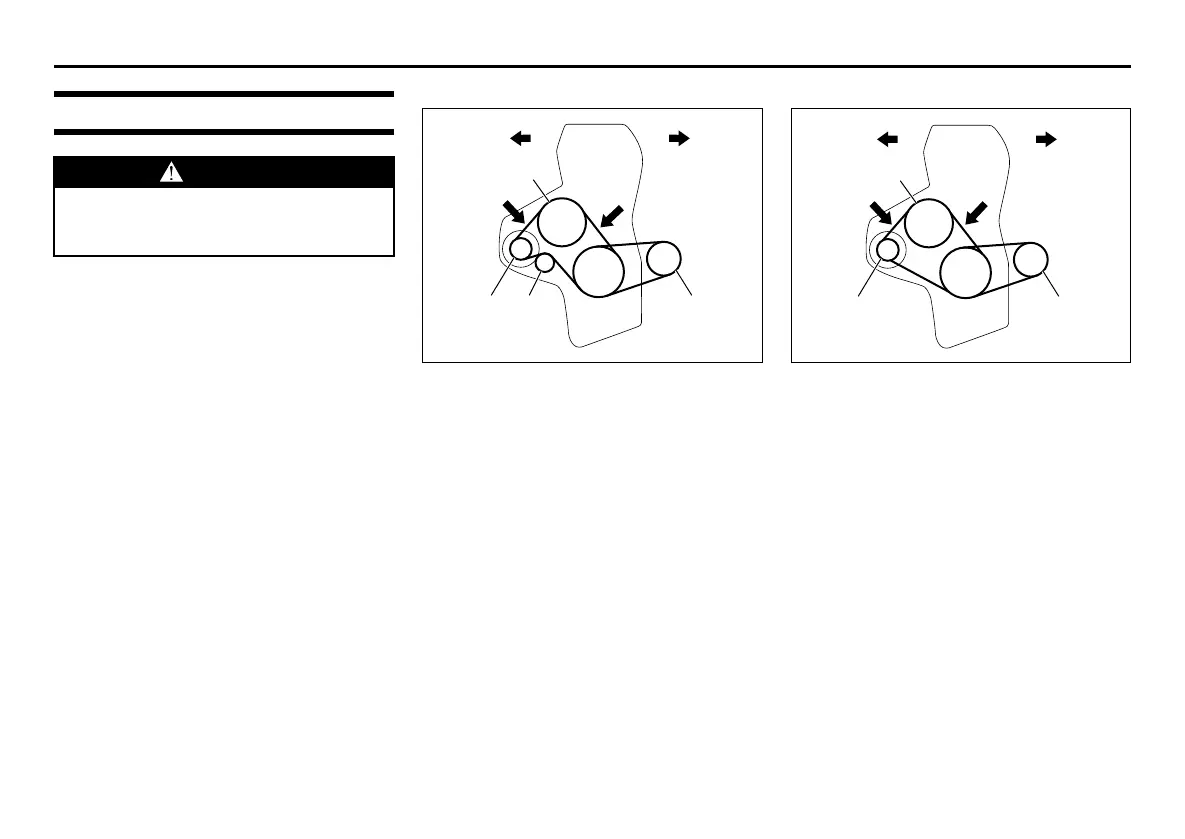

(For K10C engine model)
68PM00702
Drive belt deflection (100 N (10 kg, 22
lbs) press)
(a) New:
4.8 - 5.9 mm (0.19 - 0.23 in.)
Readjustment:
6.2 - 7.1 mm (0.24 - 0.28 in.)
(b) New:
3.2 - 4.1 mm (0.13 - 0.16 in.)
Readjustment:
4.4 - 5.0 mm (0.17 - 0.20 in.)
(For K12M engine model)
52RS003
Drive belt deflection (100 N (10 kg, 22
lbs) press)
(a) New:
4.8 - 5.9 mm (0.19 - 0.23 in.)
Readjustment:
7.1 - 8.2 mm (0.28 - 0.32 in.)
(b) New:
3.4 - 4.3 mm (0.13 - 0.17 in.)
Readjustment:
5.3 - 6.0 mm (0.21 - 0.24 in.)
WARNING
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the moving fan and drive belts.
(1) Vehicle front (2) Vehicle rear
(3) Water pump (4) Generator
(5) Idler pulley
(6) Air conditioner compressor
(4)
(b)
(3)
(1)(2)
(a)
(6)
(5)
(1) Vehicle front (2) Vehicle rear
(3) Water pump (4) Generator
(5) Air conditioner compressor
(4)
(3)
(1)(2)
(b)
(a)
(5)
