7-48
INSPECTION AND MAINTENANCE
80SS5-01E
(For K12D engine model)
80SM145

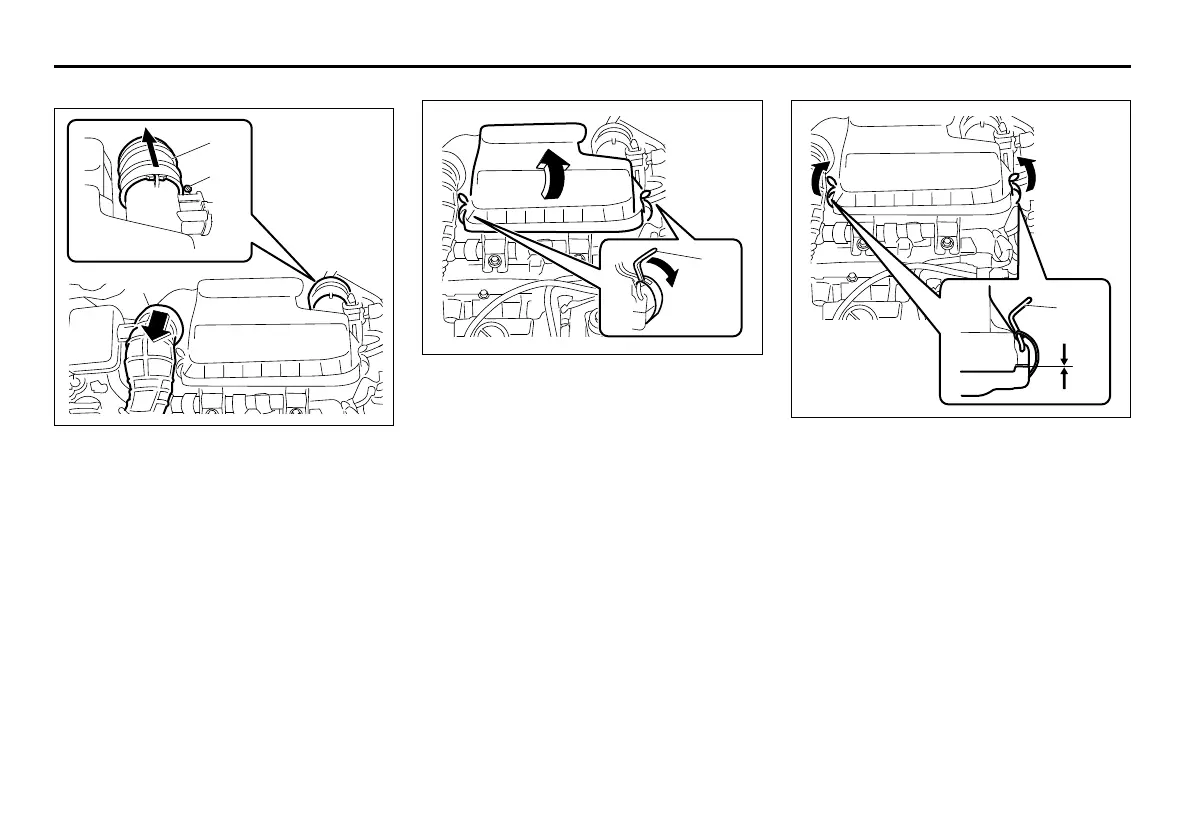

1) Remove the hose (1). Loosen the hose
clamp (2) and pull the hose (3).
80SM146
2) Unclamp the side clamps (4) and pull
the air cleaner cap upward. Remove
the element from the air cleaner case. If
it appears to be dirty, replace it with a
new one.
80SM147
3) Reinstall the air cleaner cap and clamp
the side clamps (4) securely.
NOTE:
Make sure that the air cleaner cap is
securely installed without any gap between
the air cleaner cap and the air cleaner
case.
(2)
(3)
(1)
(4)
To Next Page
