5.8.1 Machine Service
This function is to check wrong machine settings and help create right settings.

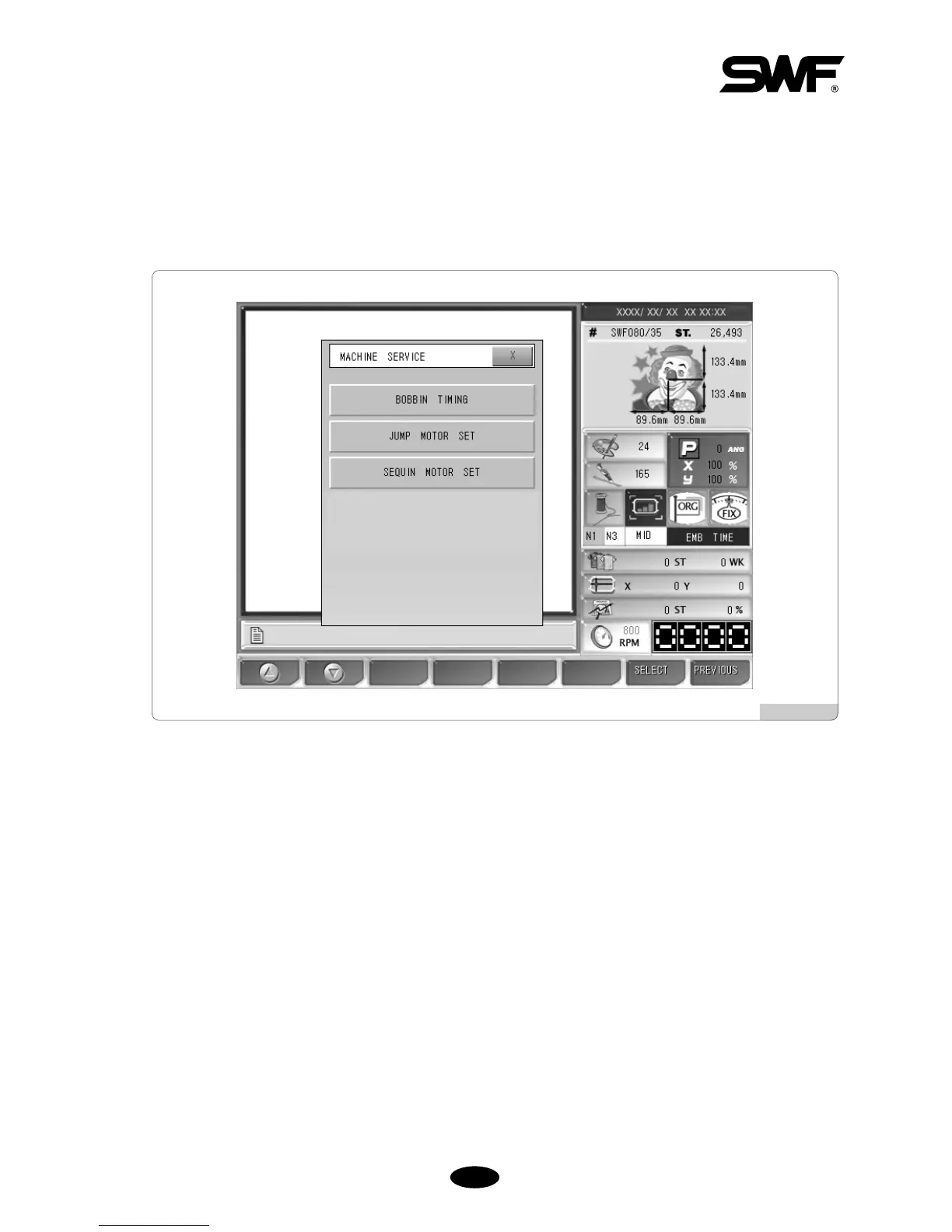

When the machine service menu is selected on <Fig. 5.8.0-1>, <Fig. 5.8.1-1> appears
Bobbin Timing
It helps set the hook.
Jump Motor Set
When the Jump Motor Set is selected, and then embroidery start button is pressed, the jump motor shall not
move. If there is any jump motor motion, the setting is wrong, and the re-setting is required. After conducting
the re-setting, press Jump Motor Set and then embroidery start button to check whether the jump motor moves.
Sequin Motor Set
The sequin device should be selected on the sequin device setting and the option setting to enable the sequin
motor set. This function is used to assemble the machine first. Press the sequin motor set button and then the
embroidery start button. Then the motor will pause for five seconds at the designated position, and during the
pause, the screw should be fastened.
[Fig. 5.8.1-1]
To Next Page
