6.5
Frame
This function is to remember the position of the frame when embroidery work is stopped in the middle of
embroidery work (stop switch, thread break sensing, etc.), and make the frame move to the last position when the
frame moves to other positions or when the power is turned off.

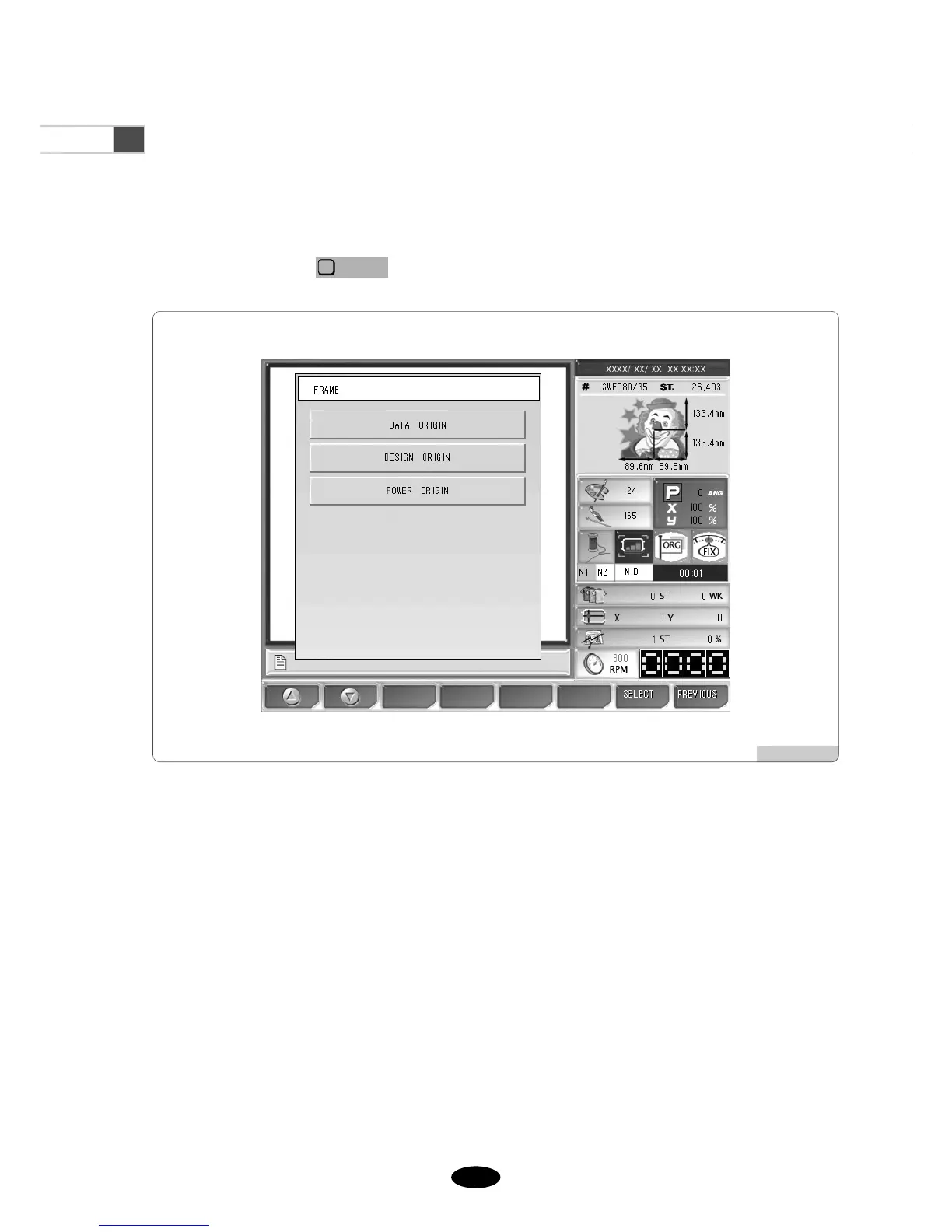

<Fig. 6.5-1> appears when is pressed and the frame move button is pressed.
① Data Origin
It remembers the stop position of the frame when it is paused during embroidery work. Therefore, when the user
desires to move the frame by using the frame move buttons or resumes embroidery after conducting other jobs,
the frame could return to the last stop position.
② Design Origin
It makes the frame return to the embroidery starting position.
③ Power Origin
It remembers the last stop position although the power is out during embroidery work. Therefore, when the
power is on, and the return to origin after blackout function is pressed, the frame moves to the last stop position.
However, before embroidery work starts, the frame origin shall be accurately set.
Press the desired function buttons, and then the frame automatically returns to the desired position.
[Fig. 6.5-1]
