4. FUEL SYSTEM SYM
4-6

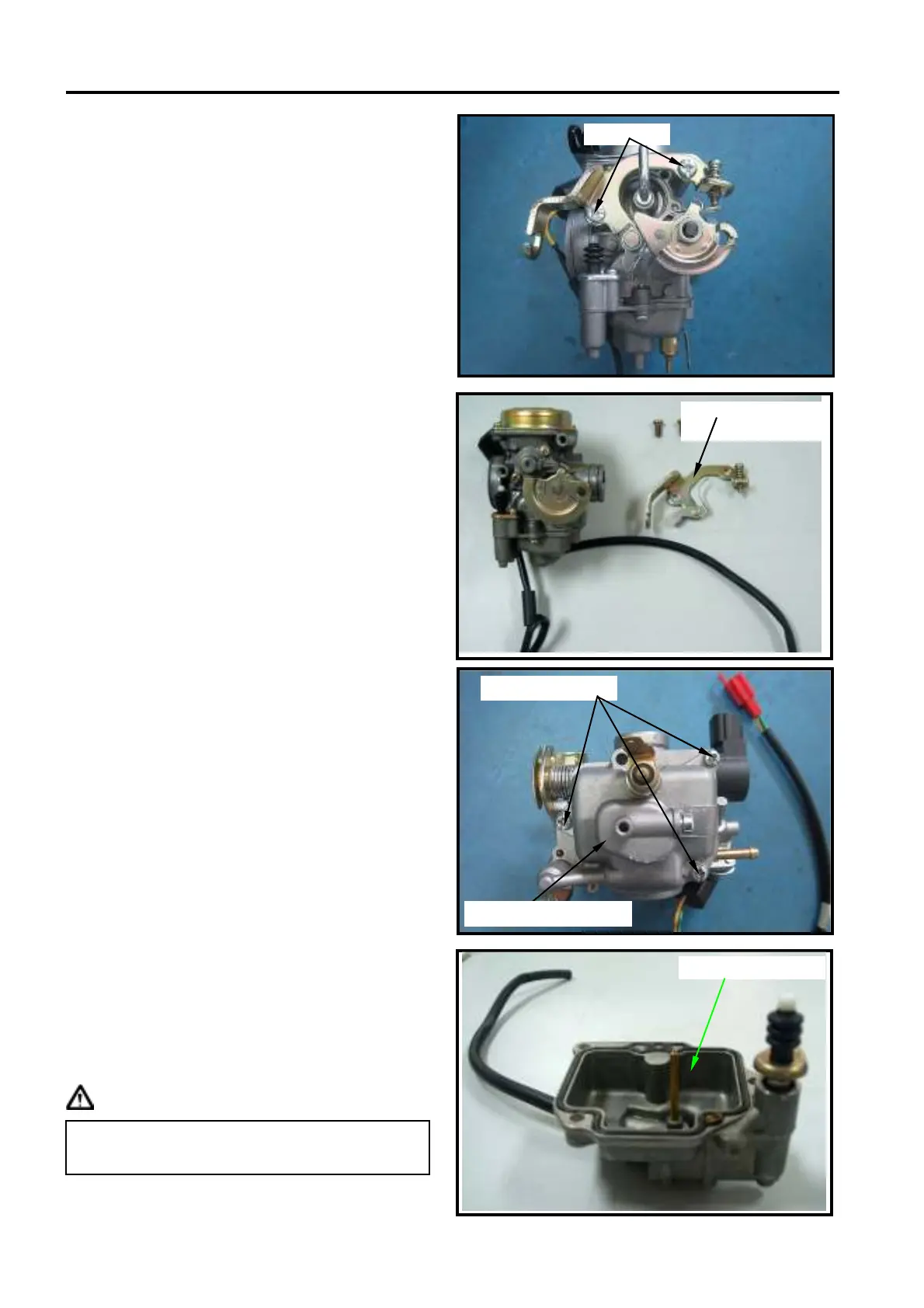

ACCELERATE PUMP
Removal
Loosen the fixing screws from carburetor.
Remove the accelerate pump drive arm from
the carburetor.
Remove 3 mounting screws and remove the
float chamber cover.
Remove 3 mounting screws and remove the
float chamber cover.
Installation
Install the valve as reverse order of removal.
Cautions
Do not damage the vacuum diaphragm or
in opposite installation direction.
Screw
s
×
2
Accelerate pump
drive arm
Mounting screws
Float chamber cover
Float chamber cove
