Sym Fiddle III 50 Service Manual

5. REMOVAL OF ENGINE SYM
5-8
INSTALLATION OF ENGINE
Check if the bushings of engine suspension
frame and shock absorber for damaged. If so,
replace with new ones.
Install the engine according to the reversing
order of removal.
Caution
Engine suspension nut:
Torque Value: 4.5~5.5kgf-m
Rear shock absorber bolt:
Torque Value: Top: 3.5~4.5kgf-m
lower: 2.4~3.0kgf-m
Rear wheel axle nut:
Torque Value: 11.0~13.0kgf-m
 Notice both feet and hands safety for
squeezing as engine installation.
 Do not bent or squeeze each wires or
hose.
 Route all cables and wires in accordance
with the routine layout.

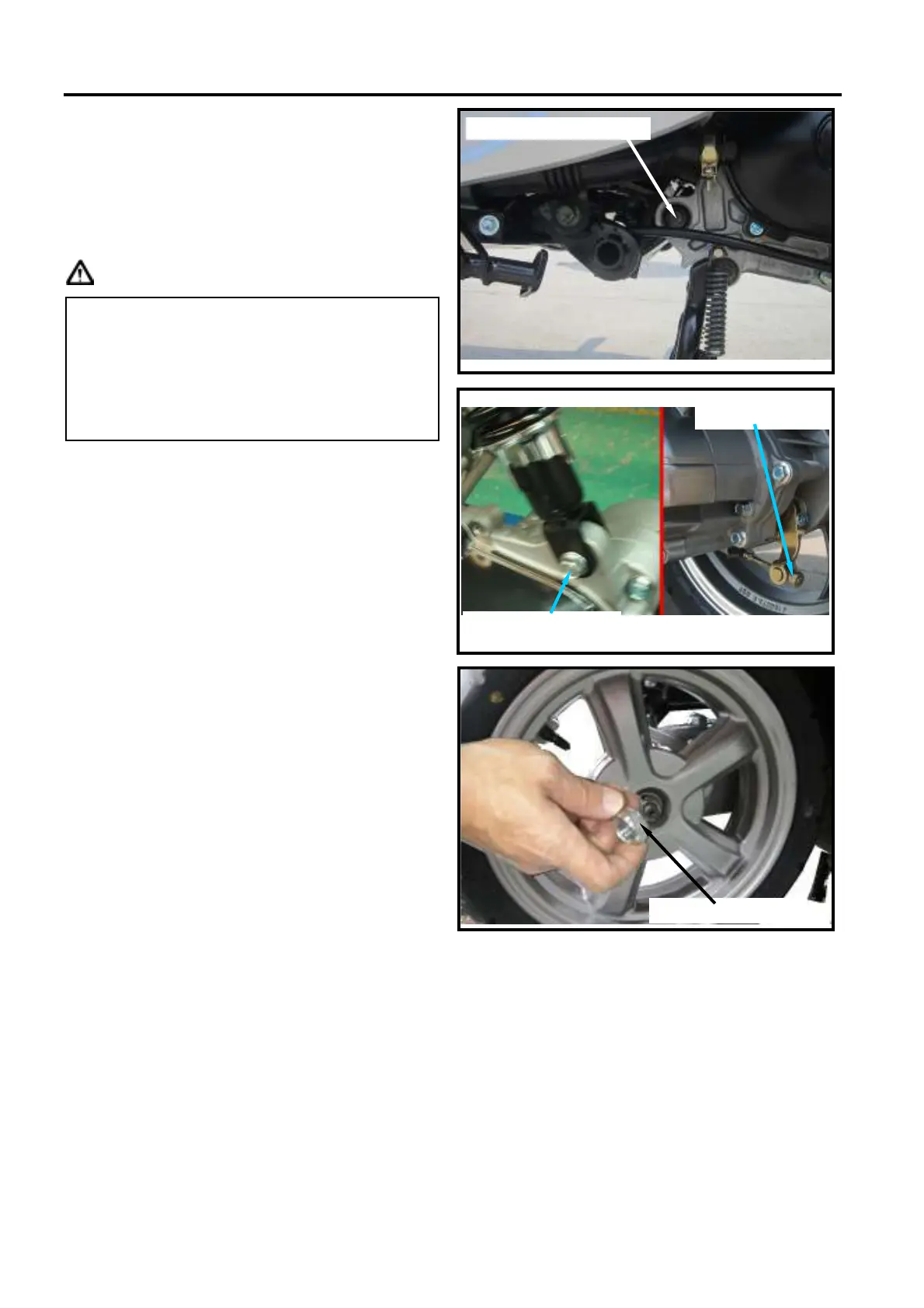

Rear shock
absorber
lower
bolt
Brake cable nut
Rear wheel axle nut×
××
×1
Engine suspension nut×
××
×1
