Sym Fiddle III 50 Service Manual

6. CYLINDER HEAD/VALVE SYM
6-4

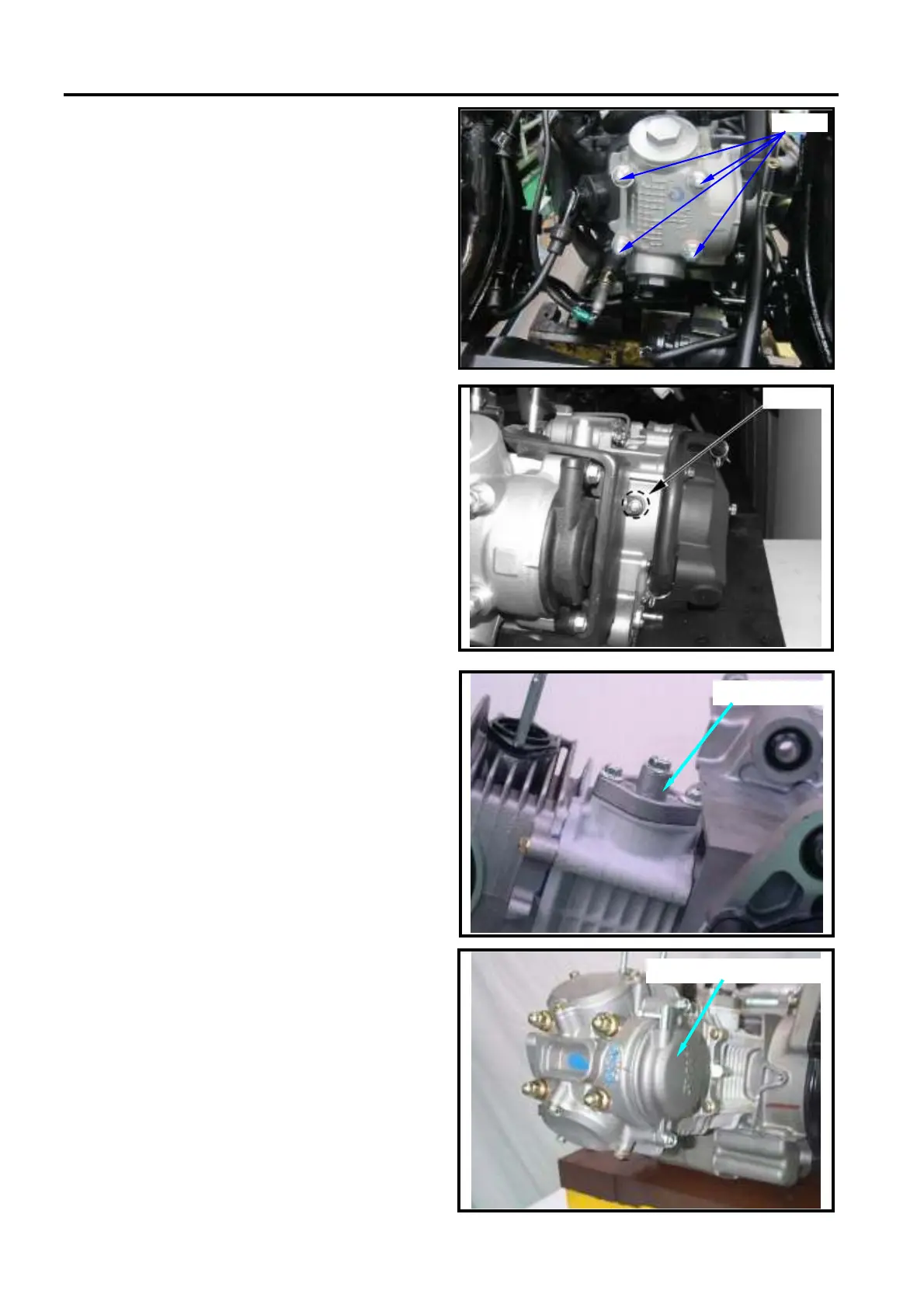

CYLINDER HEAD REMOVAL
Remove the engine from the vehicle (Refer
to chapter 5).
Remove the shroud of the engine.
Remove the crankcase blow-by system hose
from the cylinder head.
Remove the cylinder head cover 4 bolts and
then remove the cylinder head cover.
Loosen the bolt of camshaft chain adjuster in
a counter-clockwise motion for release
adjuster.
.
Removed cam chain adjustment bolt. And
then removed the chain adjuster (bolts × 2)
Removed cylinder head side cover.
4
bolts
bolts
Chain adjuster
Cylinder head side cover
