SYM 8. V-BELT DRIVING SYSTEM/KICK STARTER ARM/STARTER CLUTCH
8-3

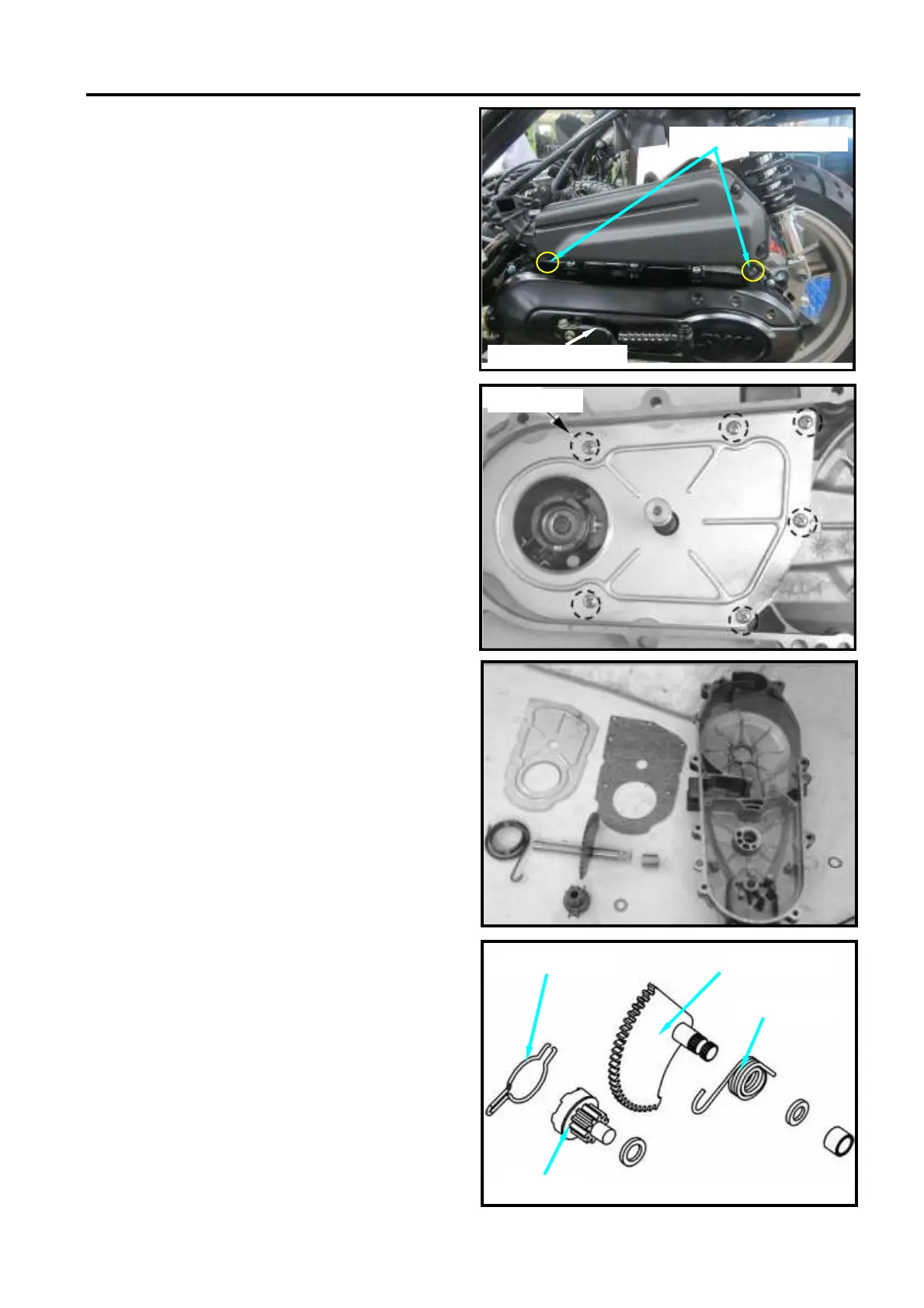

LEFT CRANKCASE COVER
Left crankcase cover removal
Remove air cleaner. (2 bolts)
Remove kick starter arm. (1 bolt)
Loosen vent strap on the front-left side of
cover, and then remove the vent.
Remove engine left-side cover (8 bolts).
KICK STARTER ARM
Disassembly
Remove left side cover plate on the left
crankcase cover(screws×6).
Remove left side cover plate gasket.
First put kick starter pedal into the starter
shaft. After a little rotation, remove the drive
gear and washer.
Removed kick starter pedal, starter shaft,
return spring and the thrust washer.
Check if starter shaft, drive gear, bushing, for
wear or damage. Replace it with new one if
necessary.
Check the return spring for spring force or
damaged. Replace it with new one if poor
parts found.
air cleaner lock bolts
kick starter arm
Friction spring
drive gear
Starter shaft
return spring
Screws×6
