SYM 14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER
14-3

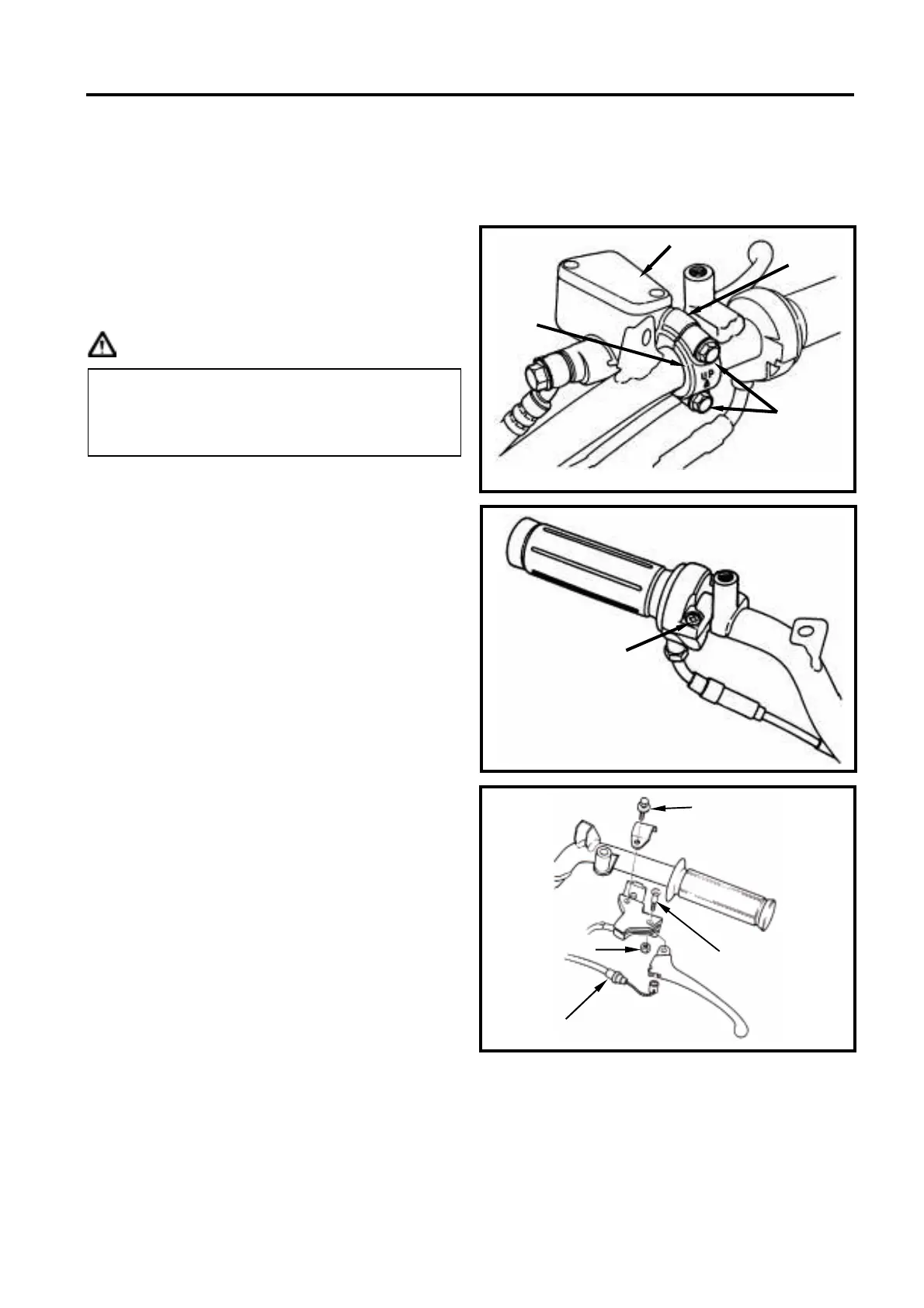

STEERING HANDLE
REMOVAL
Remove handle front & rear covers and the
front cover (refer to chapter 12).
Disc Brake
Remove the 2 bolts of the brake master
cylinder, and then take out the master
cylinder and the split ring.
Caution
Remove acceleration handlebar screw and
then remove the handlebar, acceleration
cable, and handlebar cover & seat.
Remove the rear brake lever nut and screw,
then take out the rear brake cable.
Remove the brake lever seat bolt, and then
remove the seat.
Do not operate the front brake lever to avoid
to pressing out the brake lining when
removing the master cylinder.
Screw
Bolts x 2
ring
Seat
Brake lever seat bolt
Brake lever screw
Brake lever nut
