Sym Fiddle III 50 Service Manual

SYM 16. ELECTRICAL EQUIPMENT
16-15

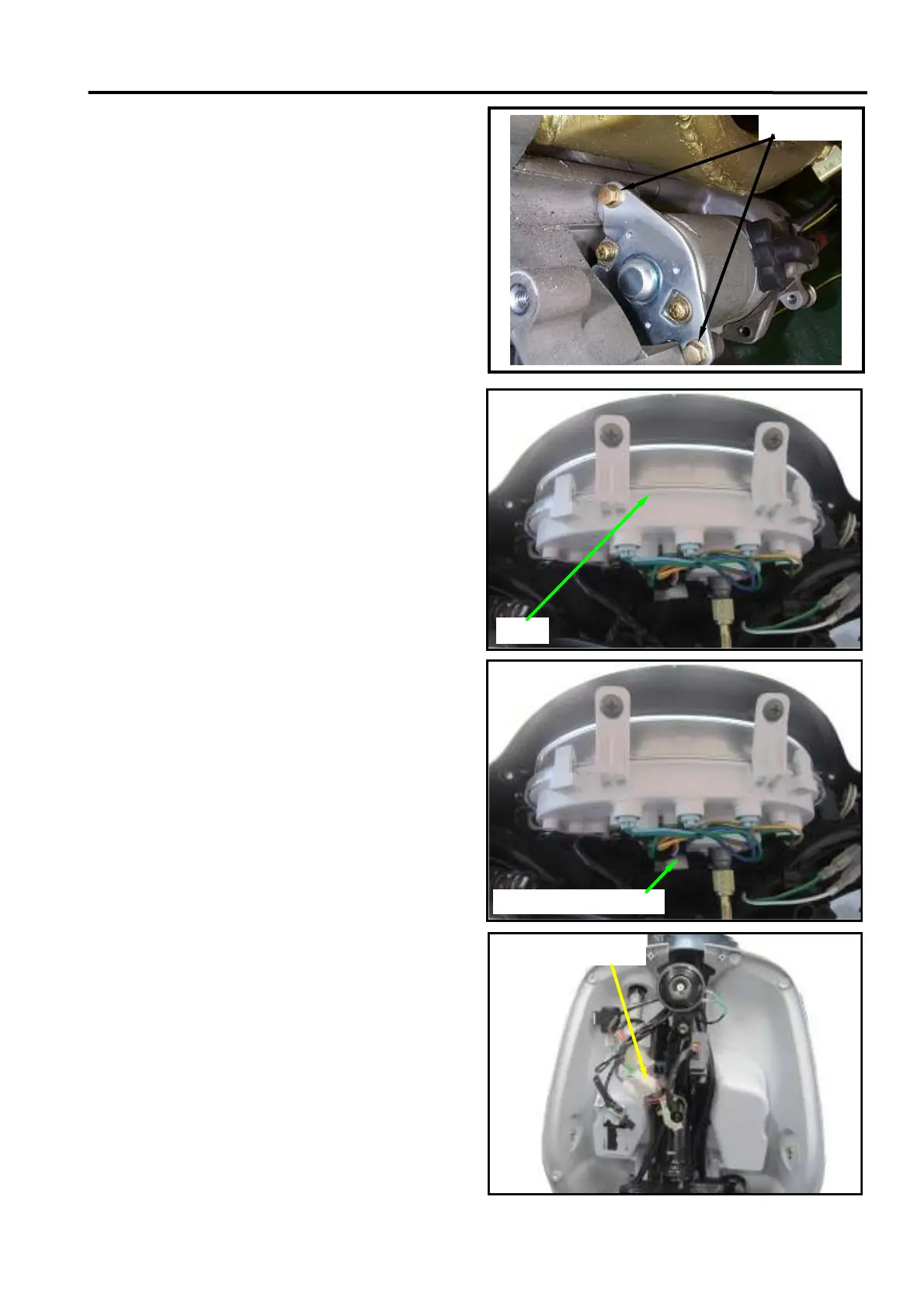

Starting Motor Removal
Remove the battery cover.
Firstly, remove the battery negative (-)
terminal, and then remove the positive (+)
terminal.
Remove the luggage box.
Remove the starting motor power wire.
Remove the starting motor mounting bolts
and motor.
Starting Motor Installation
Install the motor in reverse order of removal.
METER
Removal
Remove the front handle cover.
Remove the speedometer cable.
Remove the front cover.
Remove the power connector of the meter.
Bolts x2
Meter connector
Meter
speedometer cable
