31
Brew Tank
Drain Tube
HYDRA
ULIC SY
STEM

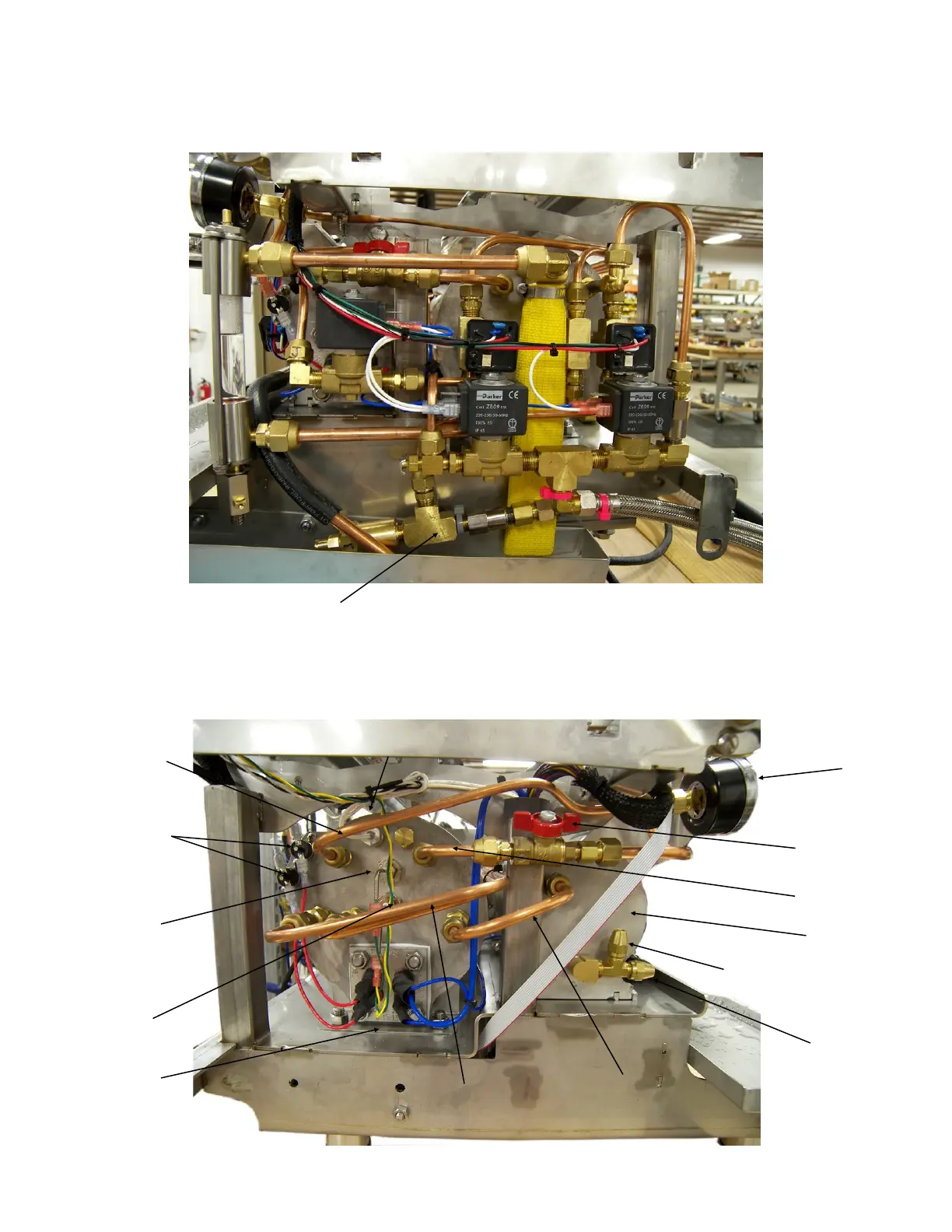

MAJOR COMP
ONENTS O
F THE W
A
TER INLET S
YSTEM (
LEFT SIDE)
Steam Gauge
Tube
Thermal Over-
load Switches
for Steam Tank
Water Level
Probe (Upper)
Low Water
Alarm Probe
Steam Tank
Heang
Element
MVP or MVP Hydra
Temperature Probe
Steam
Gauge
Brew Tank
1st Posion Brew
Tank Fill Tube
Steam Shut
O Valve
Steam Tube
MVP 3 Group, Water Inlet (Right Side)
MVP Brew Group Inlet Assembly, Single Expansion Valve
2nd Posion Brew
Tank Fill Tube
(Pressure gauge tube
MVP Hydra only)
30
32
Table of Contents
Table of Contents
2
Access Menu Level
2
Introduction
3
Safety Warnings
4
List of Tools and Supplies
6
Start up Screen, Serial #, Software Ver
6
Warranty & Water Standards
7
Plumbing Requirements
9
Electrical Requirements
10
Installation
11
Model Specific Installation
13
Side Panel Removal
16
Start up
17
Stage Pressure Ramping Setup
19
Operation
20
Hydraulic System
25
Hydraulic System Diagrams
28
Pump Motor
28
Water Inlet (Right Side)
29
Water Inlet (Left Side)
31
Electrical System
33
Main Electronics Board Diagram
34
Electrical Box
35
Hall Effect Board Replacement
37
Electrical System Diagram
38
Programming - Handheld Controller
39
Menu Level 1 - Operations
39
Factory Settings
40
Brew Temperature & Brew Settings
40
Steam Temperature Control
41
Hot Water Tap
41
Auto Backflushing Machine
42
Error Codes
43
Error Troubleshooting Flow Charts
44
Menu Level 2 - Settings
51
Save Lockout
51
Programs, Activate/Deactivate
51
Temperature, Fahrenheit & Celsius
52
Line Pressure Boost System
52
Brew & Steam Offsets
53
System Clock
55
Heating Elements, Activate/Deactivate
55
Power Save Mode
56
Error Log
57
Return to Operations (Level 1 Menu)
58
Menu Level 3: Configuration
59
Access Menu Level
59
Machine Configuration
59
Return to Operation or Settings Menu
60
Display Brightness
60
Peak Current Limit
61
Factory Diagnostics
61
PID Tune
62
Full Reset
62
Firmware Updates
63
Maintenance
64
Daily Cleaning
64
Maintenance Schedule
65
Quarterly Preventative Maintenance
66
Annual Preventative Maintenance Sheet
67
Pressure Relief Valve Maintenance
68
Flowmeter Calibration Instructions
69
How Hot Is Your Shot (Brewing Temp)
70
How to Adjust Offsets
71
Troubleshooting Guide
72
