CONTROLS
SEAT AND SEAT BELT
SEAT AND SEAT BELT
SEAT
• Adjust and secure the seat.
• Do not make any adjustments while
operating the machine.
• Remember that the backrest returns to
the forward position abruptly due to the
spring force.

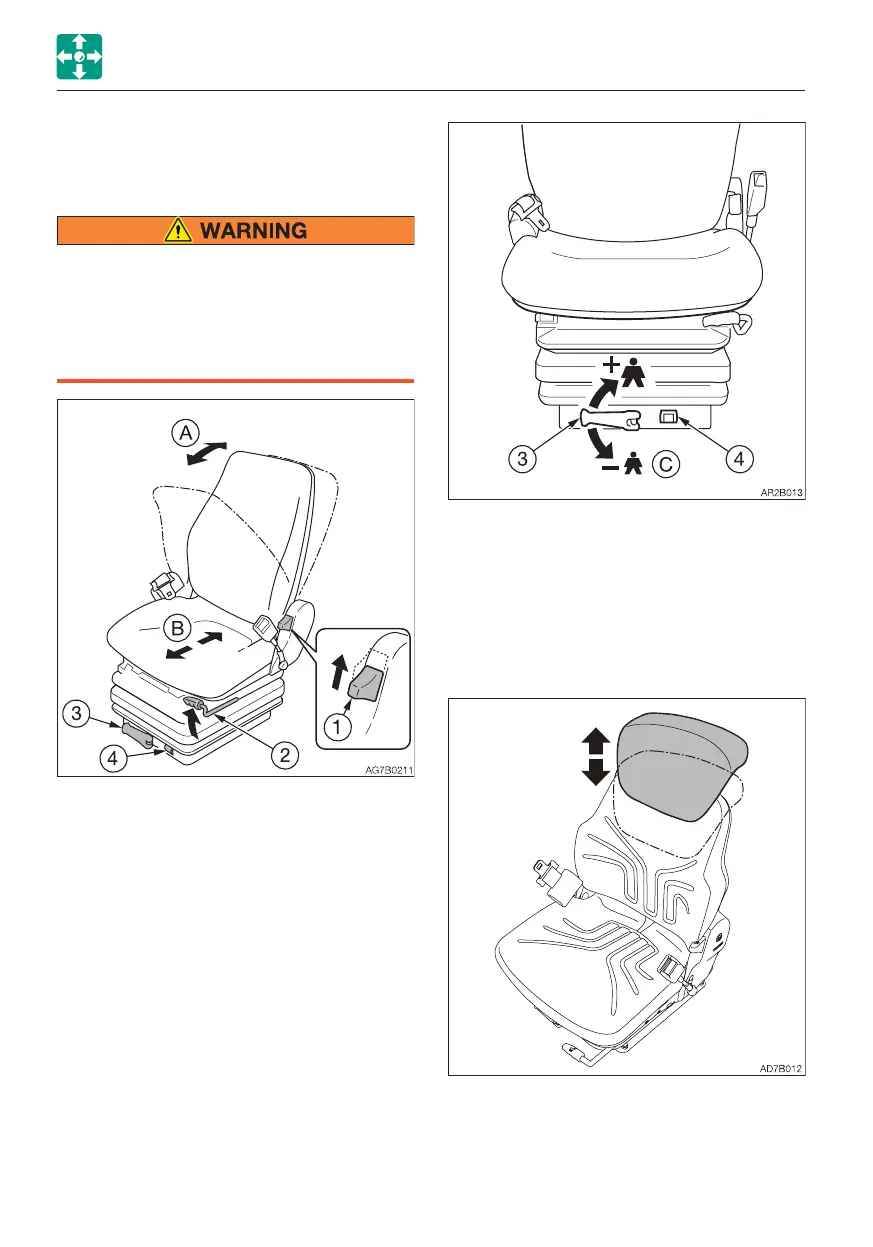

(A) Adjusting the backrest
1. Sit up and sit back in the seat.
2. Pull up the lever (1), recline the backrest
by using the spring force. Release the
lever (1) at the desired angle to secure the
backrest.
(B) Fore-and-aft adjustment
1. Pull up the lever (2) and slide the seat
backward or forward to the desired
position for operation of machine.
2. Release the lever (2) at the desired
position to secure the seat.
Adjustment range: 15 positions, in 150
mm (5.9 in.)
(C) Adjusting according to operator’s
weight
1. Turn the handle (3) until the scale (4)
indicates the weight of operator.
Adjustment range: 50 to 130 kg (110 to
287 lbs)
Adjustable backrest
The height of the backrest can be adjusted.
