Takeuchi TB225 User Manual

2-19
CONTROLS

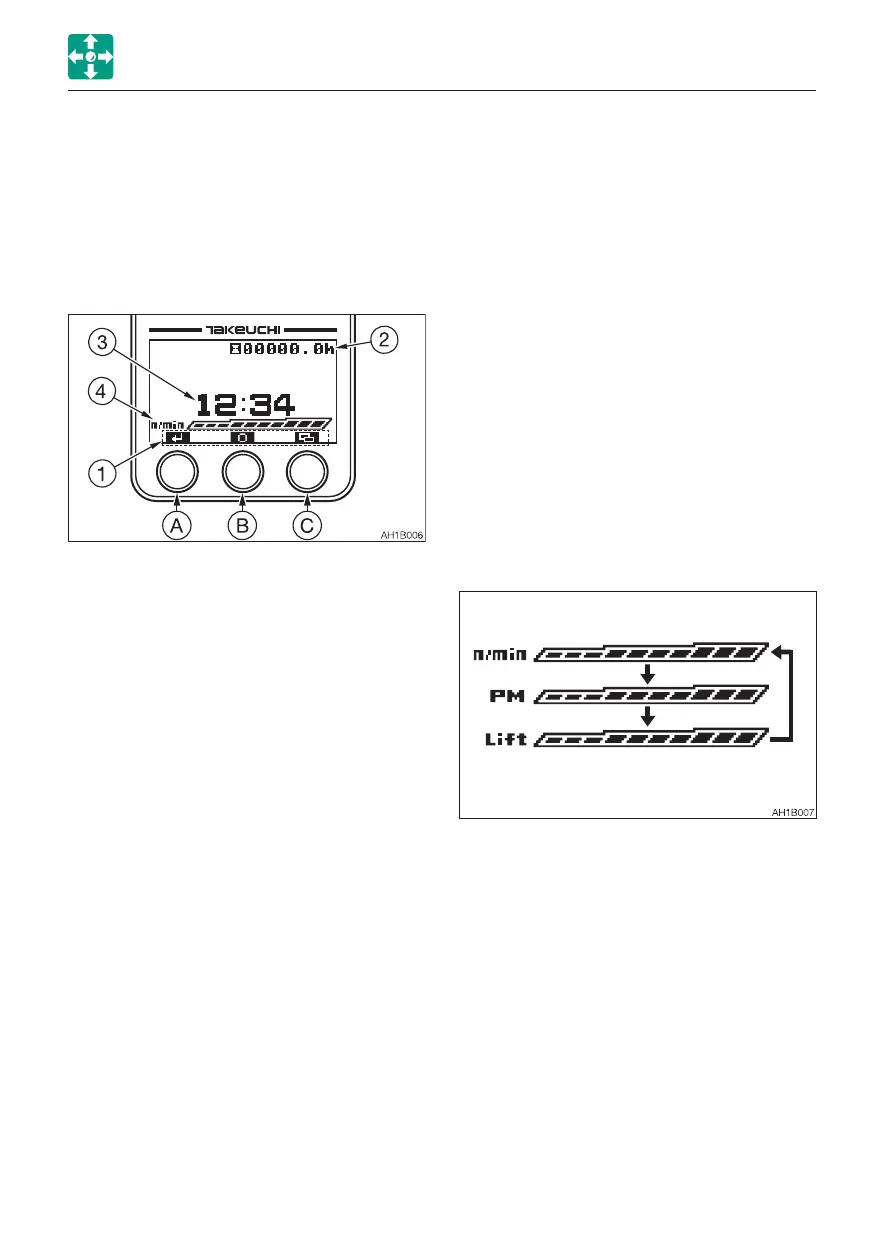

INSTRUMENT CLUSTER
2. Hour meter/Trip meter
• Hour meter
Displays the total engine running time in
hours.
The rightmost digit indicates tenths of
hours (6 minutes).
Set the inspection and maintenance
intervals according to the time displayed
on the hour meter.
• Trip meter
Three patterns of desired operating hours
can be displayed.
Refer to “B. Meter switching” on page
2-23.
3. Time display
Displays the time set.
Refer to “Time setting” on page 2-26.
4. Engine RPM
MULTI-DATA DISPLAY
13. LCD (Liquid Crystal Display)
It displays various functions and data on
hour meter, trip meter, clock, engine
RPM and the machine.
Home screen
1. Key function display
The key function display changes
depending on the screens (Home, Menu
and each setting)
For actual operation, use the buttons, “A”,
“B” and “C”, located beneath each
symbol.
Refer to “Function of each key” on pages
2-23 to 2-36.
Displays the engine RPM in 10 levels.
Pressing the (B) key while the engine RPM is
displayed changes to the display of the PM
accumulation rate and lift load factor, in this
order.
• The throttle opening position is displayed if
the lift alarm switch is turned on and there
is no change in the throttle opening
position.
• For TB225, the PM accumulation rate does
not change.
