CONTROLS
AUXILIARY 2ND/4TH SWITCH
(IF EQUIPPED)

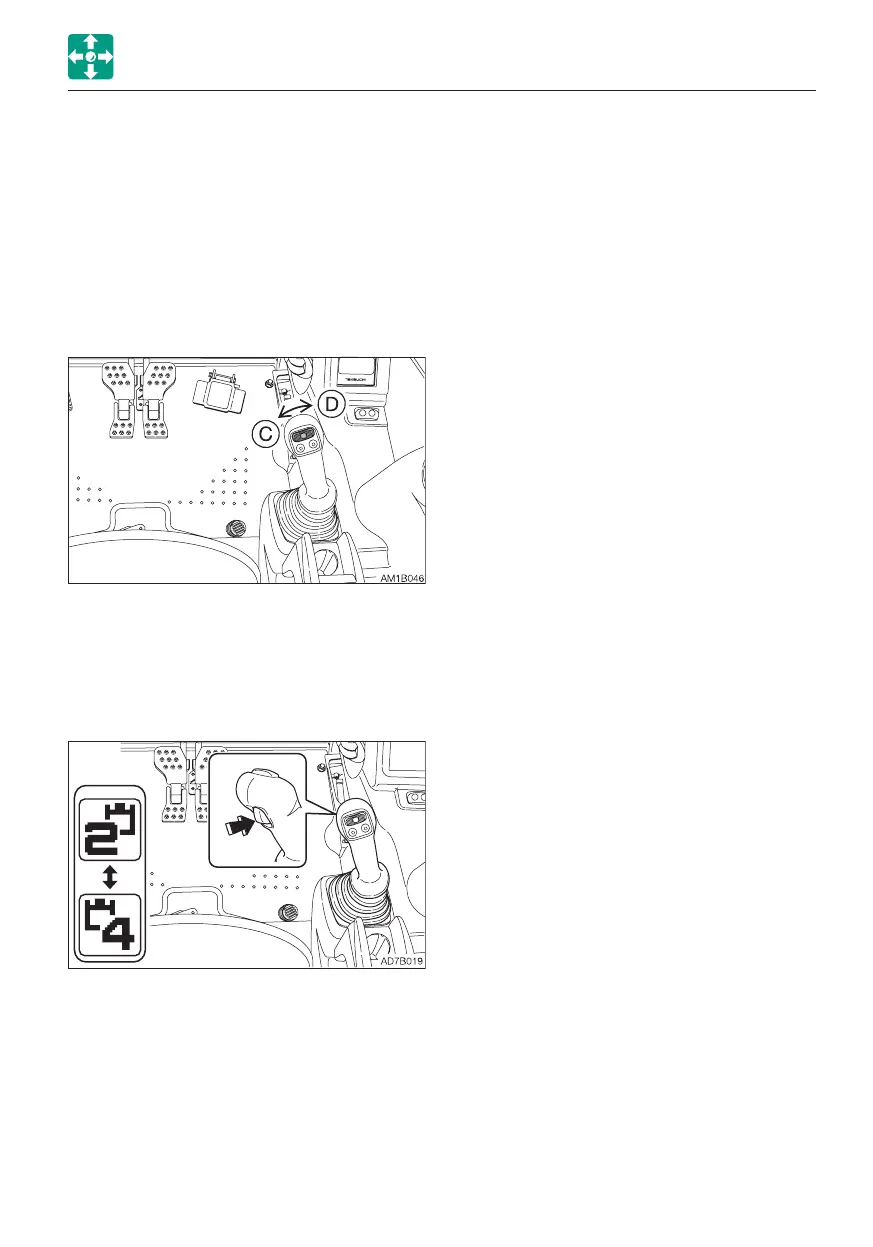

Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the second auxiliary hydraulic lines.
(C): .....Hydraulic oil flows to the left auxiliary
line (c).
(D): .....Hydraulic oil flows to the right auxiliary
line (d).
To use the auxiliary 4th hydraulic line, press
the auxiliary 2/4 select button to change to
the operation of the auxiliary 4th.
Refer to “Auxiliary hydraulic lines (If
equipped)” on page 2-66 to 2-71.
SWITCHES
THIRD AUXILIARY HYDRAULIC SWITCH
AND BUTTON (IF EQUIPPED)
Refer to “Third auxiliary hydraulic switch and
button (If equipped)” on page 2-69.
AUXILIARY 2/4 SELECT BUTTON
(IF EQUIPPED)
Refer to “Auxiliary 2/4 select button (If
equipped)” on page 2-70.
THIRD AUXILIARY HARD-LOCK SWITCH
(IF EQUIPPED)
Refer to “Third auxiliary hard-lock switch (if
equipped)” on page 2-70.
