Taski swingo 1255B User Manual

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-3
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.1.2 Replacing of hall sensor board

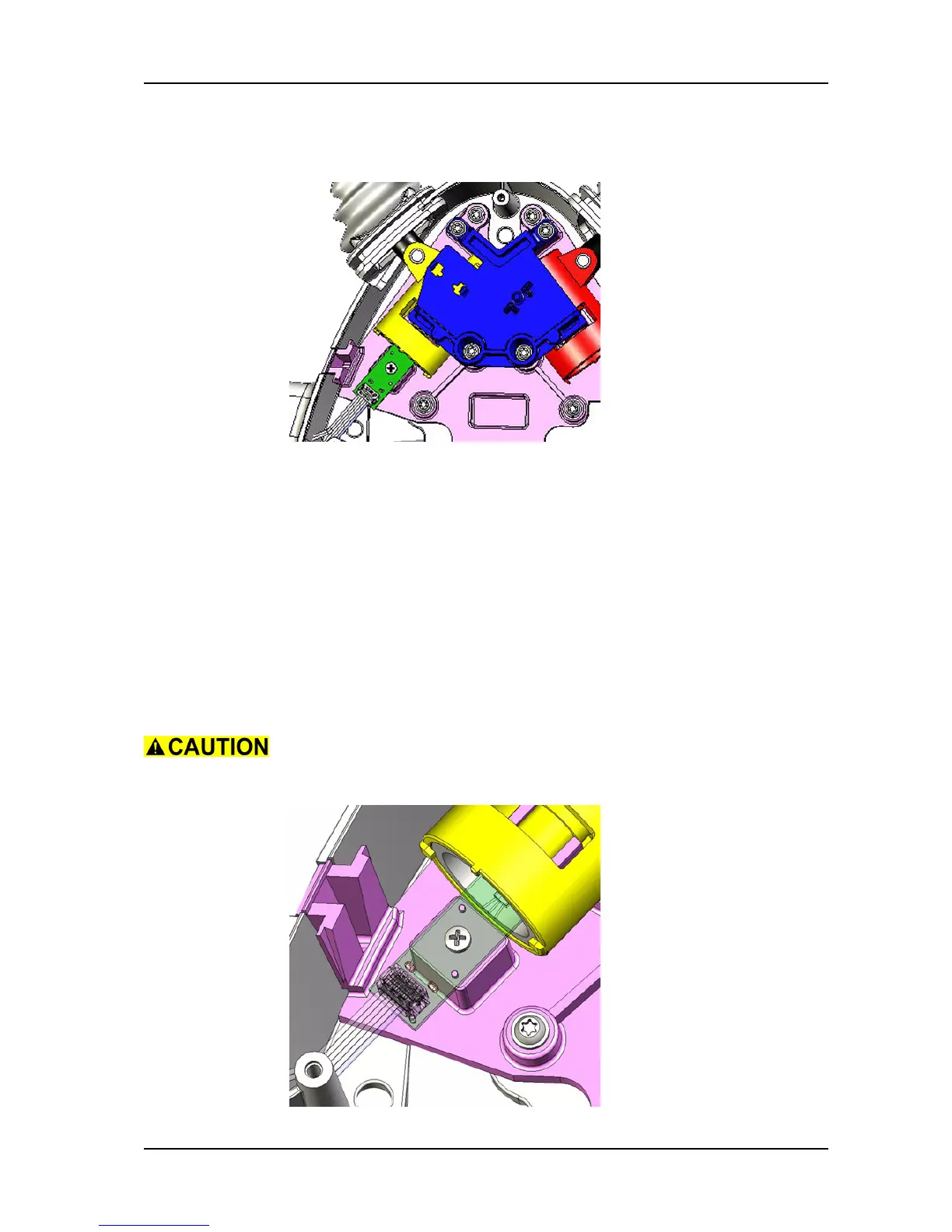

Picture 2: Throttle hall sensor
Remove
• Remove microswitch according to chapter REPLACING OF
MICROSWITCH.
• Remove the 5 screws of the dashboard.
• Remove dashboard.
• Disconnect hall sensor compl. ribbon cable from dashboard.
• Thread out hall sensor compl. ribbon cable.
• Unscrew mechanic hall sensor compl. fixation.
• Remove mechanic hall sensor compl.
Mount
• Build in mechanic hall sensor compl.
Make sure that the mechanic hall sensor compl. is placed correctly
on the pins of the support before tightening the screw.
