Taski swingo 1255B User Manual

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-26
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.6.2 Replacing of pusher rack

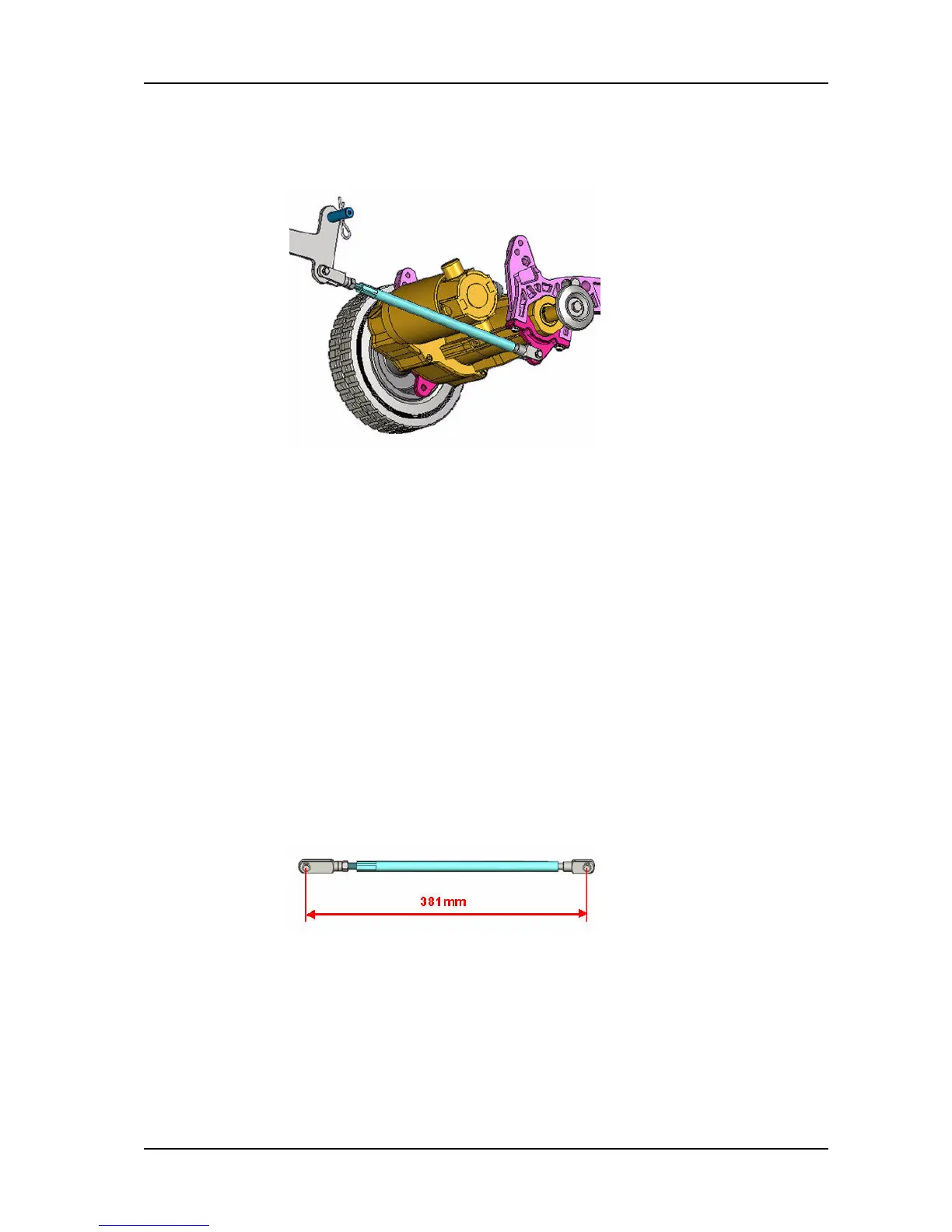

Picture 27: Pusher rack
Remove
• Lay the machine on the LH side.
• Remove the retaining ring (06/120) of the axle (06/119) on
the foot lever side.
• Remove the axle (06/119) on the foot lever side.
• Remove the retaining ring (06/120) of the axle (06/119) on
the traction unit side.
• Remove the axle (06/119) on the traction unit side.
• Remove the pusher rack.
Mount
• Position the pusher rack.
Adjustment
Make sure that the pusher rack (06/106) is adjusted to the distance
of 381mm.
Picture 28: Pusher rack distance
• Position the axle into the pusher rack on the traction unit side.
• Mount the retaining ring.
• Position the axle into the pusher rack on the foot lever side.
• Mount the retaining ring.
• Lift up the machine.
