GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-11
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.2 Squeegee lowering mechanism
5.1.2.1 Replacing of squeegee bracket spring

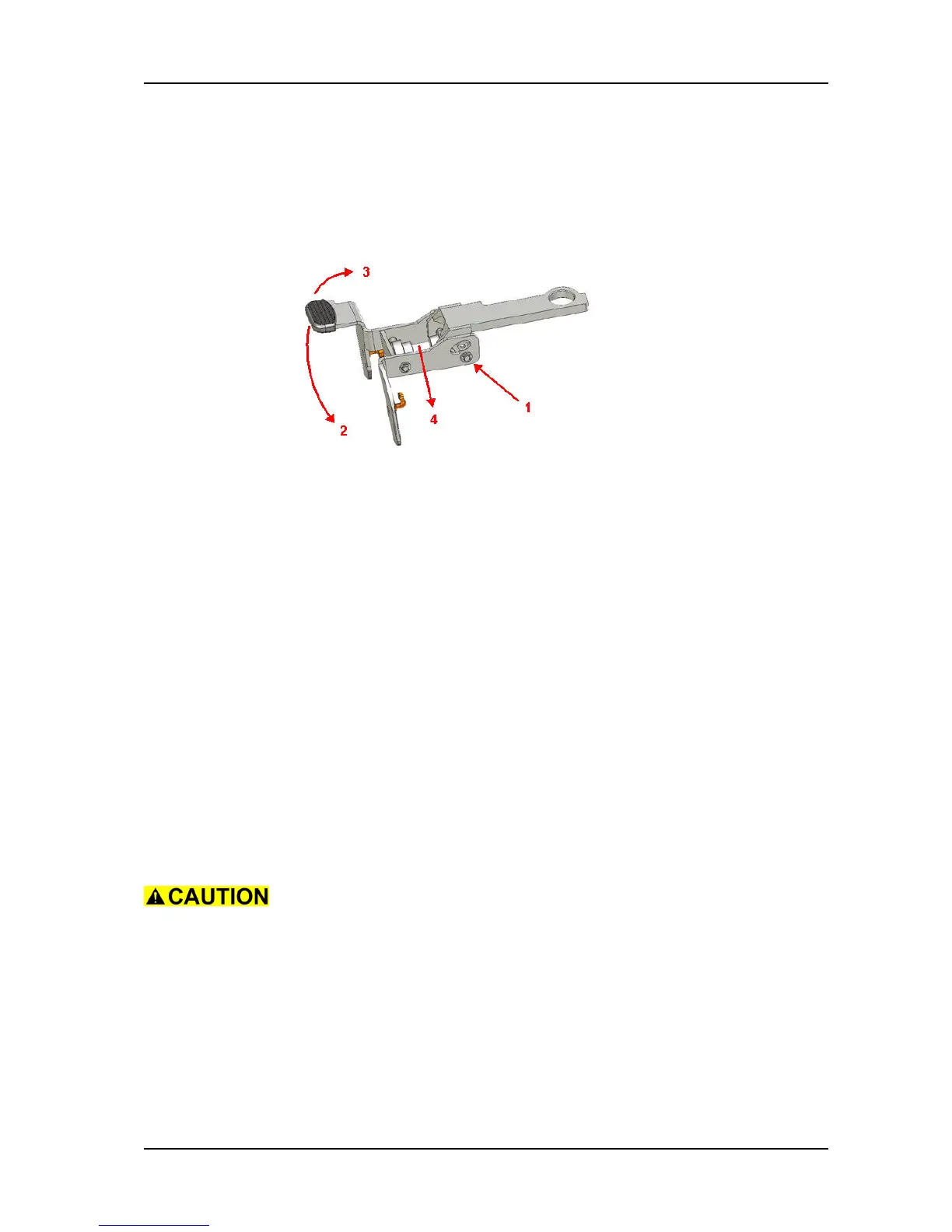

Picture 9: Squeegee lowering
Remove
• Remove the squeegee from the fixation.
1 Remove one circlip of rear axle.
2 Press down the swinging arm (02/111) to release tension on
axle and remove it.
3 Put the swinging arm in transport position (all the way up to
the chassis).
4 Remove pressure spring by pulling it out.
Mount
• Put the swinging arm all the way up to the chassis.
• Mount the new pressure spring.
Remarks
Thread spring into the upper bolt (02/104) first and then push it all
the way in.
• Press down the swinging arm and assemble the rear axle.
Ensure that the slide bearings are properly positioned.
• Position the circlip on the rear axle.
