Taski swingo 1255B User Manual

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-12
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.2.2 Replacing of swinging arm long

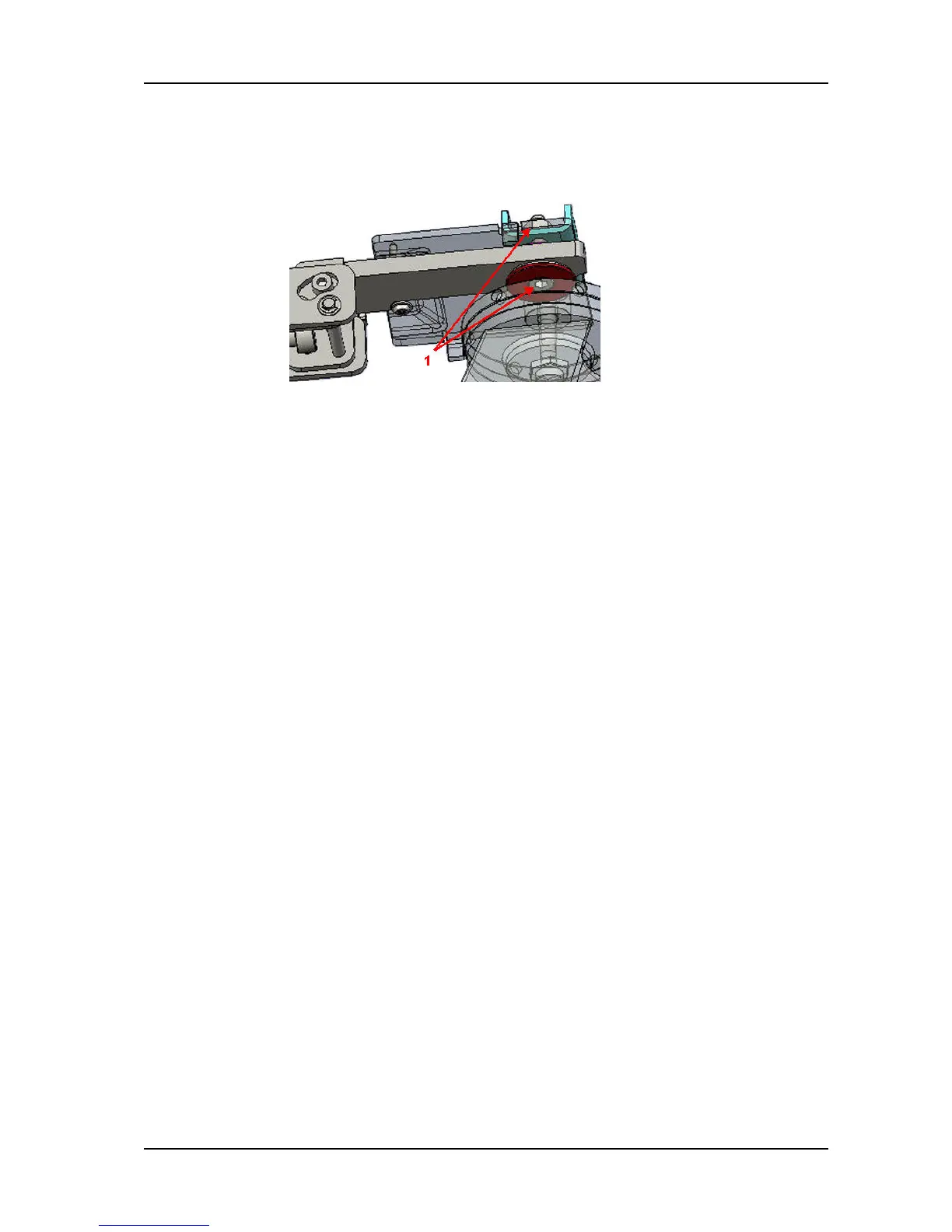

Picture 10: Swinging arm long
Remove
• Remove castor wheel according to chapter REPLACING OF
CASTOR WHEEL.
1 Loosen the fixation screw (02/107) with 8mm Allen key and
17mm fork spanner/nut.
• Remove complete swinging arm long.
Mount
• Assemble the complete swinging arm long.
• Tighten the fixation screw.
• Assemble the castor wheel according to chapter REPLACING
OF CASTER WHEEL.
Adjustment
Make sure that the reinforcement plate (04/103) is positioned
correctly, so the hexagon screw (04/102) for the castor wheel fits
nicely.
Tighten the screw with 60 Nm.
Service
Apply gear/bearing lubricant on the slide bearing (02/108).
